Galvanized Strut Systems

Galvanized modular channel systems for the installation of pipe supports, ventilation ducts and cable trays. Designed specifically for greater flexibility and ease-of-use

Galvanized modular channel systems for the installation of pipe supports, ventilation ducts and cable trays. Designed specifically for greater flexibility and ease-of-use
MM-C-16 Galvanized 16 mm high MM strut channel for light-duty applications
MM-C-30 Galvanized 30 mm high MM strut channel for light-duty applications
MM-C-36 Galvanized 36 mm high MM strut channel for light- to medium-duty applications
MM-S Galvanized pipe clamp saddle for connecting threaded components to MM strut channels
MM-ST Galvanized preassembled pipe clamp saddle for quick connection to MM strut channels
MM-WN Galvanized wing nut for connecting modular support system components to MM strut channels
MM-A-90 Galvanized 90-degree preassembled angle for connecting multiple MM strut channels
MM-AH-90 Galvanized 90-degree angle for connecting multiple MM strut channels
MM-R-16-36 Galvanized channel foot for fastening MM channels to various base materials
MM-T-16-36 Galvanized beam clamp for connecting MM strut channels directly to steel beams
MQ-21 Galvanized 21 mm high MQ strut channel for light-duty applications

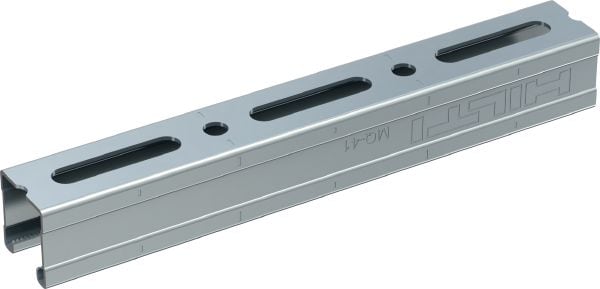

MQ-41 Galvanized 41 mm high MQ strut channel for medium-duty applications
MQ-41-L Galvanized 41 mm high MQ strut channel for medium-duty applications
MQ-41 D Galvanized MQ installation double channel for medium-duty applications
MQ-41/3 Galvanized 41 mm high and 3 mm thick MQ strut channel for medium-duty applications
MQ-21 D Galvanized MQ installation double channel for medium-duty applications
MQ-52 Galvanized 52 mm high MQ strut channel for medium-duty applications
MQ-52-72 D Galvanized MQ installation double channel for medium/heavy-duty applications
MQ-72 Galvanized 72 mm high MQ strut channel for medium/heavy-duty applications
MQ-124X D Galvanized MQ installation double channel for medium/heavy-duty applications
MQ S Non-galvanized installation channels for medium-duty applications
MQK-21-L Galvanized bracket with a 21 mm, high single MQ strut channel for medium-duty indoor applications
MQK-21 D Galvanized double bracket for medium-duty indoor applications
MQK-41 Galvanized bracket with a 41 mm high, single MQ strut channel for medium-duty applications
MQK-41 D Galvanized double bracket for medium-duty applications
MQK-41/3 Galvanized bracket with a 41 mm high, 3 mm thick single MQ strut channel
MQK-41/4 Galvanized bracket with a 41 mm high, single MQ strut channel with a square baseplate for higher rigidity
MQK-72 Galvanized bracket with a 72 mm high, single MQ strut channel for medium-duty applications
MQK-SK Galvanized angle brace for brackets
MQN Galvanized channel connector for joining any elements with a butterfly opening

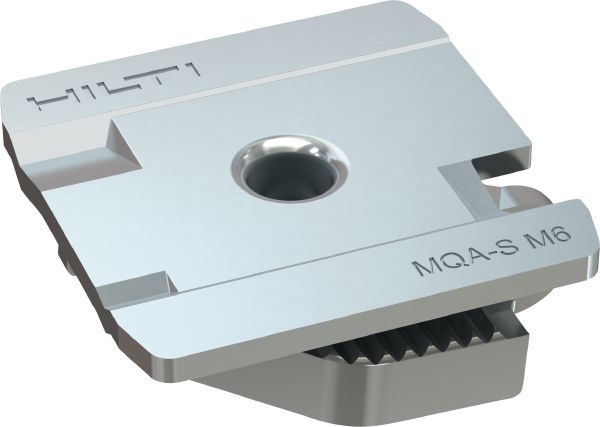

MQA-S Galvanized pipe clamp saddle for connecting threaded components to MQ/HS channels
MQA Galvanized pipe clamp saddle (imperial) with an adaptor for connecting threaded components to MQ strut channels
MQA Galvanized pipe clamp saddle for connecting threaded components to MQ strut channels
MQM Wing nut Galvanized wing nut for connecting modular support system components
HHK 41 Standard galvanized T-head bolt for connecting pipe clamps to MQ strut channels

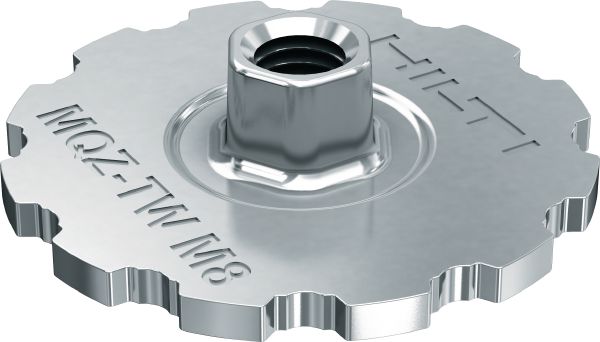

MQZ-TW Ultimate galvanized adjustable channel plate for trapeze applications
MQZ-L Galvanized bored plate for fire-tested trapeze assembly and anchoring
MQZ-P Galvanized channel plate for trapeze assembly and anchoring
MQG-2 Galvanized base plate for connecting threaded components to MQ strut channels

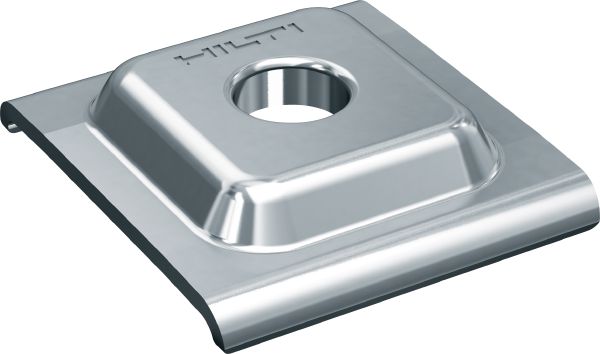

MQZ-U Galvanized installation washer for metric fastenings in butterfly holes
MQA-B Ultimate galvanized pipe clamp saddle – fire-tested according to ETA

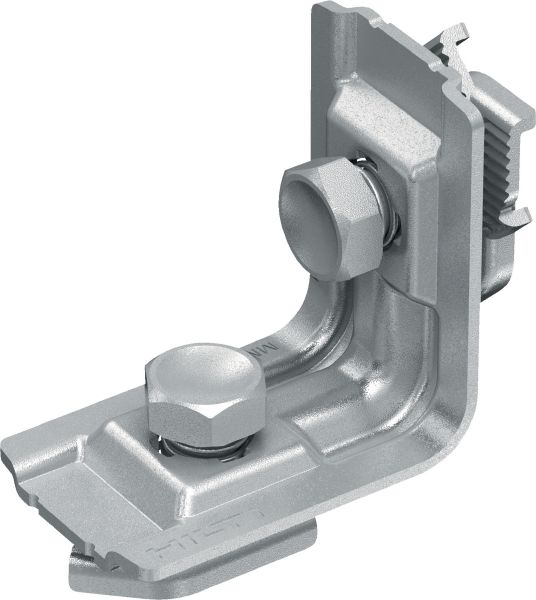

MQW-Q2 Galvanized 90-degree pre-assembled angle for connecting multiple MQ strut channels

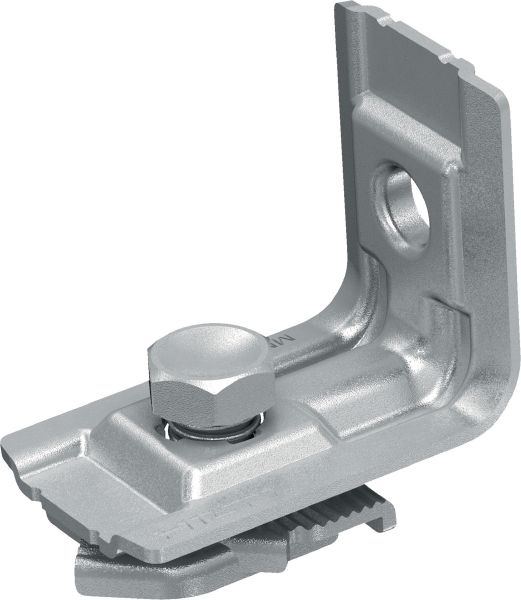

MQW-H2 Galvanized 90-degree angle bracket for connecting multiple MQ strut channels with high horizontal load capacity
MQW-8/90 Galvanized 90-degree angle for connecting multiple MQ strut channels
MQW-S Galvanized 90-degree heavy angle for connecting multiple MQ strut channels in medium/heavy-duty applications
MQV Galvanized channel connector used as a longitudinal extender for MQ strut channels
MQV-2/2 D Galvanized channel foot for fastening channels to concrete
MQP-1 Galvanized channel foot for fastening channels to concrete in light/medium-duty applications
MQP-2/1 Galvanized channel foot for fastening channels to various base materials
MQP-45 Galvanized channel foot for fastening channels to concrete at an angle
MQP-E Galvanized channel foot for fastening elevator doors
MQP-U Galvanized pivoting element for bracing modular support systems with threaded rod
MQT Galvanized beam clamp for connecting MQ strut channels directly to steel beams
MQT Clamping claw Clamping claw for fastening strut channels to steel beams without drilling or welding
MQT-K Galvanized beam clamp for connecting MQ strut channels within the flanges of steel beams
MQI-K Galvanized cross connector for crosswise mounting of channels with an integrated M12 connection for height adjustability
MQI-LV Galvanized connector for fastenings in a wide range of applications
MQP Galvanized pivoting element for fastening channels to most common base materials
MQ3D Galvanized elements for assembling 3D structures on site
MQZ Galvanized channel tie to create double channels
HGP Standard galvanized threaded plate for connecting threaded elements to MQ strut channels
MQW-P2 Galvanized 90-degree angle for connecting multiple MQ strut channels
MQP-124 Galvanized channel foot for fastening MQ channels to concrete
MQV-3/2 D Galvanized flexible channel connector for two-dimensional structures
MQP-82 Galvanized channel foot for fastening MQ channels to concrete
MQV-12 Galvanized flexible channel connector used as a longitudinal extender for MQ strut channels
MQV-P4 Galvanized flat channel connector used as a longitudinal extender for MQ channels
MQW-3/135 Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels
MQW-3/45 Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels
MQW-3 Galvanized 90-degree angle for connecting multiple MQ strut channels
MQV-4/3 D Galvanized channel connector for three-dimensional structures
MQW-2/45 Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels
MQW-8/45 Galvanized 45- or 135-degree angle for connecting multiple MQ strut channels
MQV-P5 Galvanized flat cross channel connector for fastening three MQ channels together
