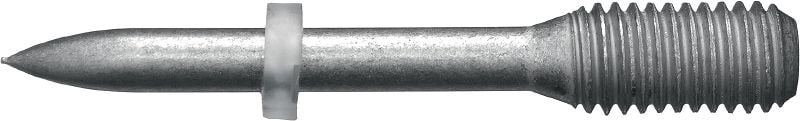

X-M8H P8 Threaded studs
Carbon steel threaded stud for use with the DX-Kwik pre-drilling technique and powder actuated nailers on concrete (8 mm washer)
- Base materials: Concrete (tough), Concrete (very tough), Concrete (soft)
- Corrosion protection: Galvanized zinc coated <20 µm
- Environmental Conditions: Dry indoor
Choose options
Thread size
- M8
Thread length
- 15 mm
- 25 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 407.00 ILS
Technical Data
Base materials
Concrete (tough), Concrete (very tough), Concrete (soft)
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Thread diameter
8 mm
Point type
Ballistic point
Approvals
DIBt, IBMB
Documents
Features & Applications
Features
- For the DX-Kwik technique – fastenings are driven into a small pre-drilled hole, increasing the stick rate to almost 100% while protecting the base material
- Virtually no spalling thanks to the DX-Kwik technique
- DX-Kwik can be used for approval-relevant fastenings
Applications
- Fastening channels, pipe rings on concrete
- Fastening suspended ceilings on concrete
- Fastening floor stands, metal fixtures on concrete
- Fastening brackets, electrical boxes on concrete
For approval or certificate information, please see individual items.
