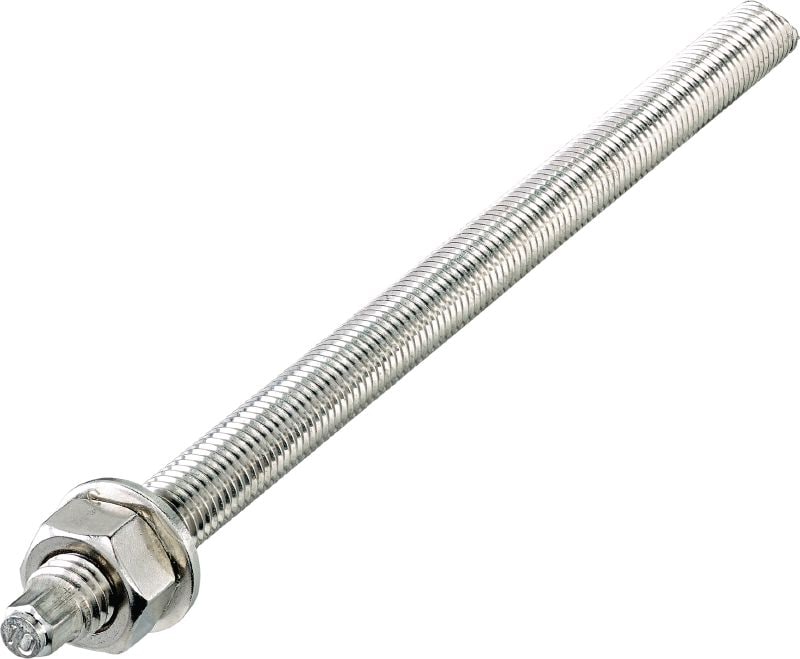

HAS-U A4 anchor rod

Anchor rod HAS-U A4 M20x400 #2223930

High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Drill bit diameter: 22 mm
  • Useable thread length: 365 mm

Choose options

Anchor size - D
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
  • M27
  • M30
Anchor length - L
  • 80 mm
  • 95 mm
  • 110 mm
  • 115 mm
  • 120 mm
  • 130 mm
  • 150 mm
  • 160 mm
  • 165 mm
  • 170 mm
  • 180 mm
  • 190 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 300 mm
  • 340 mm
  • 350 mm
  • 380 mm
  • 400 mm
  • 450 mm
  • 480 mm
Material composition
  • Stainless steel, A4
Head configuration
  • Hex head
Pack size
  • 4 pc
  • 5 pc
  • 10 pc
  • 20 pc
Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,603.80 ILS

160.38 ILS / 1 each

Technical Data

Material, corrosion
Stainless steel, A4
Drill bit diameter
22 mm
Useable thread length
365 mm
PROFIS Software
Yes
Approvals / Test reports
ETA

Documents

Features & Applications

Features

  • Head marking for easy verification of steel grade and rod length, even after installation
  • Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
  • Custom lengths and additional diameters up to M39 available upon request
  • Large range of anchor rod diameters (M6-M39)
  • Free of oil and other contaminants – engineered for full compatibility with Hilti HIT adhesive anchors

Applications

  • Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems
  • For fastenings under fatigue loading designed through Profis Engineering suite
  • For applications under fatigue loading in combination with HIT-HY 200-A/-R V3 adhesive, HIT-RE 500 V4 mortar or HVU2 anchor capsule (sizes M8-M24)
