HIT-HY 200-A V3 Adhesive anchor

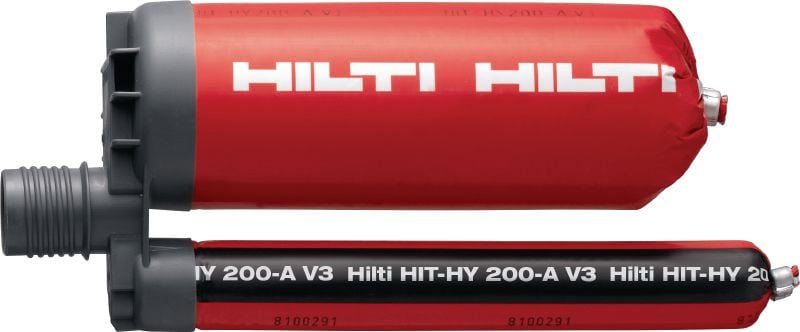

330ml,_Injectable_adhesive_HIT-HY_200-A_V3
Rebar drilling application using TE 60-22 and VC 10-22 (HNA)
Rebar injecting with HDE 500-22, TE 60-22, SL 6-22, and VC 40-22 application image (HNA)
Cropped version of the HAS rod baseplate application image with cordless impact wrench SIW 6AT-22 for PDP.
Rebar installation with HIT-HY 200-R V3 chemical mortar and HDE battery dispenser, SafeSET
Vertical Post installed rebar with HY 200 R v3 mortar, drilled with TE 70-ATC/AVR SDS Max (TE-Y) rotary hammer with HDB

Ultimate-performance injection mortar - fast-cure adhesive anchor approved for structural base plate anchoring and post-installed rebar connections in concrete

  • PROFIS Software: Yes
  • Storage and transportation temperature range: 5 - 25 °C
  • In-service temperature – range: -40 - 120 °C

Choose options

Content per can/cartridge
  • 0.33 l
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 161.50 ILS

Technical Data

PROFIS Software
Yes
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes

Documents

pdf ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Static, English, German, Polish [ 16.3 MB ]
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0697 HCC-U, English, German, French [ 14.9 MB ]
pdf ETA-15/0296 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Anchor Static , English, German, French, Polish [ 14.1 MB ]
pdf ETA-19/0632 HIT-HY 200-A/R V3 with HIT-Z Anchor, English, German, Polish [ 19.5 MB ]

Features & Applications

Features

  • Faster curing - optimized for anchoring applications in dry concrete, wet concrete, or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range (-10°C to +40°C).
  • Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
  • Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).
  • Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

Applications

  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
  • Concrete connections designed both as rigid and as simply supported
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Structural concrete connections with post-installed rebar

For approval or certificate information, please see individual items.
