HVU2 Anchor capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products

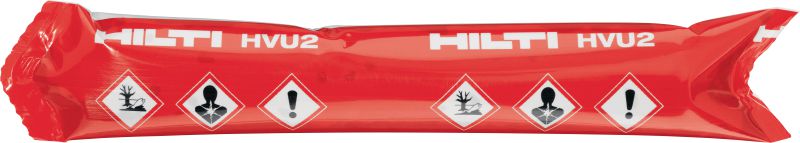

Ultimate performance foil adhesive capsules for heavy duty anchoring in concrete. New template with GHS signs

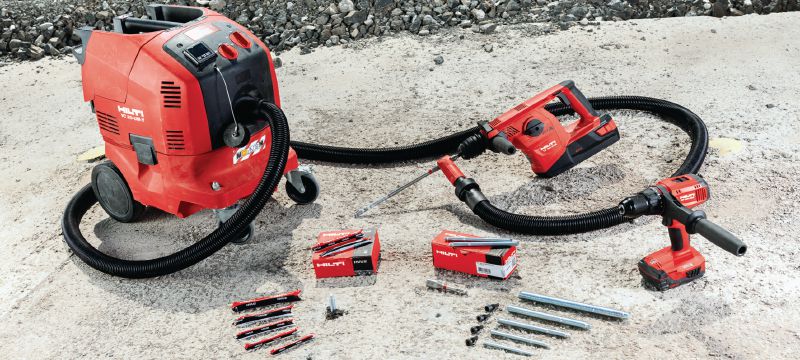

HVU2 capsule anchor application picture
HVU2 capsule anchor application picture

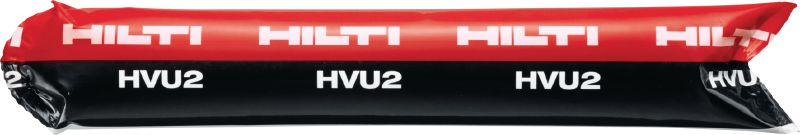

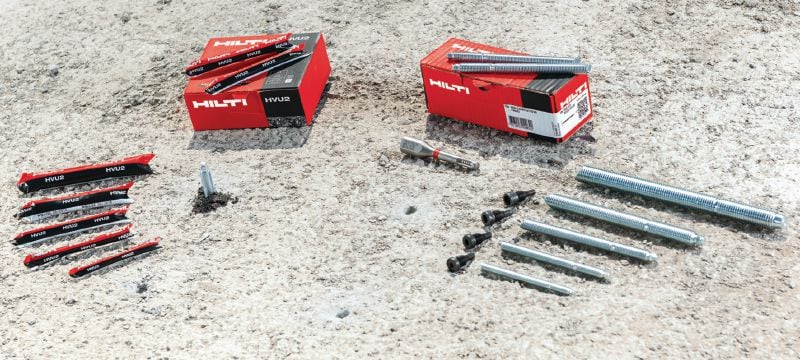

HVU2 capsule anchor system picture
HVU2 capsule anchor system picture
HVU2 capsule anchor application picture

Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete

  • PROFIS Software: Yes
  • Material composition: Hybrid urethane methacrylate adhesive
  • Tested/approved for diamond drilling: Yes

Customers also searched for capsule, glass capsule or Chemical anchor.

Choose options

Anchor size - D
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
  • M27
  • M30
Standard embedment depth
  • 80 mm
  • 90 mm
  • 110 mm
  • 125 mm
  • 170 mm
  • 210 mm
  • 240 mm
  • 270 mm
Pack size
  • 4 pc
  • 5 pc
  • 10 pc
  • 20 pc
  • 80 pc
  • 150 pc
  • 300 pc
  • 400 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 333.00 ILS

Technical Data

PROFIS Software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C

Documents

Approval document
Certificate
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish [ 5.3 MB ]

Features & Applications

Features

  • Tough and resilient soft foil capsule – no more risk of breakage like with glass capsules
  • Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
  • High performance in seismic and static conditions in cracked and uncracked concrete
  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • Fast and convenient installation and no need to purchase a special setting tool

Applications

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
  • Anchoring curtain wall facades

For approval or certificate information, please see individual items.
