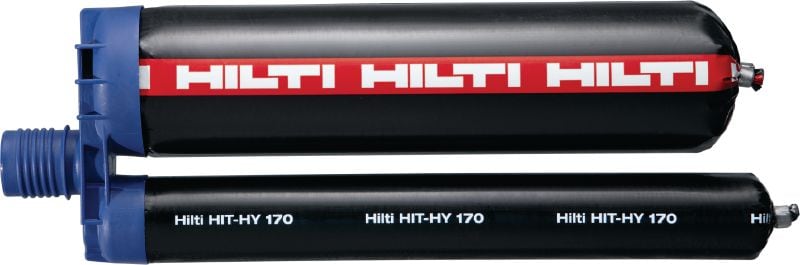

HIT-HY 170 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
Injectable mortar
Injectable mortar
Injectable_mortar
HIT-HY_170_(L077277.tiff)

High-performance injectable hybrid mortar with everyday approvals for post-installed rebar and anchoring in both concrete and masonry

  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
  • Base material condition (as per approval): Dry
  • Approvals / Test reports: ETA

Choose options

Content per can/cartridge
  • 0.33 l
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 90.25 ILS

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
Base material condition (as per approval)
Dry
Approvals / Test reports
ETA
Seismic loading
Yes
Fatigue loading
No
Fire resistance
No
PROFIS Software
Yes
Anchoring elements
HAS-U threaded rods, HIT-IC internally threaded rods, HIT-SC mesh sleeves, Rebar
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes

Documents

Technical information
Approval document
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Product_Technical_Datasheet_HIT-HY 170_Concrete to concrete, English [ 1.2 MB ]
pdf Product_Technical_Datasheet_HIT-HY 170_Steel to masonry, English [ 1.5 MB ]
pdf Whitepaper Fire design of PIR applications, English [ 1.4 MB ]
pdf Product_Technical_Datasheet_HIT-HY 170_Steel to concrete, English [ 860.7 KB ]

Features & Applications

Features

  • High-performance fast-curing solution suitable for post-installed rebar and anchoring applications in concrete and masonry

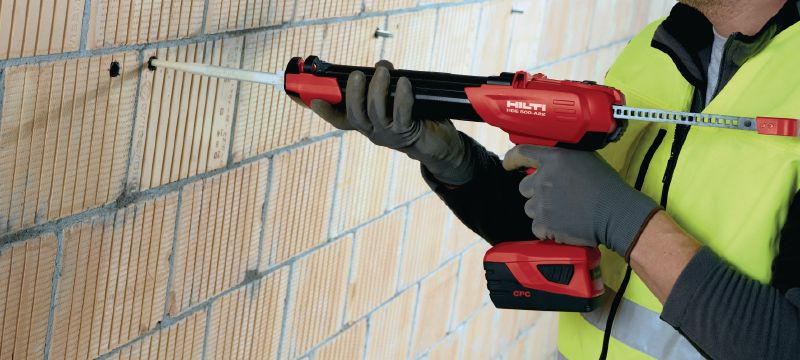

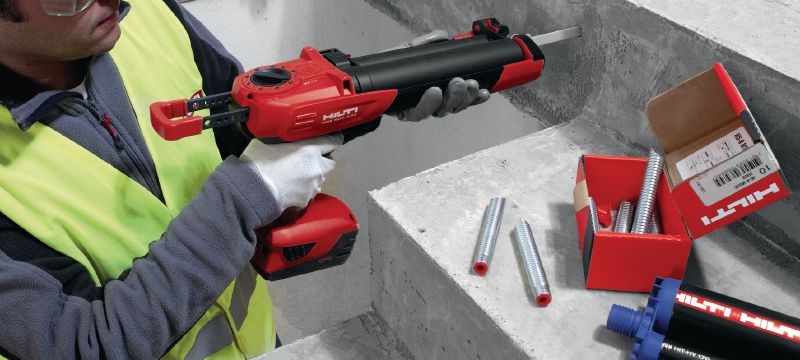

  • Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Comprehensive approvals available, including ETAs for anchoring in concrete or masonry and post-installed rebar
  • Environmental Product declaration (EPD), VOC and LEED certificates for Green building available
  • Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)

Applications

  • Light-and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
  • Anchoring light structural steel connections such as steel columns and beams
  • Anchoring secondary steel elements

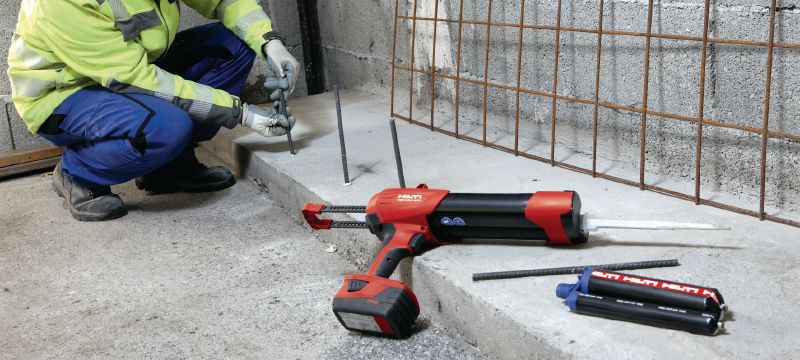

  • Renovation / upgrades with post-installed rebar
  • Substitution of misplaced / missing rebar

For approval or certificate information, please see individual items.
