HRD-UGS 14 U Plastic frame anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HRD-UGS 14x110/40
HRD-UGS 14 U
HRD-UGS

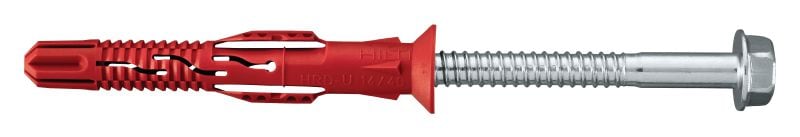

High-performance plastic anchor for concrete and masonry with screw (carbon steel, hex head)

  • Base materials: Concrete (aerated), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Hex head
  • Material, corrosion: Carbon steel, zinc-plated, Plastic

Choose options

Anchor size - D
  • 14 mm
Anchor length - L
  • 110 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 230 mm
  • 270 mm
  • 350 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 496.85 ILS

Technical Data

Base materials
Concrete (aerated), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Hex head
Material, corrosion
Carbon steel, zinc-plated, Plastic
Type of fixing
Through-fastening

Documents

pdf Technical data sheet for HRD frame anchor, English [ 691.3 KB ]

Features & Applications

Features

  • Contact corrosion resistance – extra-large collar helps prevents contact corrosion between different materials, e.g. steel and aluminum
  • Engineered for consistency and reliability – these plastic anchors have a hex head with integrated steel washer for tighter setting
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

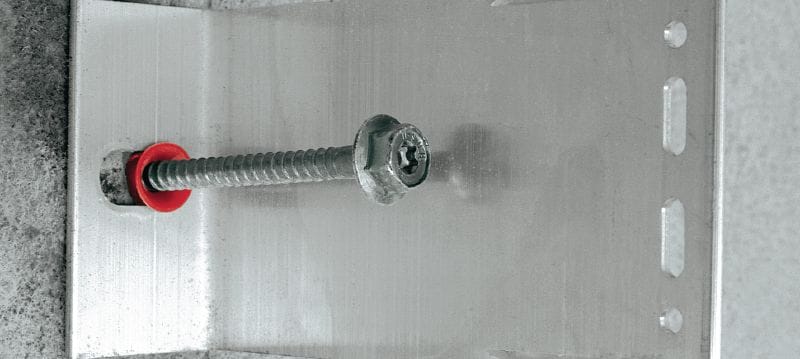

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Minimum embedment depth in concrete and hollow brick: 70 mm

For approval or certificate information, please see individual items.
