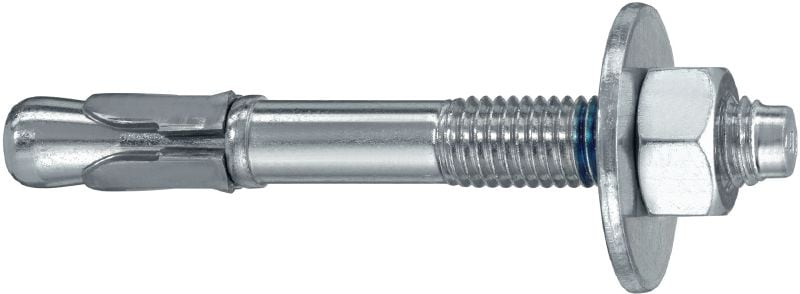

HSA-BW Wedge anchor
High-performance wedge anchor for everyday static loads in uncracked concrete (carbon steel, big washer)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fire
Choose options
Anchor size - D
- M8
- M10
- M12
- M16
Anchor length - L
- 55 mm
- 68 mm
- 70 mm
- 83 mm
- 85 mm
- 100 mm
- 102 mm
- 117 mm
- 137 mm
Pack size
- 12 pc
- 16 pc
- 20 pc
- 25 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 80.10 ILS
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire
Type of fixing
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS Software
Yes
Documents
Features & Applications
Features
- Faster and easier anchor setting with the HS-SC setting tool and S-TB torque-controlled socket wrench
- ETA-approved torquing when used with an SIW 14-A or 22-A impact wrench and S-TB torque-controlled socket wrench
- Three embedment depths offering maximum flexibility
- Suitable for pre- and through-fastening in uncracked concrete
- Large DIN 9021 washer – suitable for use in oversized or slotted clearance holes
Applications
- Wide range of fastening applications in concrete

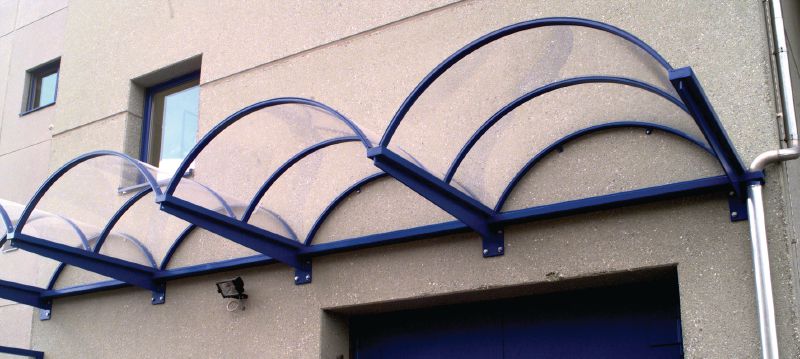

- Fastening decorative elements
- Fastening through slotted or oversized holes
For approval or certificate information, please see individual items.
