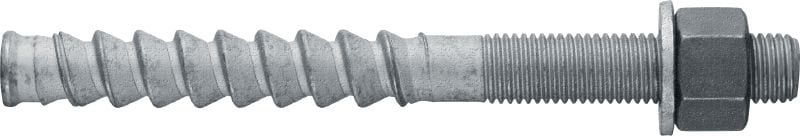

HIT-Z-F Anchor rod

Anchor rod HIT-Z-F M20x215 #2106141

Configurator
Technical Data
Documents
Features & Applications
Related Products
HIT-Z-F_Anchor_rod,_Corrosion_resistant
L082065.tiff
L082066.tiff

Ultimate-performance anchor rod for injectable hybrid anchors (multilayer)

  • Material, corrosion: Carbon steel, Multilayer coating
  • Drill bit diameter: 22 mm
  • PROFIS Software: Yes

Choose options

Material composition
  • Steel, multilayer coating
Anchor size - D
  • M20
Anchor length - L
  • 215 mm
Head configuration
  • Externally threaded
Pack size
  • 6 pc
 Product options
Quantity
Pack
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
434.70 ILS
72.45 ILS
/
1 each

Technical Data

Material, corrosion
Carbon steel, Multilayer coating
Drill bit diameter
22 mm
PROFIS Software
Yes
Approvals / Test reports
ETA, Seismic

Documents

Approval document
Sustainability Documentation
Operating Instruction
pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring application, English [ 868.2 KB ]
pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ETA-19/0601 HIT-HY 200-A/R V3 Anchoring, English, German, Polish [ 8.9 MB ]
pdf ETA-12/0084 HIT-HY-200-R Anchor EC2 & TR055 50 years, English, German [ 3.4 MB ]
pdf ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish [ 9.1 MB ]

Features & Applications

Features

  • Very high loads in cracked concrete and seismic applications in accordance with ETA C2 applications
  • No hole cleaning required (5°C / 41°F) with HIT-HY 200
  • Increased productivity and safety through elimination of the hole cleaning process
  • Head marking for easy verification of rod length, even after installation
  • First adhesive anchoring system for cracked concrete and seismic applications in diamond-cored holes

Applications

  • Fastenings in cracked and uncracked concrete in combination with HIT-HY 200
  • Seismic anchoring applications
  • Anchoring structural steel
  • Anchoring secondary steel structures
