HIT-HY 200-A Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

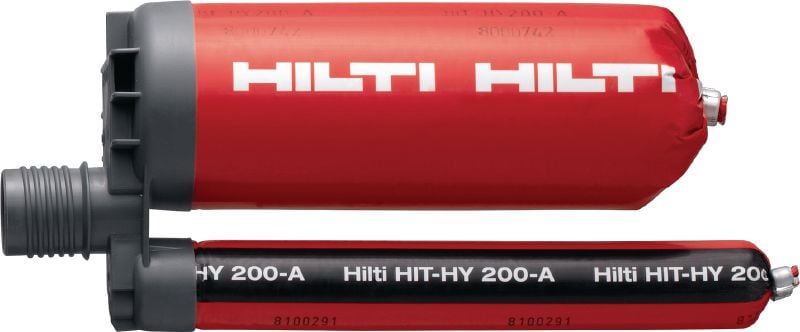

330ml, Injectable adhesive
69292.tif
HY 200-A
69293.tif

Ultimate-performance injectable hybrid mortar with approvals for rebar connections and heavy-duty anchoring

  • Base materials: Concrete (cracked), Concrete (non-cracked)
  • Base material condition (as per approval): Dry, Wet
  • Approvals / Test reports: ETA

Choose options

Content per can/cartridge
  • 0.33 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 192.85 ILS

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition (as per approval)
Dry, Wet
Approvals / Test reports
ETA
Seismic loading
Yes
Fatigue loading
No
Fire resistance
Yes
PROFIS Software
Yes
Anchoring elements
HAS threaded rods, HIS-N internally threaded sleeves, HIT-V threaded rods, HIT-Z torque controlled bonded anchors, Rebar
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning, Non Cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes
Type of fixing
Pre-fastening, Through-fastening

Documents

Approval document
Test Report
Certificate
Technical information
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Static, English, German, Polish [ 16.3 MB ]
pdf ETA-15/0296 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Anchor Static , English, German, French, Polish [ 14.1 MB ]
pdf ETA-15/0419 HIT-HY-200 A/R with HIT-Z Anchor TR029 & TR045 50 years, German, English [ 7.2 MB ]
pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring application, English [ 868.2 KB ]
pdf ETA-18/0978, Hilti HIT-HY 200-AV3/-RV3 with HAS-D for fatigue,ML, English, German, Polish [ 18.3 MB ]

Features & Applications

Features

  • No hole cleaning required when using HIT-Z anchor rods
  • Automatic hole cleaning with TE-CD and TE-YD hollow drill bits in combination with Hilti vacuum cleaners
  • Fulfills the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
  • Working time optimized for anchor applications
  • Suitable for use in cracked and uncracked concrete with all anchor rods and rebar

Applications

  • Anchoring structural steel connections (e.g. steel columns, beams)
  • Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
  • Anchoring safety barriers, balustrades, fire staircases
  • Seismic strengthening / retrofitting and bracing of reinforced concrete buildings
  • Structural splices / straight connections with post-installed rebar

For approval or certificate information, please see individual items.
