HIT-Z-R SS Anchor rod

Configurator
Technical Data
Documents
Features & Applications
Related Products
70038.tif
69293.tif

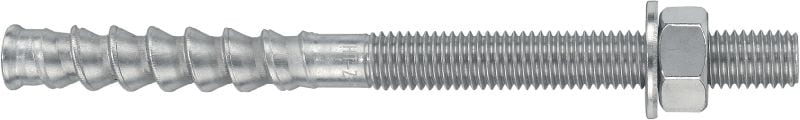

Ultimate-performance anchor rod for injectable hybrid anchors (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Material composition
  • Steel, A4 (SS316)
Anchor size - D
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length - L
  • 95 mm
  • 100 mm
  • 105 mm
  • 115 mm
  • 120 mm
  • 135 mm
  • 140 mm
  • 155 mm
  • 160 mm
  • 175 mm
  • 196 mm
  • 205 mm
  • 215 mm
  • 240 mm
  • 250 mm
Head configuration
  • Externally threaded
Pack size
  • 6 pc
  • 12 pc
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,612.80 ILS

Technical Data

Material, corrosion
Stainless steel, A4
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS Software
Yes
Approvals / Test reports
ETA, Seismic
Cleaning procedures
Non Cleaning
Type of fixing
Pre-fastening, Through-fastening

Documents

Approval document
Operating Instruction
Sustainability Documentation
pdf ETA-19/0632 HIT-HY 200-A/R V3 with HIT-Z Anchor, English, German, Polish [ 19.5 MB ]
pdf ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish [ 9.1 MB ]

Features & Applications

Features

  • Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
  • No hole cleaning required (above 5°C/41°F) with HIT-HY 200
  • More reliable and productive solution thanks to elimination of the hole cleaning process when used with HIT-HY 200 adhesive mortars
  • Variable depth of embedment to fully utilize the anchor capacity
  • Head marking for easy verification of rod length, even after installation

Applications

  • Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
  • Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)
  • Anchoring structural steel connections (e.g. steel columns, beams)
  • Outdoor applications or fastenings in corrosive environments with HIT-Z-R

For approval or certificate information, please see individual items.
