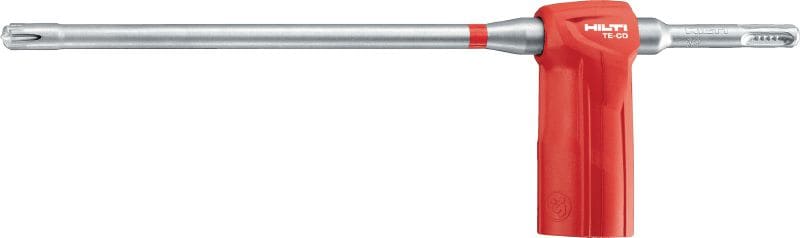

TE-CD (SDS Plus) Imperial hollow drill bit
Ultimate SDS Plus (TE-C) hollow hammer drill bit for virtually dust-free drilling in concrete
- Connection end: TE-C (SDS Plus)
- Base material: Reinforced concrete, Concrete
- Working mode: Hammer drilling
ultimate
Choose options
Diameter
- 12.7 mm
Working length
- 216 mm
- 400 mm
Length
- 330 mm
- 533 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 405.00 ILS
Technical Data
Connection end
TE-C (SDS Plus)
Base material
Reinforced concrete, Concrete
Working mode
Hammer drilling
Head shape
Multi Cutter
Head material composition
Tungsten carbide
Need vacuum cleaner
Yes
Product Class
Ultimate
Documents
Features & Applications
Features
- Drilling and hole cleaning in one step
- Optimum hole cleaning for consistent anchor setting
- Robustness, lifetime and drilling speed equal to TE-YX drill bits
- Minimized snagging or sticking when drilling into rebar
Applications

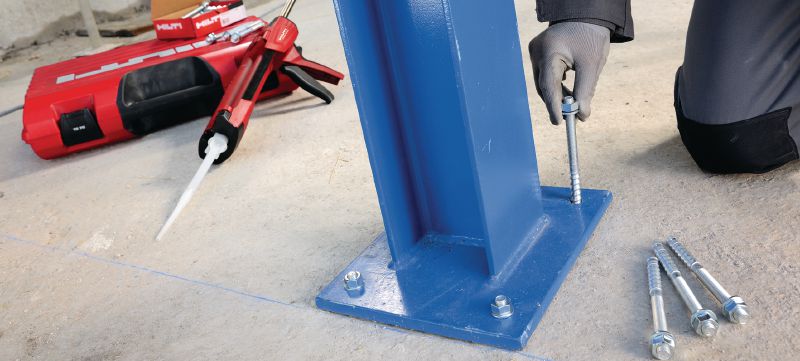

- Drilling holes for anchoring structural steel connections (e.g.steel columns, beams)

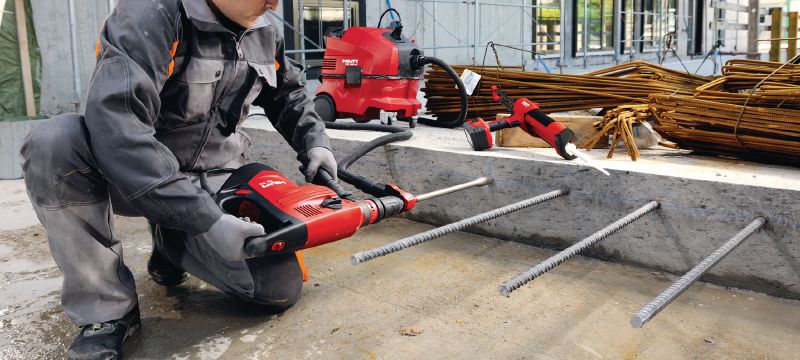

- Drilling holes for structural connections with post-installed rebar
- Drilling holes for anchoring secondary steel structures (e.g.staircases, steel ledgers)
- Drilling holes for structural renovation or upgrading with post-installed rebar
- Drilling holes for substitution of misplaced or missing rebars
For approval or certificate information, please see individual items.
