DS WS 15 Wire saw

Wire saw DS WS15 3x400V #365429

DS WS15 3 x 400V, Wire saw
DS WS15 3 x 480, Wiresaw
12402.tif

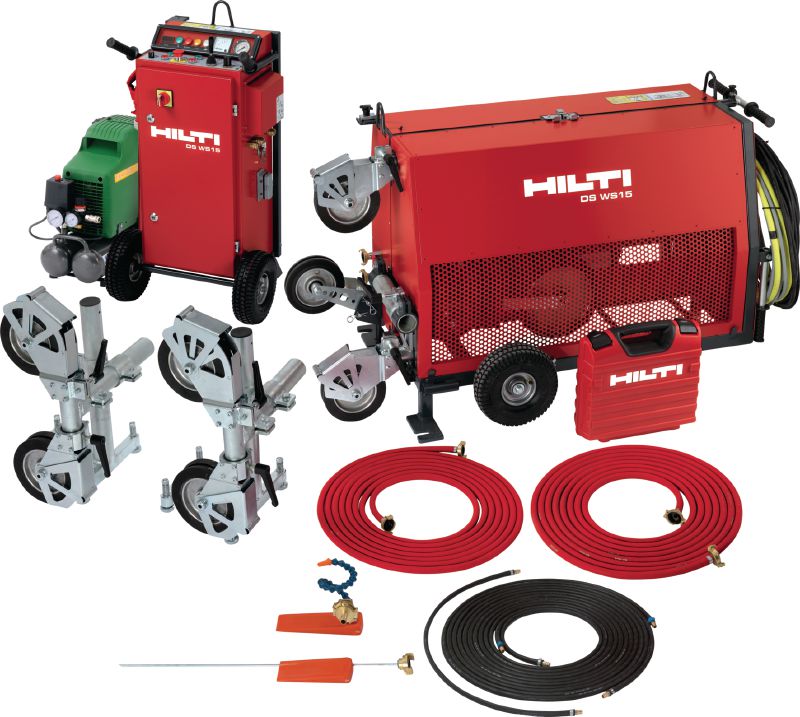

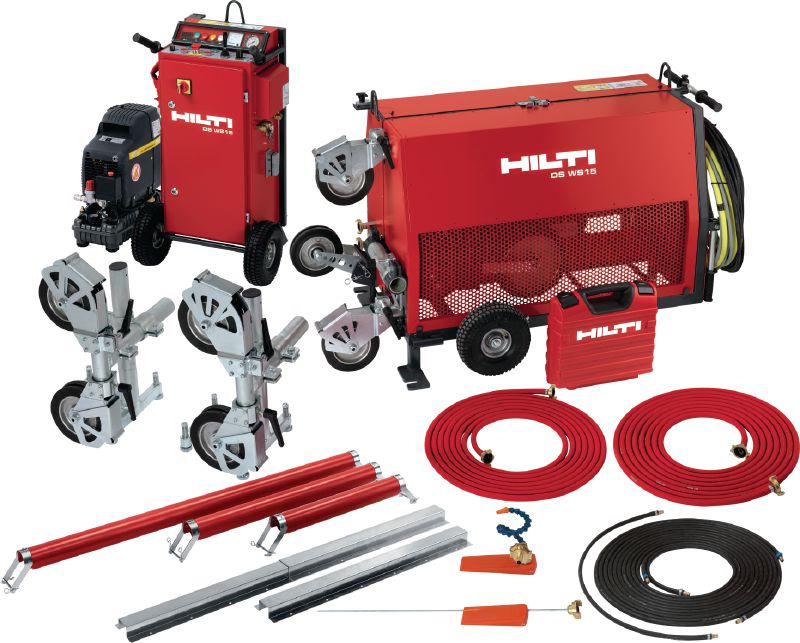

DS WS15

Electric wire saw (15 kW) for easy operation on heavy-duty cutting jobs with automatic wire tension

  • Motor power: 15 kW
  • Power source: Electric
  • Min. generator power: 40 kVA

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
834,065.00 ILS
834,065.00 ILS
/
1 each

Technical Data

Motor power
15 kW
Power source
Electric
Min. generator power
40 kVA
Weight
266 kg
A-weighted emission sound pressure level
79 dB (A) 1
IP protection class
IP 65 (EN 60529), IP 54 (EN 60529)
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
pdf Operating Instruction DS WS15 (01), English [ 3.5 MB ]

Features & Applications

Features

  • Saw advance tension is easily adjustable at all times for maximum cutting performance
  • Smooth, stepless adjustment of the drive speed from the control console
  • Robust design with electrical overload protection and maintenance-free air cylinder
  • Water flow can be switched on and off from the control console
  • High performance diamond wire in fixed working lengths

Applications

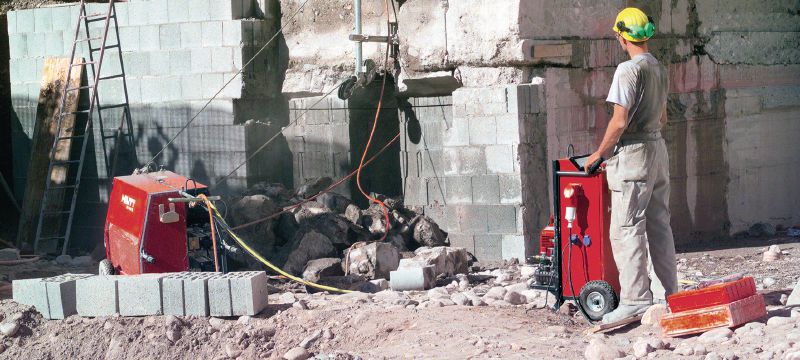

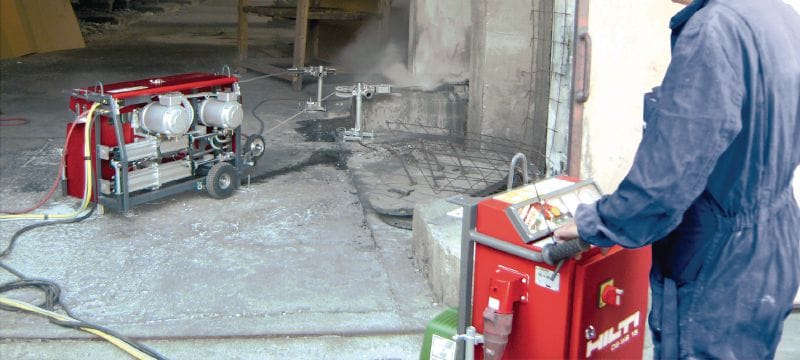

  • Structural alteration of buildings – cuts openings of all kinds and almost any shape
  • Sawing anything from heavily reinforced concrete to thick stonework
  • Technical demolition of structural components (bridges, chimneys, foundations)
  • Sawing in noise-sensitive locations

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management

LifeTime Services

  • After no-cost period repair costs are capped for as long as we service the tool
  • Pick-up and delivery service
More information about LifeTime Services
