MIC-SPH Pipe hanger accessory

Name: MIC-SPH Pipe hanger accessory
Brand: Hilti
SKU: r6210

New product

Item #r6210

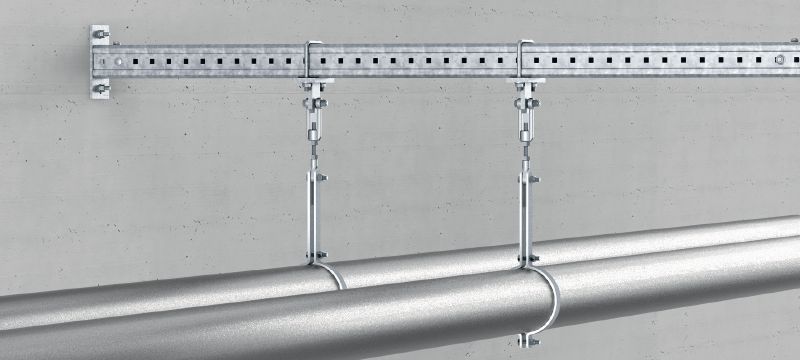

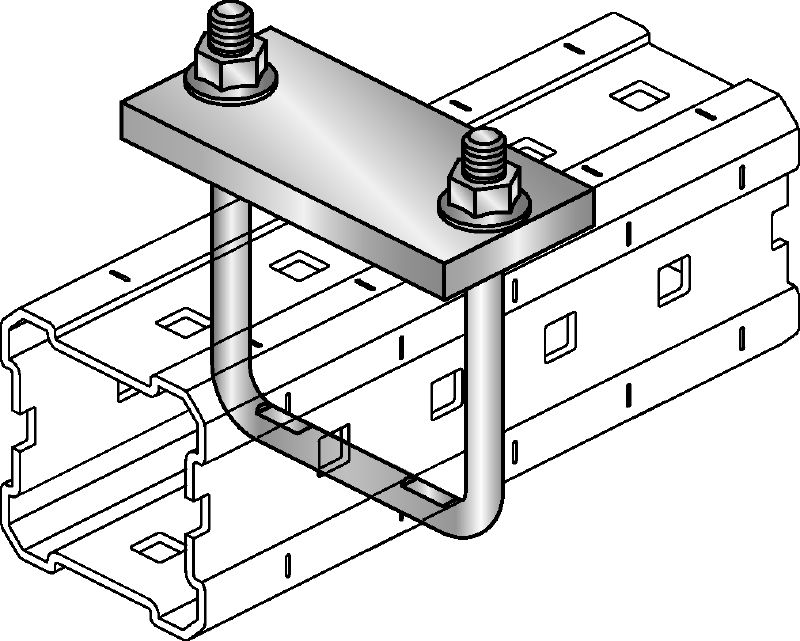

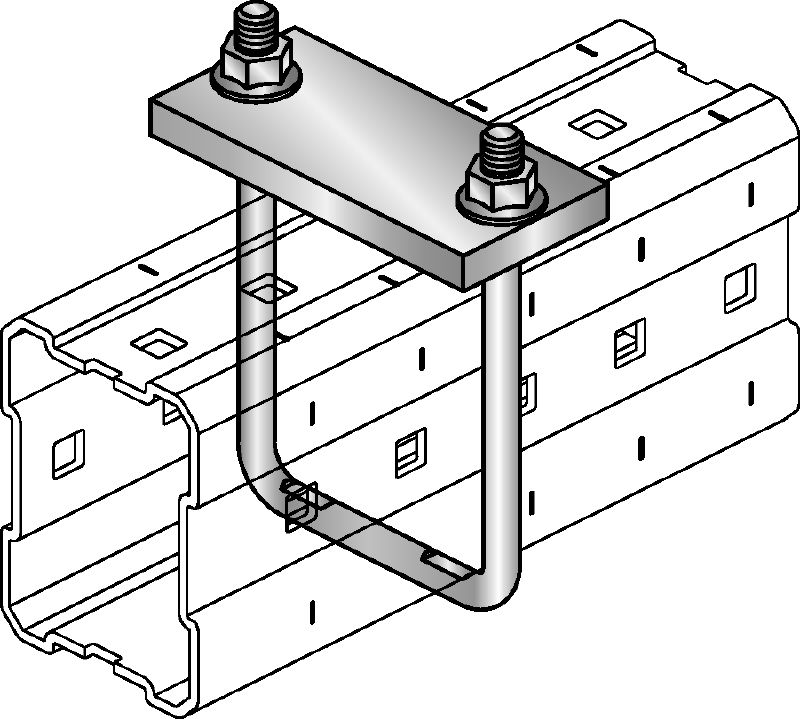

Hot-dip galvanized (HDG) accessory attached to MI girders to support hanging pipes

Weight: 1.03 kg
Material composition: U-bolt: Steel grade 8.8; Plate: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Nut: Steel grade 8
Surface finish: HDG: U-bolt, Nut 45 µm - DIN EN ISO 1461; Plate: primer finish

More technical data

Features

Easy installation of standard weld-on tabs; e.g. for spring hangers
Dimensions suitable for fastening to MI girders

Applications

Fastening using weld-on lugs
Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations

Product Variants & Sets

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector spring hanger MIC-SPH

- PDF Instruction for use MIC-SPH-90 / MIC-SPH-120, Chinese (traditional), Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 284.3 kB ]

MIC-SPH Pipe hanger accessory

Hot-dip galvanized (HDG) accessory attached to MI girders to support hanging pipes
