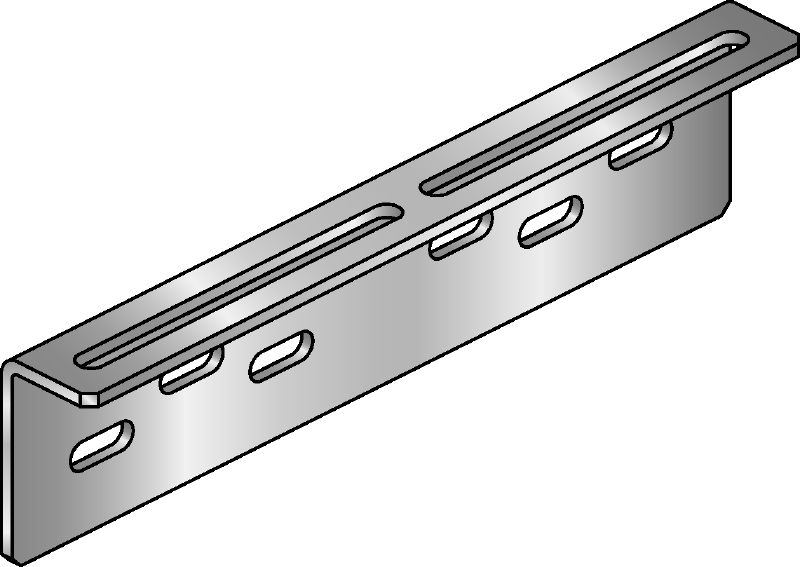

MIC-UB Connector

Name: MIC-UB Connector
Brand: Hilti
SKU: r6208

New product

Item #r6208

Hot-dip galvanized (HDG) connector for fastening U-bolts to MI girders with greater adjustability

Weight: 2.58 kg
Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Washer, Bolt, Nut 45 µm - DIN EN ISO 1461

More technical data

Features

Pipe position infinitely adjustable thanks to the elongated hole
Positive engagement for efficient load transmission
Keyed hole for optimum transmission of forces

Applications

Fastening uninsulated pipes with U-bolts (not included)
Fastening with U-bolts (not included)

Product Variants & Sets

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector U-bolt MIC-UB90-M12 L4

- PDF Instruction for use MIC-UB 90 L400, Chinese (traditional), Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 434.4 kB ]
