MIQ Box profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
Girder MIQ-90 3m, r4705711
L001494_3.tiff
IS_MIQ_0001.eps

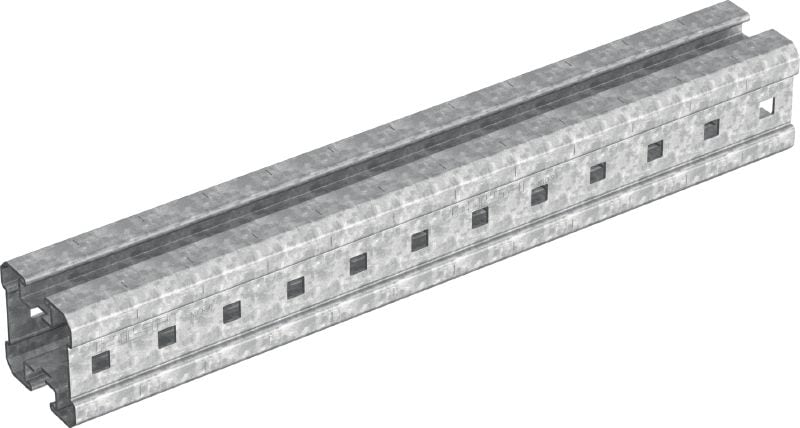

Hot-dip galvanized (HDG) box profile for heavy-duty applications

  • Material composition: S275JR - EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Height
  • 90 mm
Length
  • 3000 mm
  • 6000 mm
Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 897.67 ILS

Technical Data

Details
Technical illustrations
Material composition
S275JR - EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Full compatibility with both MQ and MI channel systems
  • Continuous mounting slot allows connectors to be fitted at any point along the girder
  • Effortless pipe connections directly on the girder
  • Automatic tightening with SI-AT module for supported connectors

Applications

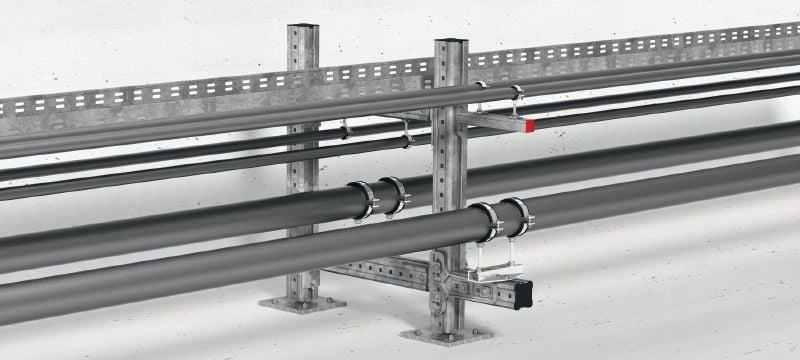

  • Modular system for supporting cable trays, pipes and various other installation applications
  • Provides an easy-to-install, adjustable, flexible solution for industrial and heavy commercial applications, eliminating the need for welding
  • Assembly of goalposts, cantilevers, cantilever crosses or covering large spans

For approval or certificate information, please see individual items.
