MIC-U Connector

Name: MIC-U Connector
Brand: Hilti
SKU: r3132

New product

Item #r3132

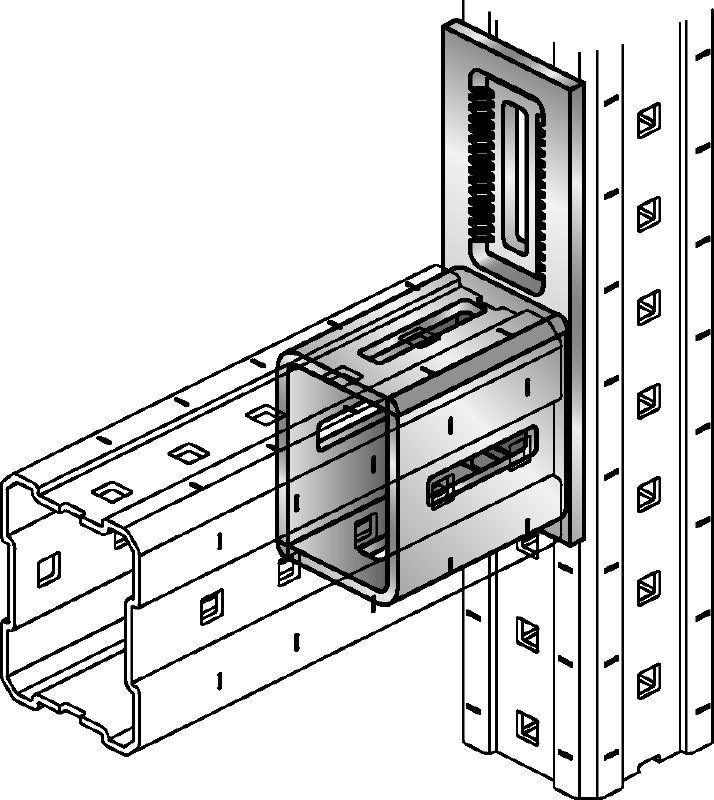

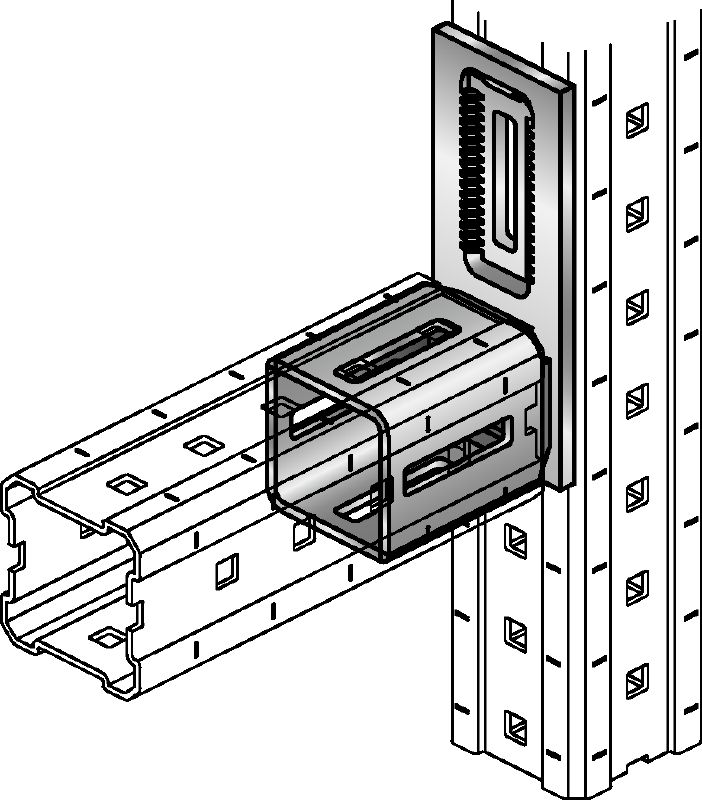

Connector for attaching modular girders to each other at right angles

Weight: 2.79 kg
Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; Backing plate, Tooth plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461

More technical data

Features

Provides a strong and rigid connection
Adjustable by up to 50 mm during installation
Can be finely adjusted by up to 5 mm
Connector comes with self-locking nuts to help protect against vibration
Keyed hold for optimum transmission of forces and moments

Applications

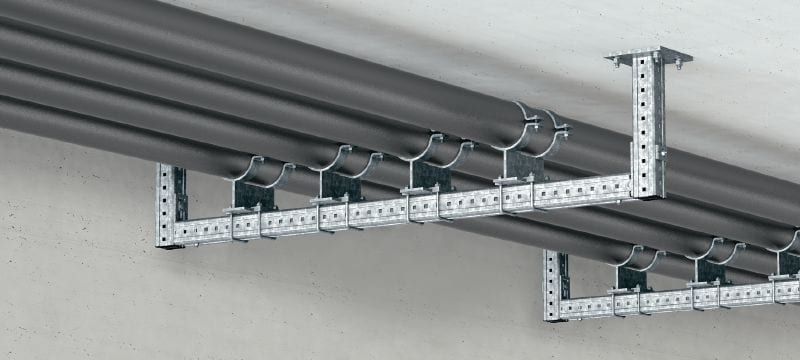

Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Industrial and heavy commercial applications, eliminating the need for welding
Crossbeam connections

Product Variants & Sets

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator
