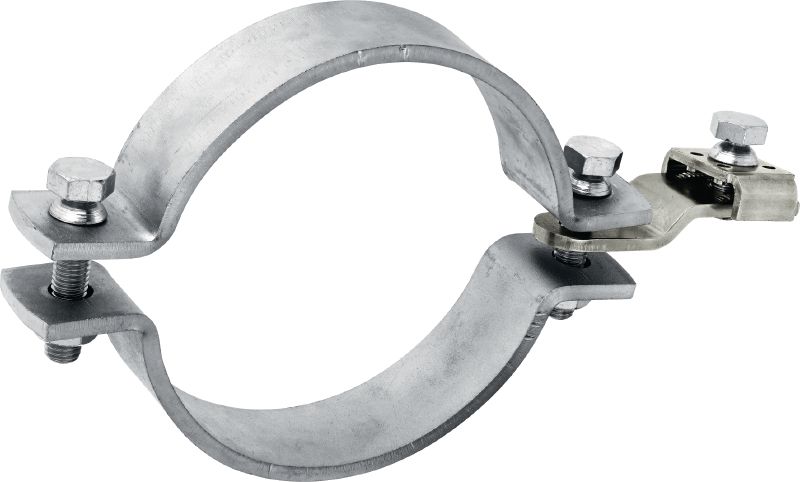

MQS-SP Seismic sprinkler pipe clamp

Galvanized sprinkler pipe clamp with FM approval for seismic bracing in fire sprinkler applications

  • Approvals: FM approved seismic sprinkler applications
  • Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Clamping Range - D
  • 60 - 65 mm
  • 73 - 78 mm
  • 88 - 93 mm
  • 108 - 116 mm
  • 134 - 142 mm
  • 162 - 170 mm
  • 213 - 221 mm
Nominal pipe size (imperial)
  • 2 in
  • 2-1/2 in
  • 3 in
  • 4 in
  • 5 in
  • 6 in
  • 8 in
Pack size
  • 5 pc
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1,159.00 ILS

Technical Data

MQS-SP,_Seismic_sprinkler_pipe_ring
Approvals
FM approved seismic sprinkler applications
Material composition
S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Universal seismic pipe clamps for use in longitudinal and transversal bracing applications
  • FM-approved system for bracing of fire sprinkler installations
  • Meets U.S.A. National Fire Protection Association (NFPA) requirements for seismic braces
  • Shear-off bolt heads make installation and inspection quicker and easier
  • Fully pre-assembled connector with pivoting functionality for quicker, easier and flexible mounting

Applications

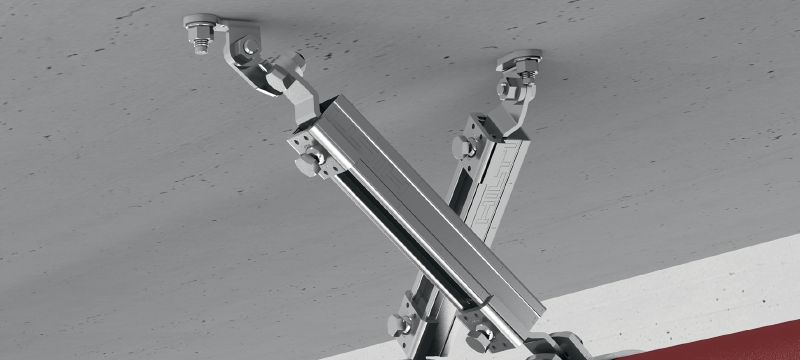

  • Seismic approved (FM) bracing of fire sprinkler pipes

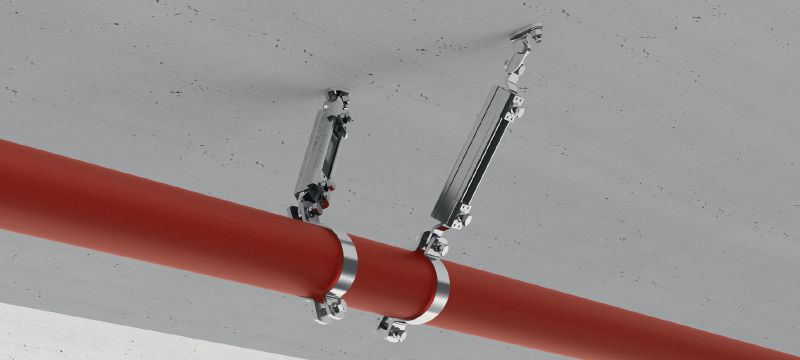

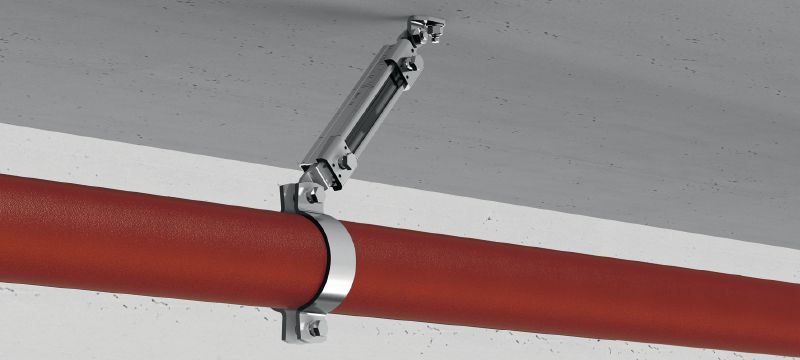

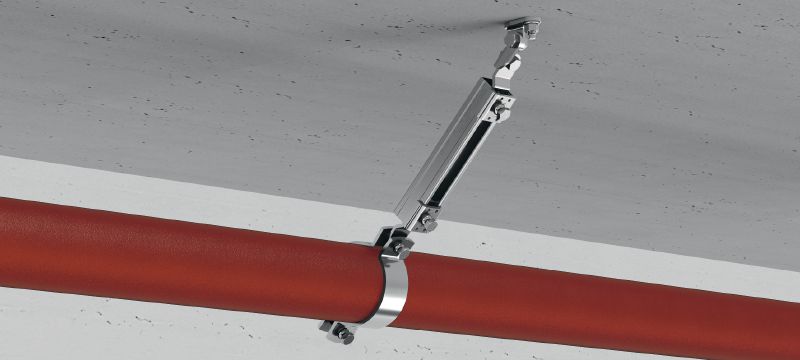

  • Attaching pipes for longitudinal or transversal brace assembly

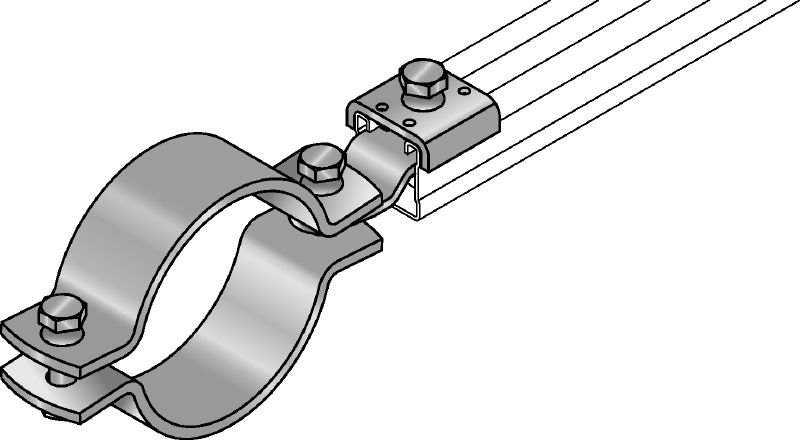

  • For use in combination with MQS-SP-L or MQS-SP-T channel connectors

For approval or certificate information, please see individual items.
