CFS-M RG Firestop mortar

Firestop mortar CFS-M RG #2018780

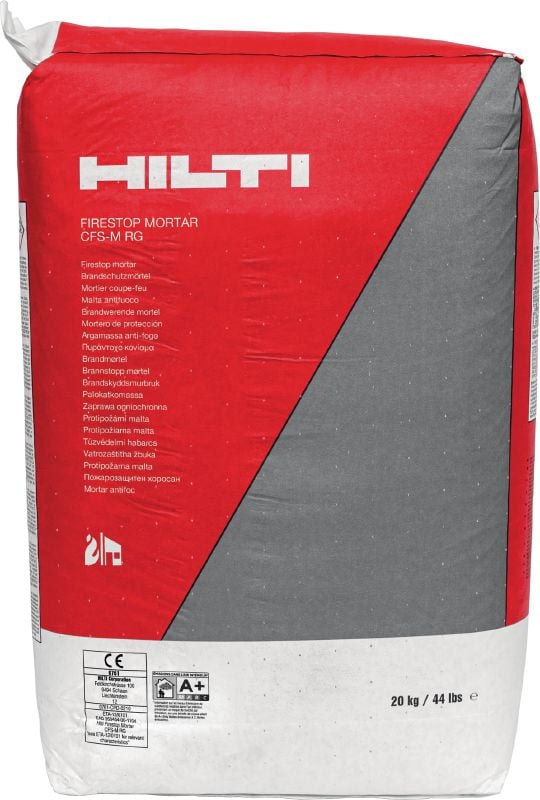

Firestop Mortars CFS-M RG bag

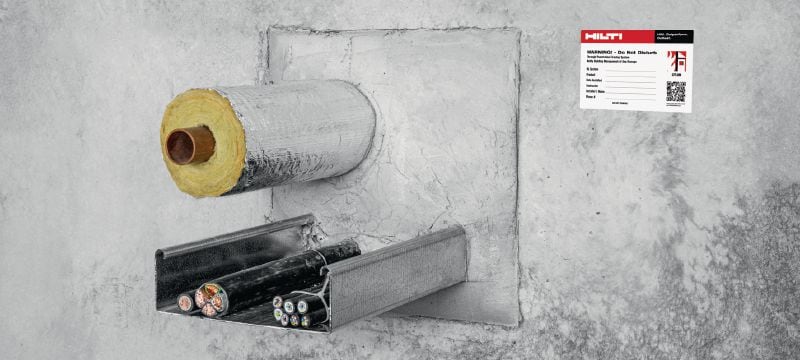

Application picture of firestop mortar
Firestop mortar pipe application with firestop wrap strip

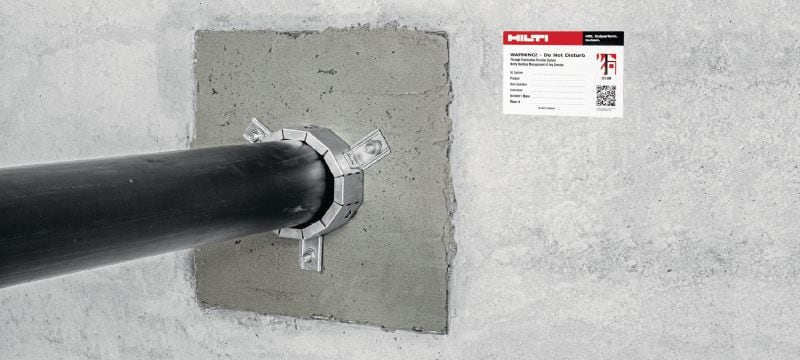

Application image of firestop mortar pipe application with firestop collar

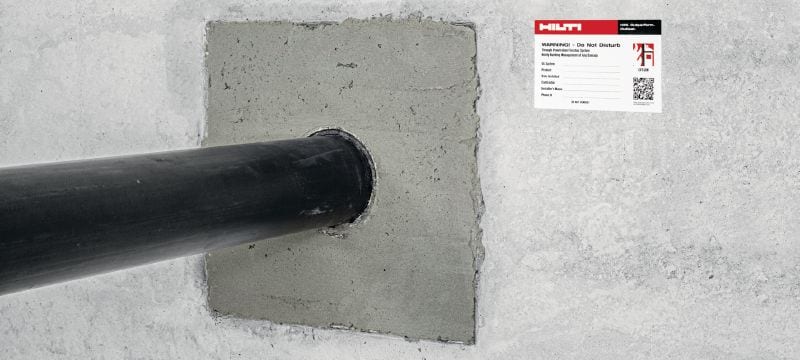

Mortar application wo ID plate, CP_636_M_RG_00018951_15cm.eps

Firestop mortar to help prevent fire and smoke from spreading through large openings with cable, pipe and mixed penetrations

  • Base materials: Concrete, Aerated Concrete, Masonry
  • Color: Grey
  • Approx. mix ratio: 2.5:1 (Mortar to Water by Weight)
ultimate

Choose options

Packaging
  • Bag
Weight
  • 20 kg
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
864.15 ILS
864.15 ILS
/
1 each

Technical Data

Base materials
Concrete, Aerated Concrete, Masonry
Color
Grey
Approx. mix ratio
2.5:1 (Mortar to Water by Weight)
Storage and transportation temperature range
5 - 30 °C
Can be painted
Yes
Product Class
Ultimate

Documents

pdf CFS-M-RG_ETA 25-0912, English [ 1.6 MB ]

Features & Applications

Features

  • Easier to install – consistency can be varied for application with a trowel or commercially available pumps
  • Excellent thermal insulating properties
  • Minimal shrinkage during curing and no spalling in event of fire
  • Paintable

Applications

  • Mixed penetrations in rigid walls and floors from 150 mm

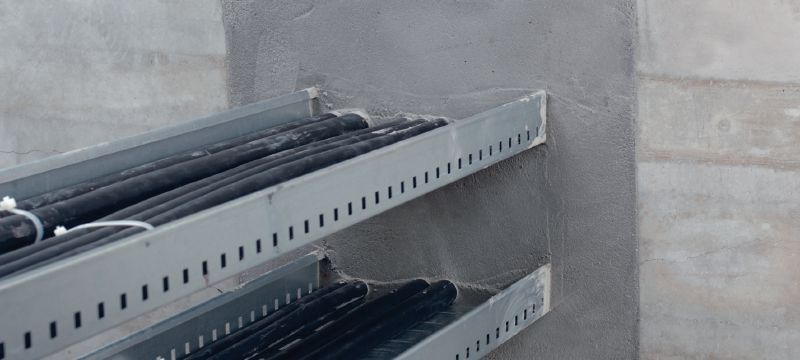

  • Cables, cable bundles, cable trays and cable conduits
  • Non-combustible (metal) pipes with non-combustible insulation
  • Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage
  • Combustible pipes in combination with CFS-C firestop collar, CFS-C P firestop collar or CFS-W firestop wrap
