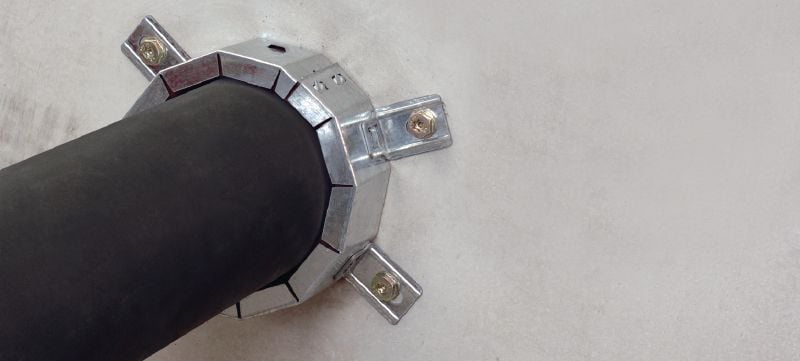

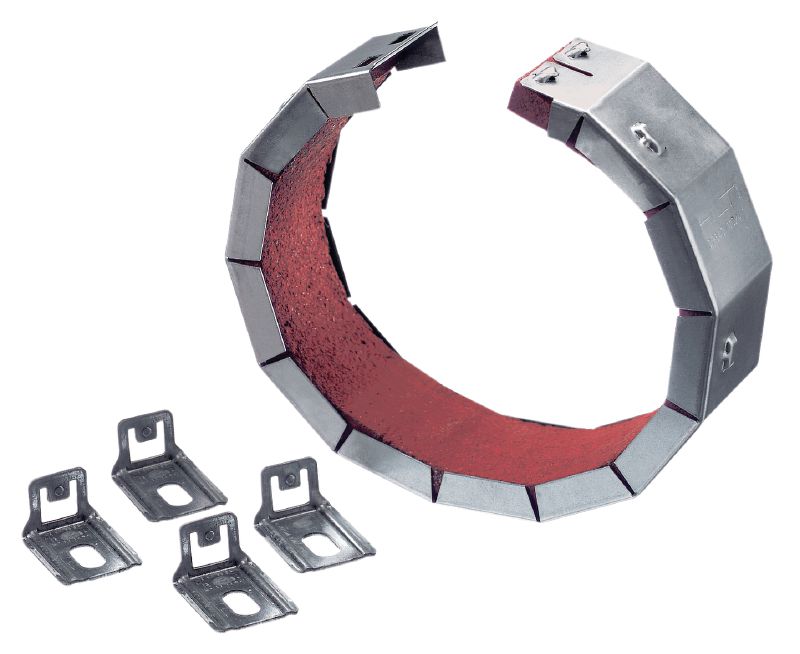

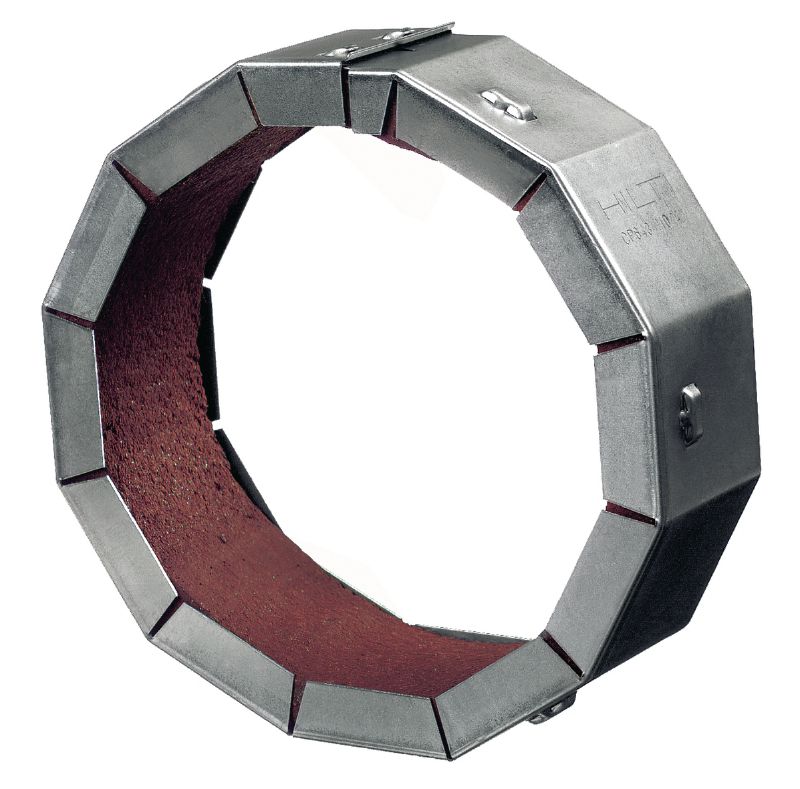

ETA-compliant retrofit premium firestop collar to help create a fire and smoke barrier around existing pipes between 50-250 mm

  • Base materials: Aerated Concrete, Concrete, Masonry, Drywall
  • LEED VOC: 7.6 g/l
  • Product Class: Ultimate
ultimate

Choose options

Nominal pipe diameter
  • 50 mm
  • 63 mm
  • 75 mm
  • 90 mm
  • 110 mm
  • 125 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 225 mm
  • 250 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 44.00 ILS

Technical Data

Base materials
Aerated Concrete, Concrete, Masonry, Drywall
LEED VOC
7.6 g/l
Product Class
Ultimate

Documents

Features & Applications

Features

  • Designed to simplify firestopping of combustible pipes through fire-rated walls and floors

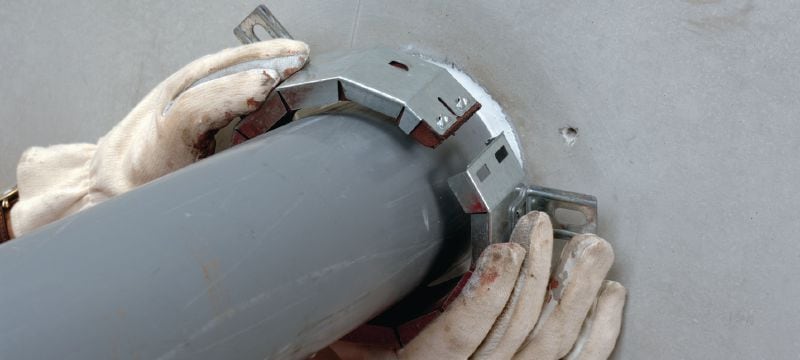

  • Latch mechanism for quicker and easier closure
  • Flexible hook positioning – makes the firestop collar easier to fasten when near obstructions
  • Can be uninstalled
  • Can be visually inspected easily

Applications

  • Sealing flammable pipes from 50 mm to 250 mm in diameter in penetrations through fire compartment walls and floors
  • Firestop collar for PVC and other plastics – suitable for PVC, PVC-U, PE, PE-HD, PE-X, PP, ABS, Al-composite
  • Suitable for use in openings in concrete, aerated concrete and masonry
  • Different backfilling and sealing materials are covered
  • Suitable for aluminum composite pipes

For approval or certificate information, please see individual items.
