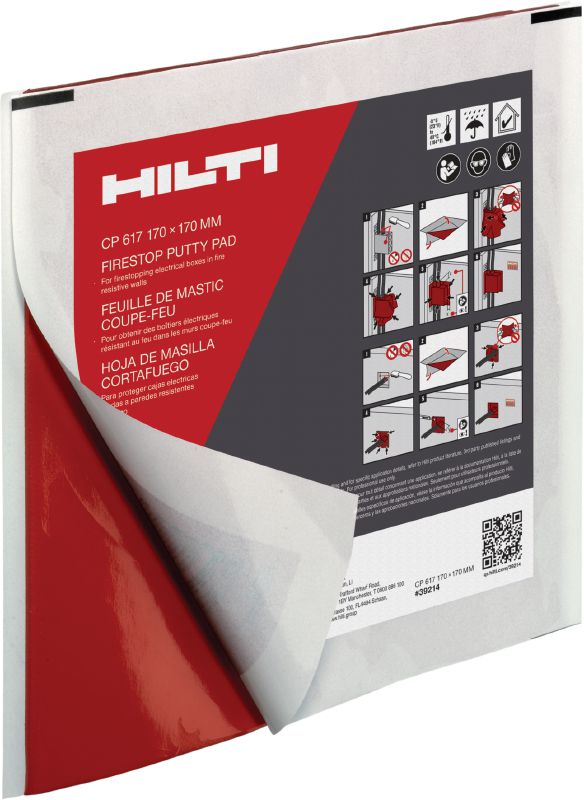

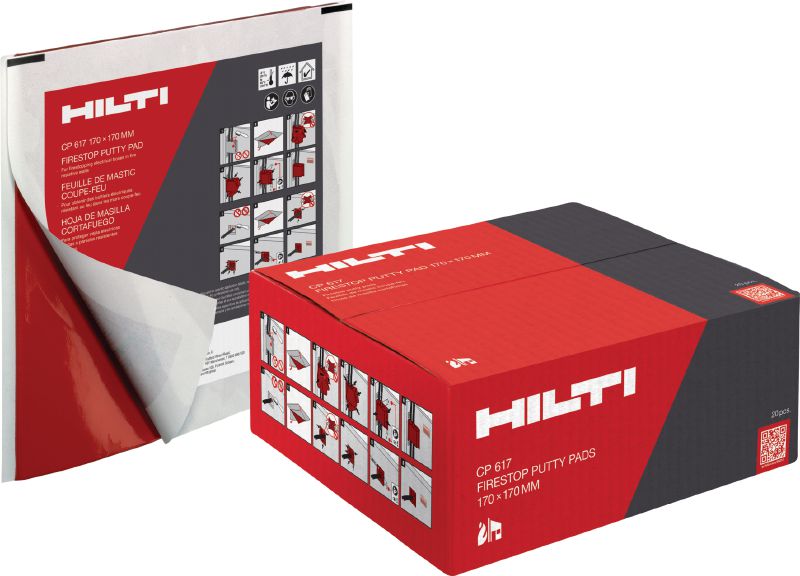

CP 617 Firestop Putty Pad
Easily moldable firestop putty designed to help protect electrical outlet boxes from fire and smoke
- Base materials: Gypsum, Metal
- Color: Red
- Storage and transportation temperature range: -5 - 40 °C
ultimate
Choose options
Dimensions (LxWxH)
- 170 x 170 x 3 mm
- 170 x 230 x 3 mm
Pack size

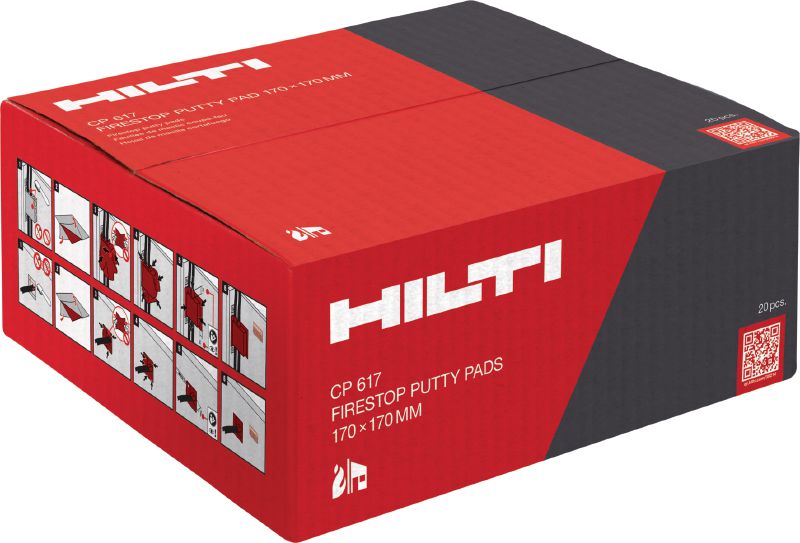

- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 885.00 ILS
Technical Data
Base materials
Gypsum, Metal
Color
Red
Storage and transportation temperature range
-5 - 40 °C
Temperature resistance range
-20 - 40 °C
Product Class
Ultimate
Documents
Features & Applications
Features
- Adheres to gypsum, metal and plastic
- Quicker and simpler to install – applied by hand and no tools required
- Pad can be molded by hand without leaving residue on hands
- Acoustically tested according to ASTM E90
- Remains pliable and workable for the lifetime of the installation
Applications
- Approved for use on all types of lightweight partition wall (including timber stud)

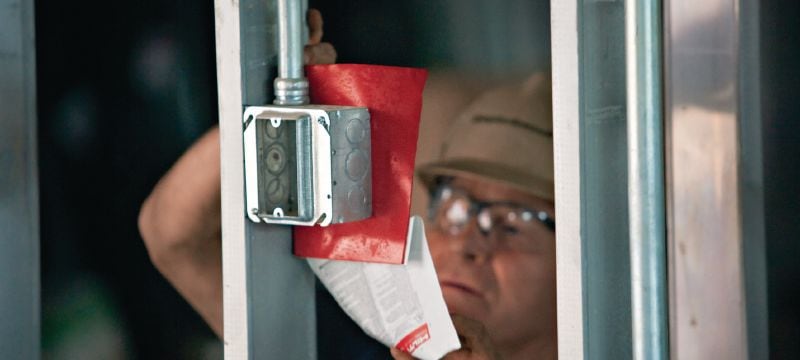

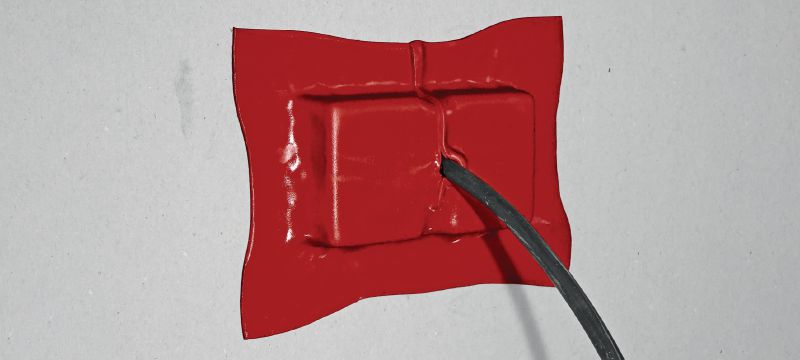

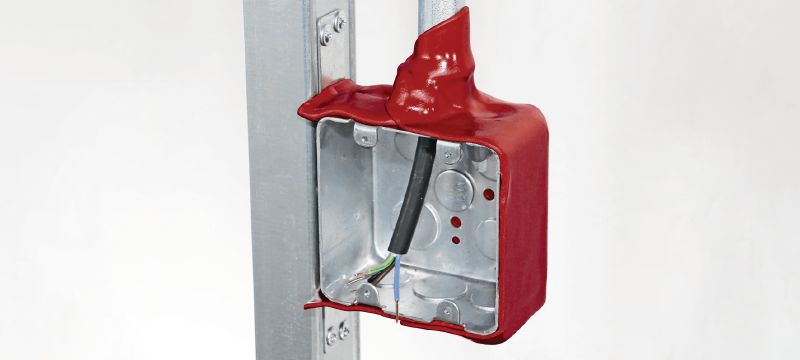

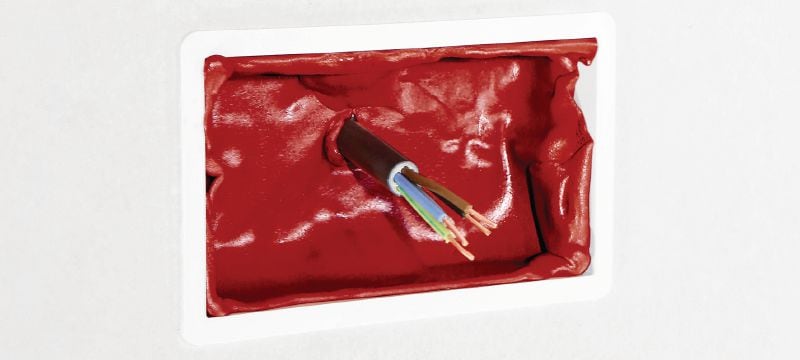

- Acoustic sealing and firestopping of electrical boxes and switches in drywall (to be fitted to the inside or the outside of the box)
- Can be used for commercial and residential applications
- Sealing around two electrical boxes within a single stud on opposite sides of wall (back-to-back)
- Substitutes the need for baffle boxes
For approval or certificate information, please see individual items.
