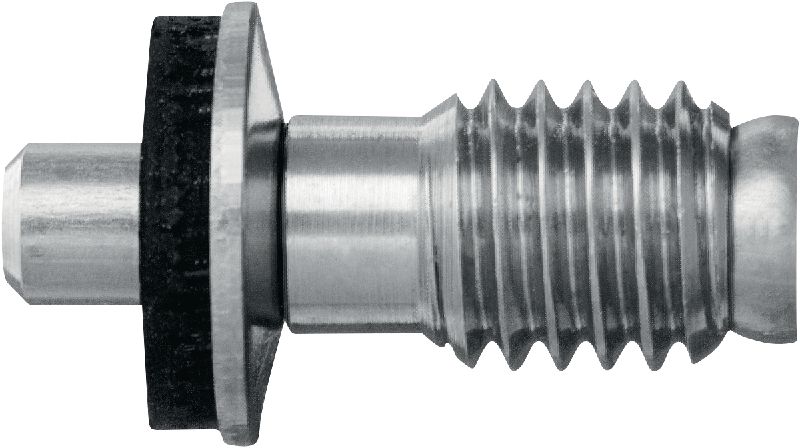

X-BT M8 Threaded studs

Threaded stud X-BT M8-15-6 SN12- #377074

X-BT M8-15-6 SN12-R Stainless steel threaded stud adapted, ms

Threaded stud for grating and multi-purpose fastenings on steel in highly corrosive environments

Base materials: Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel): 8 mm
Corrosion protection: Stainless steel A4(316) or equivalent

ultimate

Choose options

Thread size

Pack size

100 pc

Product options

Quantity

Pack

Total Pieces

100

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Base materials

Steel, Stainless steel, Cast iron

Minimum thickness of base material (steel)

8 mm

Corrosion protection

Stainless steel A4(316) or equivalent

Environmental Conditions

Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor, rural or urban environment with low pollution, Indoor environments with temporary condensation, Dry indoor, Outdoor temporary applications

Material

Duplex stainless steel (1.4462)

Thread diameter

8 mm

Length

21 mm

Point type

Blunt tip

Approvals

ABS, DNV GL, ICC-ES, LR

Product Class

Ultimate

Documents

Features & Applications

Features

No reworking of base steel – corrosion protection remains intact
Versatile – suitable for use on most standard and high-strength construction steel
Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
Portable, cordless system – eliminates the need for long electric supply cords
Corrosion-resistant – suitable for marine, offshore, petrochemical and power plants applications

Applications

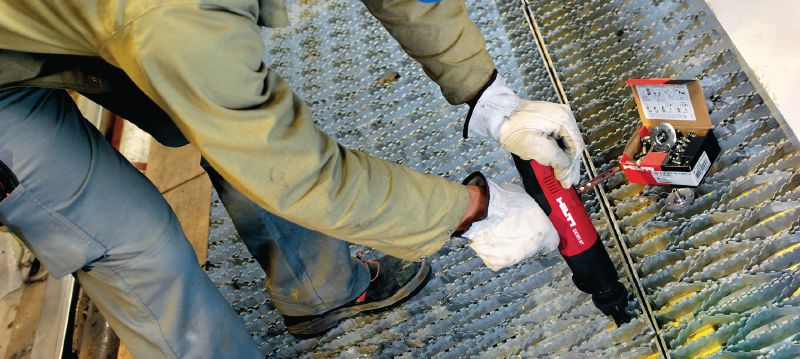

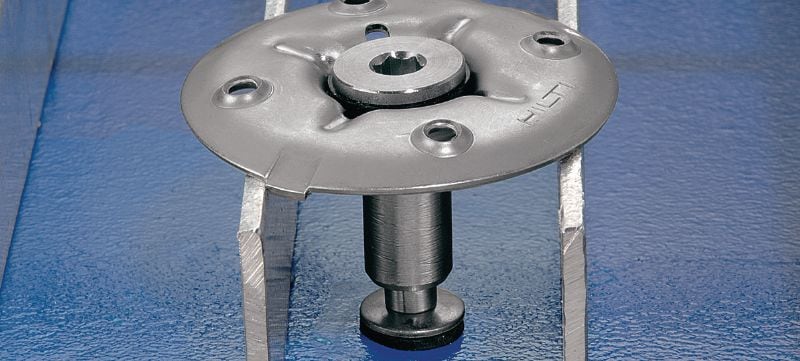

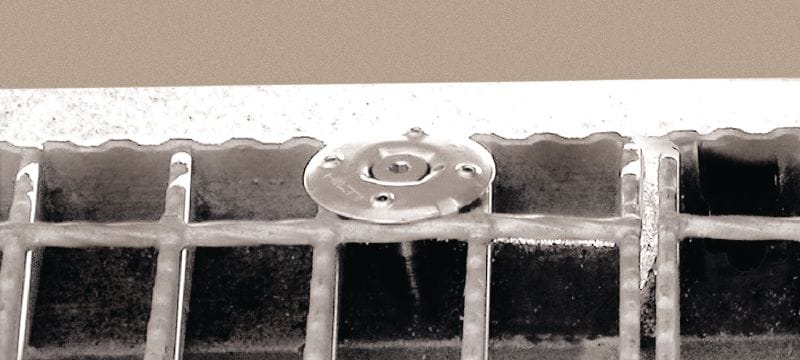

Fastening gratings to steel structures with X-FCM-M and X-FCM-R grating disc
Fastening of cable trays, strut, light-duty electrical applications (T-bars, instrumentation panels, junction boxes)
Fastenings to fire coated (PFP) beams
Designed to work on steel thicknesses of 8 mm (5/16") and above
