S-MP 53 Z Self-tapping screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
r2973,r2283

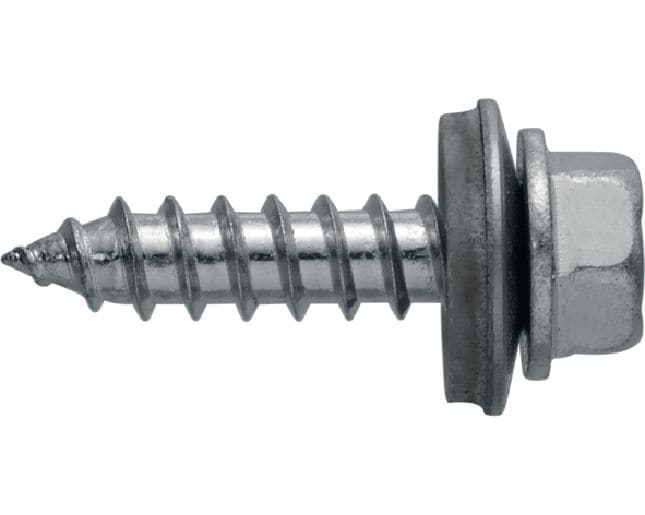

Self-tapping screw (zinc-plated carbon steel) with 16 mm washer for fastening on timber framing or thin steel/aluminum

  • Screw drive/recess type: Hexagon 3/8
  • Washer size: 16 mm
  • Base materials: Wood, Carbon steel, Aluminium

Choose options

Base materials
  • Wood, Carbon steel, Aluminium
Corrosion protection
  • Galvanized zinc plated
Thickness fastened range MF
  • 1.2 - 27 mm
  • 1.2 - 39 mm
Length
  • 38 mm
  • 50 mm
Pack size
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 357.00 ILS

Technical Data

Screw drive/recess type
Hexagon 3/8
Washer size
16 mm
Base materials
Wood, Carbon steel, Aluminium
Environmental Conditions
Dry indoor
Screw diameter d
6.5 mm
Screw-head diameter
13 mm
Washer type
Bonded EPDM

Documents

Reference document
Technical information
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-tapping screw for timber framing or thin steel/aluminum members
  • Fitted with EPDM sealing washer
  • EPDM rubber washer – creates a more reliable seal against water
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be colored to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanized carbon steel for fastening in dry, indoor environments
  • Fastening timber framing (26 mm minimum embedment depth)
  • For applications requiring watertight fastenings with 16 mm washer
  • Wood substructures: with at least 26 mm anchorage depth

For approval or certificate information, please see individual items.
