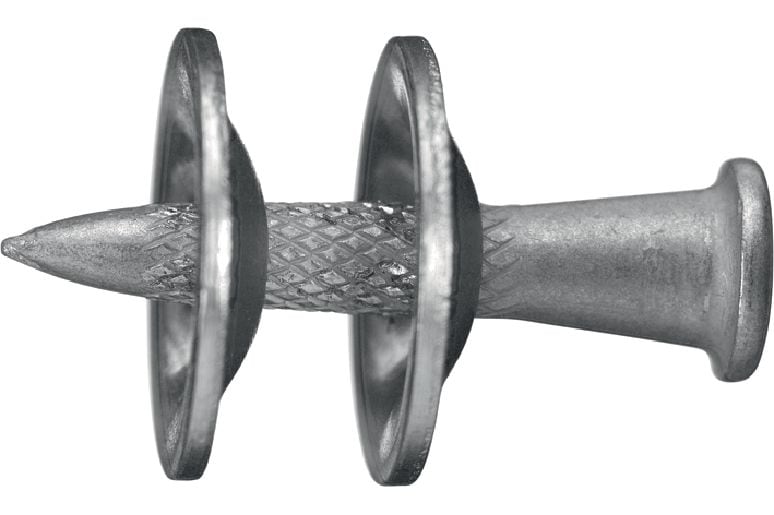

X-ENP2K Metal deck nails

Single nail for fastening metal decks to light steel structures using the DX 76 powder-actuated nailer

ultimate

Fastener shank length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 598.00 ILS

Technical Data

Base materials

Steel

Minimum thickness of base material (steel)

3 mm

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

3.7 mm

Washer size

15 mm, 15 mm

Point type

Ballistic point

Approvals

ABS, BUtgb, ETA, ITB, LR, Rom

For use with (tools)

DX 76

Product Class

Ultimate

A much faster and safer fastening system compared to welding
Suitable for 3-6 mm thick steel base materials
Easy visual check of fastening quality with the help of nail stand-off gauges
Suitable for steel strengths S235-S355

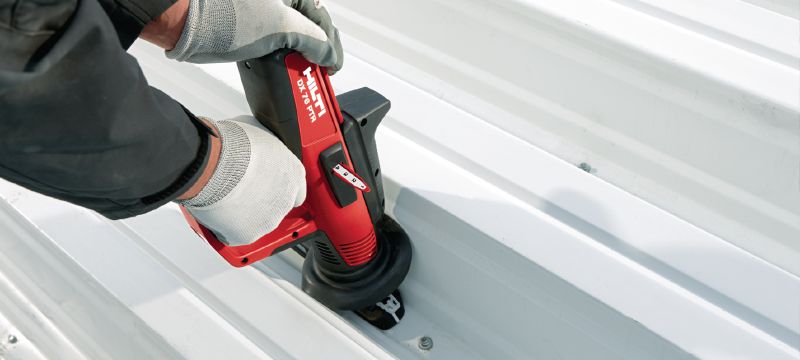

Forms a system with the Hilti DX 76 PTR for optimum fastening on HTU cast-in channels, steel beams and other supports with a thickness of 3-6 mm
