KH-EZ CRC Screw anchor

Screw anchor KH-EZ CRC 3/8"x3" #2221942

Configurator
Technical Data
Documents
Features & Applications
Related Products
L069368.tiff
KH-EZ Screw anchorsTemp app, channel fixing

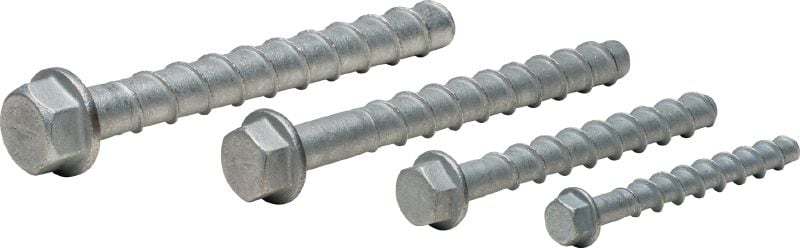

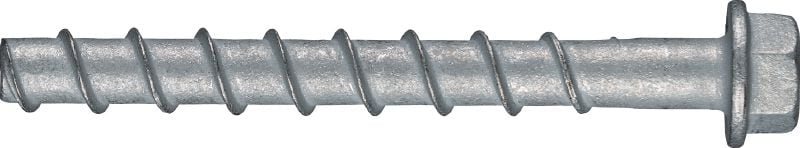

Ultimate screw anchor with corrosion-resistant coating (mechanically galvanized carbon steel, hex head)

  • Material, corrosion: Carbon Steel, mechanically galvanized
  • Head configuration: Hex head
  • Socket size: 14 mm

Choose options

Anchor size - D
  • 3/8 in
Anchor length - L
  • 76 mm
Pack size
  • 50 pc
 Product options
Quantity
Pack
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon Steel, mechanically galvanized
Head configuration
Hex head
Socket size
14 mm
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Reusable (and removable)
Not Possible
PROFIS Software
Yes
Material composition
Steel, mechanically galvanized (min. 55 µm)

Documents

Approval document
Test Report
Operating Instruction
pdf ICC-ES ESR-3027 for Kwik HUS-EZ Screw Anchors in Concrete, English [ 1.5 MB ]
pdf ICC-ES ESR-3027 Kwik HUS-EZ, Spanish [ 2.3 MB ]
pdf ICC-ES ESR-3056 Spanish, Spanish [ 2.2 MB ]

Features & Applications

Features

  • Time and labor-saving fastening solution especially suited for seismic, cracked concrete and grout filled CMU applications requiring an ICC approval
  • Anchor coating meets ASTM B695 Class 55 for added corrosion resistance
  • Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
  • Optimized thread design for exceptional setting performance, superior load values and reduced edge distances and spacing
  • Fully removable anchoring solution for use with standard ANSI-tolerance drill bits – no special tolerance drill bits required for these screw anchors

Applications

  • Structural steel applications where additional corrosion protection is needed

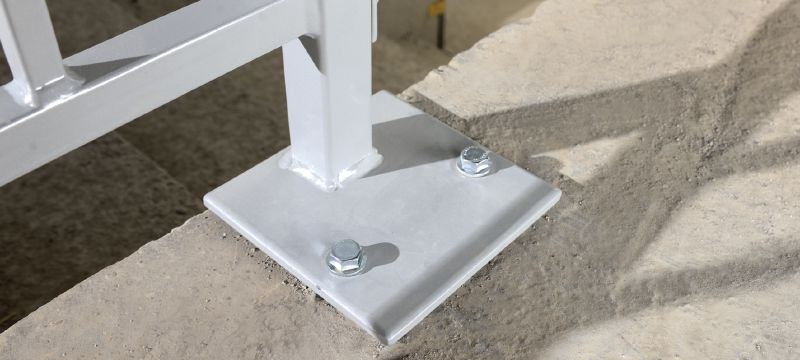

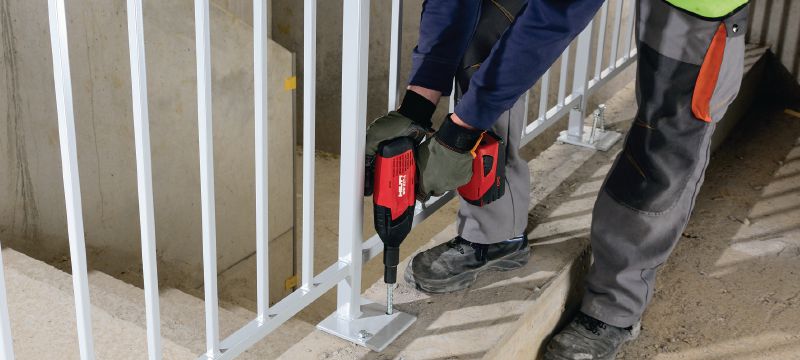

  • Attaching railings, handrails, safety barriers, guard rails and signs
  • Installing storage and rack systems
  • Secondary steel attachment
  • Pressure-treated wood (sill plates)
