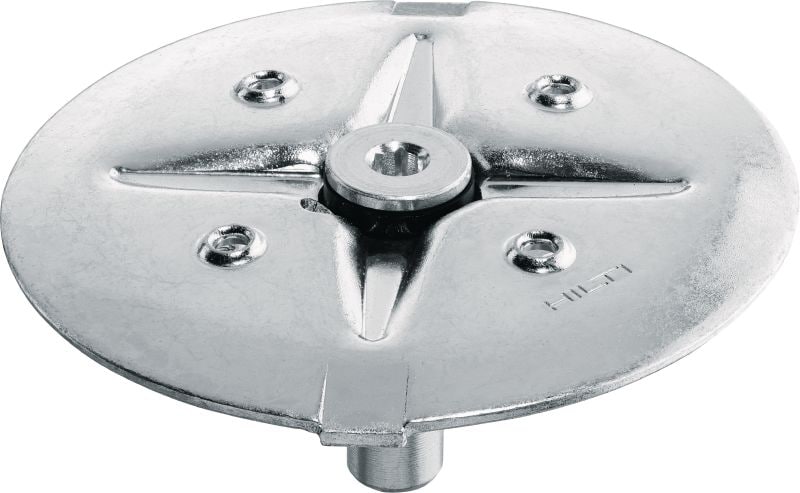

X-FCM-F L Grating fastener disc (large)
New productItem #r3271647
Wide grating fastener disc for threaded studs in mildly corrosive environments
- Application: Grating
- Approvals: ABS
- For use with (tools): DX 351
Features
- Duplex-coated disc provides corrosion resistance
- Locking tabs on the disc help to prevent self-loosening
- Non-slip disc surface
- Wide disc covers big grating mesh sizes
- Cordless solution
Applications

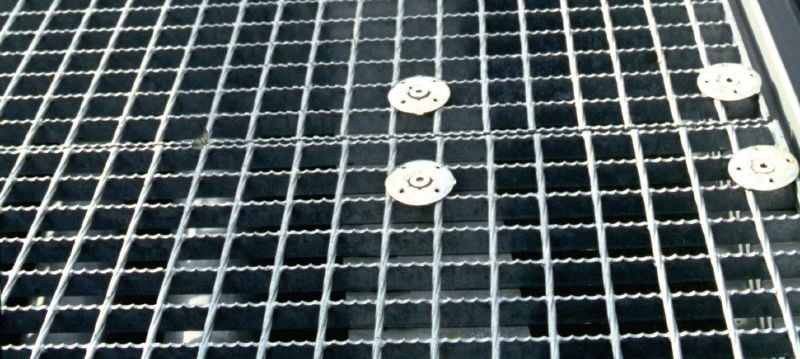

- Wide grating fastener disc for threaded stud in mildly corrosive environments
- Wide grating discs are suitable for up to 60 mm width square mesh size or up to 57 mm width rectangular mesh sizes
- Grating disc portfolio for 25-50 mm height
For approval or certificate information, please see individual items.
Product Variants & Sets
Technical Data
Documents
-
- ETA-24/0018 for X-FCM Grating fasteners and X-FCP Checker plate fasteners, English, German, [ 3 MB ]
- LR TypeApproval LR2410589TA for carbon steel powder-actuated fasteners, English, [ 1 MB ]
- ABS Approval 21-2146145-PDA for stainless steel powder-actuated X-CR, X-R and X-ST fasteners, English, [ 111 kB ]
-
- S-BT Data Sheet, English, [ 3.2 MB ]
- X-BT-GR, X-BT-MR Data Sheet, English, [ 2.7 MB ]
- S-BT Threaded Fastener Specification, English, [ 28 MB ]
- X-FCM-F L Data Sheet, English, Spanish, German, French, [ 422.8 kB ]
- Scheda tecnica X-FCM en, English, [ 241.5 kB ]
- Direct Fastening Technology Manual, English, [ 7 MB ]
