HAS-E-8.8 Anchor rod

Configurator
Technical Data
Documents
Features & Applications
Related Products
31668.tif

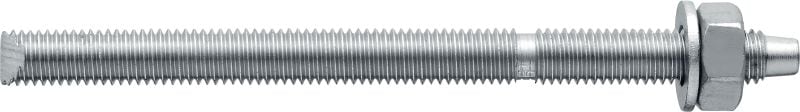

High-performance anchor rod for adhesive capsules (8.8 carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Material composition
  • Steel, 8.8 grade, zinc-plated (min. 5 µm)
Anchor size - D
  • M27
  • M30
  • M36
  • M39
Anchor length - L
  • 340 mm
  • 380 mm
  • 460 mm
  • 510 mm
Head configuration
  • Externally threaded
Pack size
  • 2 pc
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS Software
Yes
Type of fixing
Pre-fastening

Documents

Approval document
Instruction for use
pdf ETA 05/0255 for HVU adhesive capsules (ETAG 001-05, Option 7), German, English, Polish [ 12.3 MB ]
pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring application, English [ 868.2 KB ]
pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ETA-16/0180 HIT-RE 500 V3 Anchor EC2 50 years , French, English [ 3.5 MB ]
pdf ETA-19/0601 HIT-HY 200-A/R V3 Anchoring, English, German, Polish [ 8.9 MB ]

Features & Applications

Features

  • Designed for use with Hilti HVU capsules in solid concrete
  • Features a chisel tip to cut and mix the Hilti HVU capsule and embedment marking for easy setting
  • Short spacing and edge distances
  • Optimized design

Applications

  • Suitable for fastenings in concrete in combination with Hilti HVU capsules

For approval or certificate information, please see individual items.
