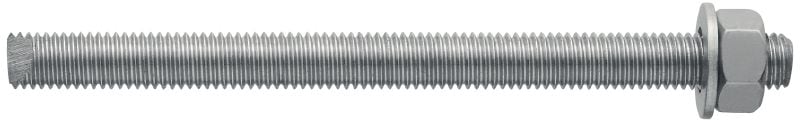

HAS-R 316 SS Anchor rod

Anchor rod, HAS-R, HAS-R (fractional), rod, stainless, stainless rod, HSA-R, HASR, 304 SS, SS, 304
00001275.tif

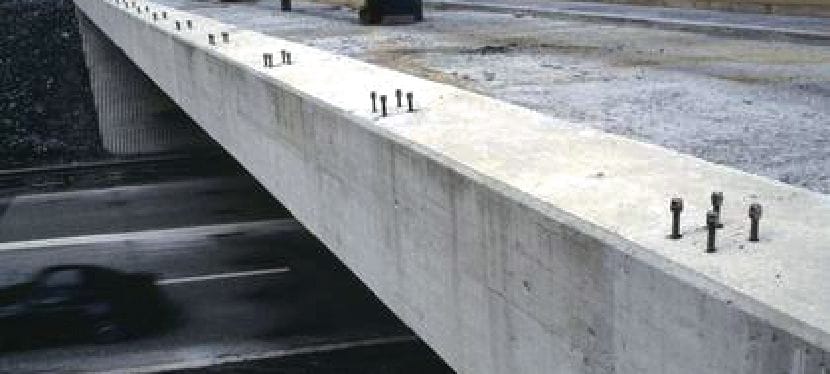

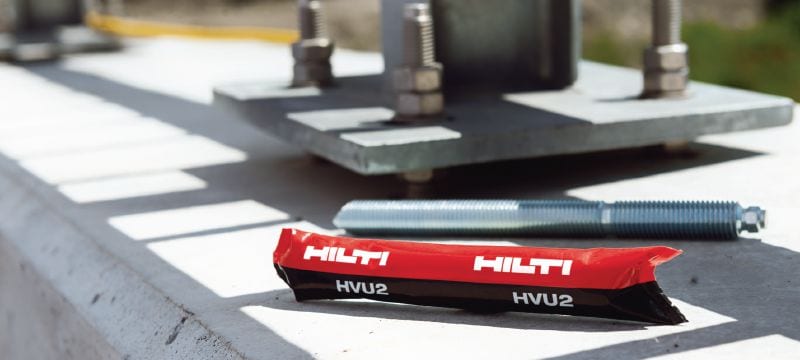

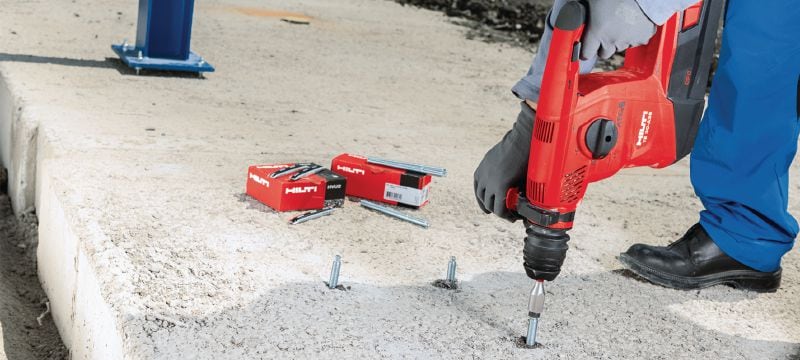

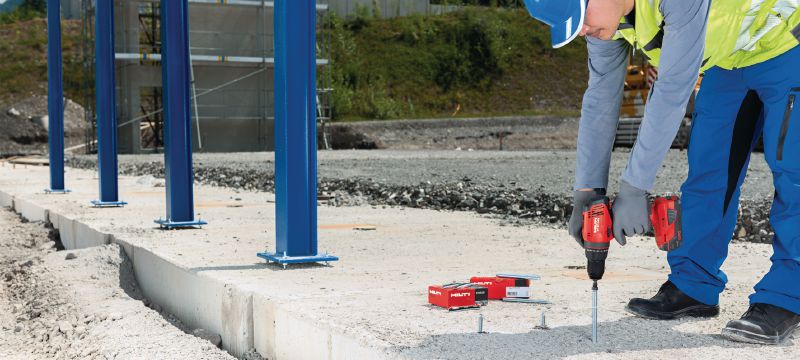

HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
Anchor rod, HAS-R, HAS-R (fractional), rod, stainless, stainless rod, HSA-R, HASR, 304 SS, SS, 304
00001275.tif
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture

High-performance anchor rod for adhesive capsules and injectable hybrid/epoxy anchors (316 stainless steel)

  • Material, corrosion: Stainless Steel, 316
  • Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Anchor size - D
  • 3/8 in
  • 5/8 in
  • 3/4 in
  • 7/8 in
  • 1 in
Anchor length - L
  • 194 mm
  • 203 mm
  • 305 mm
  • 406 mm
  • 508 mm
Material composition
  • Steel, A4 (SS316)
Head configuration
  • Externally threaded
Pack size
  • 2 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1,290.60 ILS

Technical Data

Material, corrosion
Stainless Steel, 316
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS Software
Yes
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry)
Type of fixing
Pre-fastening

Features & Applications

Features

  • Large range of anchor rod diameters (1/4" - 1")
  • Designed for use with HVU adhesive capsules in solid concrete or with Hilti HIT injectable adhesive mortar in various base materials
  • Features a chisel tip to cut and mix the HVU adhesive capsule
  • Head marking for easy verification of steel grade and rod length, even after installation
  • Free of oil and other contamination for highest performance with Hilti HIT injectable adhesive anchoring systems

Applications

  • Suitable for fastenings in concrete and other base materials in combination with the relevant Hilti HIT injectable mortars
  • Suitable for fastenings in concrete in combination with HVU adhesive capsules (3/8” to 1")
  • For outdoor applications or fastenings in corrosive environments
  • 1/4" and 5/16" rods without chisel tip for use with Hilti HIT-HY 70 injectable mortar

For approval or certificate information, please see individual items.
