VC 40L-X L-Class dust extractor

Univ. vacuum cleaner VC 40L-X 230V #2220067

Configurator
Technical Data
Documents
Features & Applications
Related Products

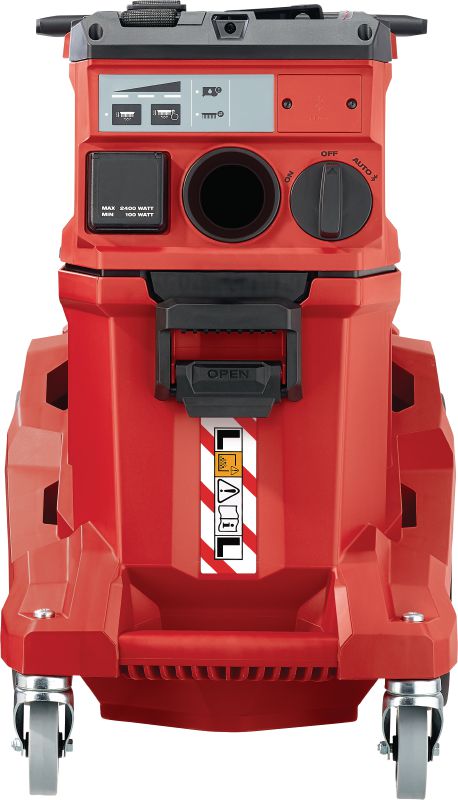

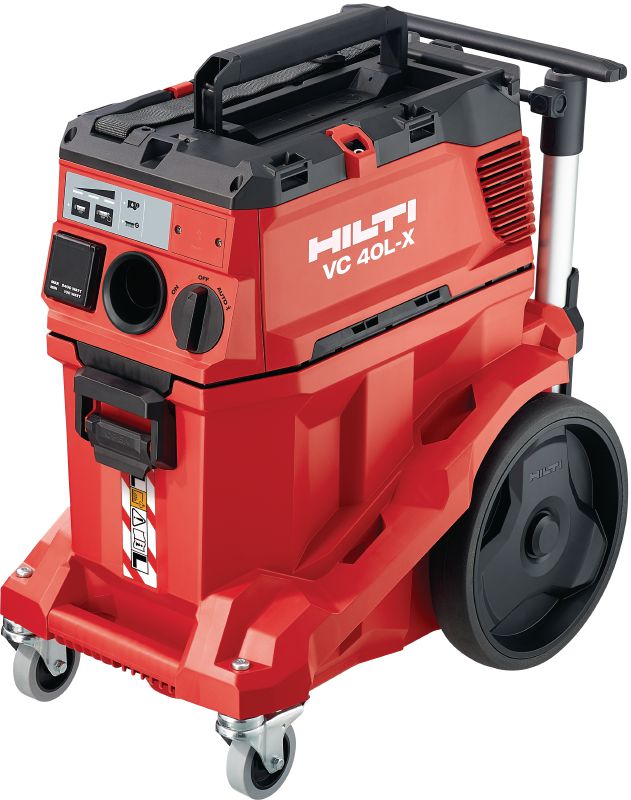

VC 40L-X universal vacuum cleaner

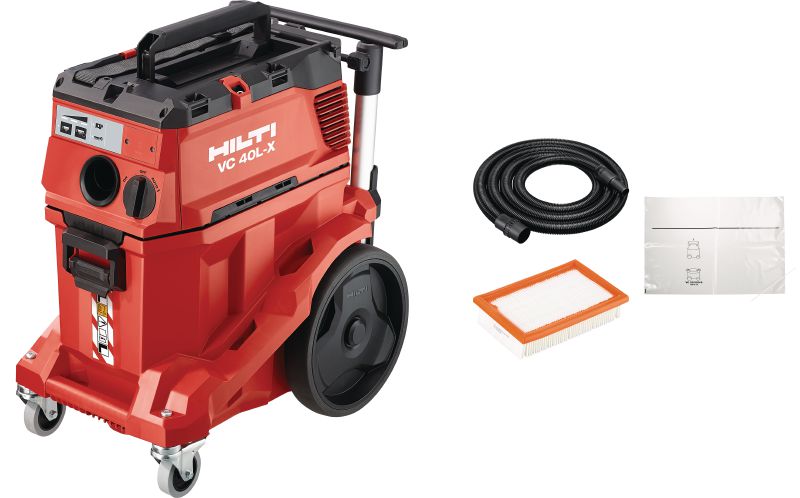

Still life picture of the vacuum cleaner VC 40L-X. Package content includes vacuum cleaner, hose, filter and dust bag.
VC 40L-X universal vacuum cleaner

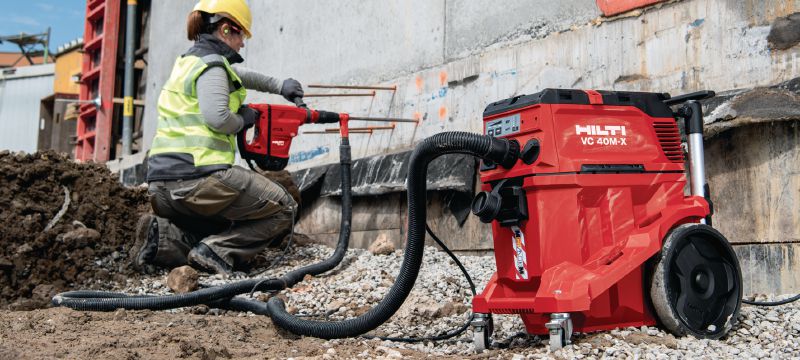

VC 40-X drilling with TE 60 and HDB

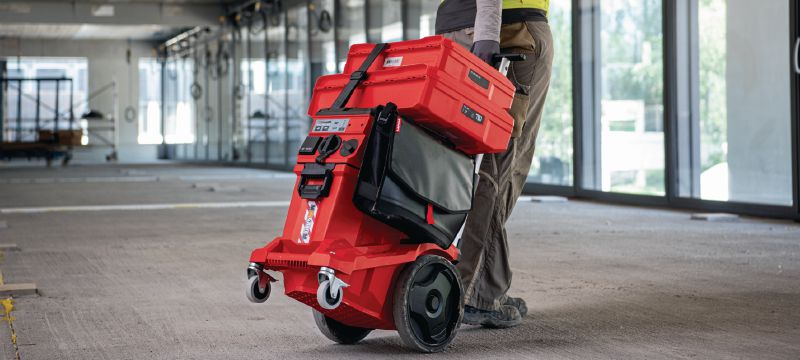

VC 40M-X transportation

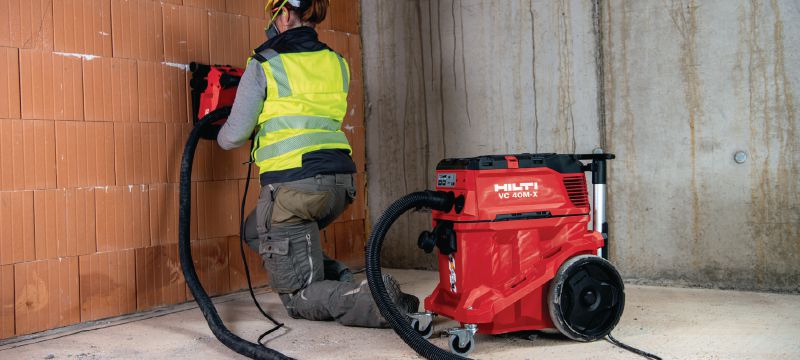

VC 40M-X slitting with DCH 150

Powerful dust extractor with large container and push-bar for connection with power tools and jobsite clean ups (wet & dry), 30l tank

  • Air Flow Motor Alone: 74 l/s
  • Air Flow at Hose End: 39 l/s
  • Max. Vacuum: 24.5 kPa

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
7,715.00 ILS
7,715.00 ILS / 1 each

Technical Data

Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
22.8 l
Dust capacity
34 kg
Dust class
L
Application
Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting, Cutting and grinding (heavy, above 125 mm / 5 in), Slitting, Water extraction
Integrated power socket
Yes
Max socket output power
2400 W
Power source
Corded
Rated input power
1200 W
Suction capacity
74 l/s
Rated input voltage
230 V
Supply cord length
7000 mm
Dimensions (LxWxH)
560 x 365 x 590 mm
Weight according to EPTA-Procedure 01/2003 without battery
14.4 kg

Documents

pdf Operating Instruction VC 20/40-X, Hebrew [ 5.5 MB ]
pdf Operating Instruction VC 20/40X, Arabic, Bulgarian, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Ukrainian, Serbian [ 4.6 MB ]

Features & Applications

Features

  • Sturdy universal vacuum cleaner built for construction work – integrated push-bar for mobility over longer distances and extra-durable components to withstand the harshest jobsite conditions
  • Extremely durable tyres – help to withstand water, heat and punctures when in use on construction sites
  • Hilti AirBoost automatic, adaptive filter cleaner – cleans the air filter as soon as necessary, keeping dust extraction performance consistently high
  • Performance display – live feedback on the vacuum cleaner's filter status and suction strength
  • Optional auto-start available – enables on/off via Bluetooth® remote control

Applications

  • Dust extraction from grinding, cutting, slitting, drilling and dry coring tools
  • Wet and dry cleaning
  • Removing slurry during wet coring applications
