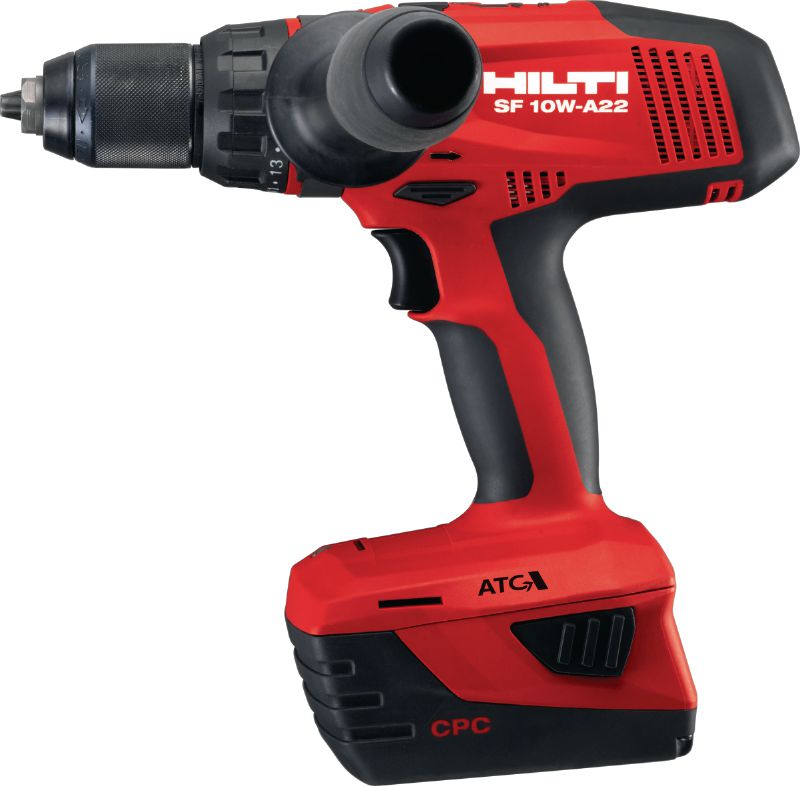

SF 10W-A22 ATC Cordless drill driver

Cordl. drill driver SF 10W-A22 case #2109823

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L062611.tif
L063748.tiff
L063728.tiff

Ultimate class 22V cordless drill driver with Active Torque Control and four-speed gearing for high torque in demanding applications in wood and other materials

  • Maximum torque (Soft / Hard Joint): 72 Nm (soft joint), 120 Nm (hard joint)
  • No load RPM: gear 1: 310 rpm; gear 2: 530 rpm; gear 3: 1210 rpm; gear 4: 2100 rpm
  • Chuck clamping range: 2 - 13 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
3,675.00 ILS
3,675.00 ILS
/
1 each

Technical Data

Maximum torque (Soft / Hard Joint)
72 Nm (soft joint), 120 Nm (hard joint)
No load RPM
gear 1: 310 rpm; gear 2: 530 rpm; gear 3: 1210 rpm; gear 4: 2100 rpm
Chuck clamping range
2 - 13 mm
Number of gears
4
Torque increments
15
Dimensions (LxWxH)
264 x 92 x 259 mm
Tool body weight
1.87 kg
A-weighted emission sound pressure level
75 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
2.5 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 10W-A22 (02), Hebrew [ 2.5 MB ]
pdf Operating Instruction SF 10W-A22 (02), Bulgarian, Czech, German, Greek, English, Spanish, French, Croatian, Hungarian, Italian, Dutch, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Serbian [ 6.5 MB ]

Features & Applications

Features

  • Extremely powerful: high torque for the toughest applications
  • Extremely durable 4-speed all-metal gearing for high torque
  • Top speed of 2,100 rpm for fast drilling in 4th gear
  • The first Hilti cordless drill driver featuring Active Torque Control for greater safety and highest user confidence
  • Metal chuck sleeve for better handling

Applications

  • Drilling with spade bits up to 40 mm diameter in wood
  • Drilling with auger bits up to 50 mm diameter in wood
  • Cutting recesses and through holes using hole saws up to 152 mm diameter
  • Driving heavy-gauge wood screws
  • Driving screws up to 12 mm diameter and 400 mm in length in wood
