CP 660 Flexible firestop foam

קצף אינטמסנטי CP 660 325ml #203517

Firestop_Foam_CP_660/CFS-F_FX
Firestop_Foam_CP_660/CFS-F_FX
L069758.tiff

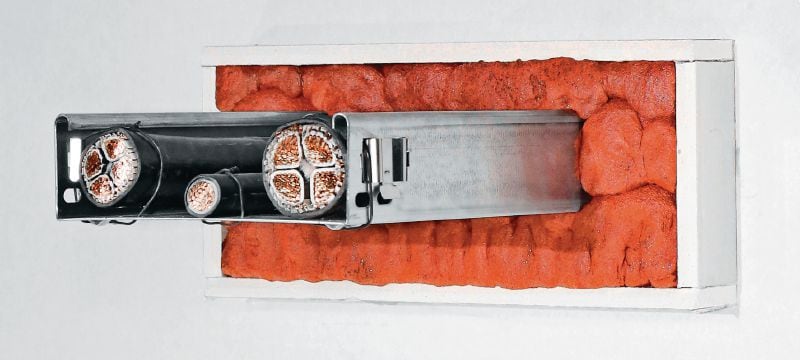

CP_660_CFS-F_FX,_Firestop_Foam_CP_660_CFS-F_FX_cable_tray

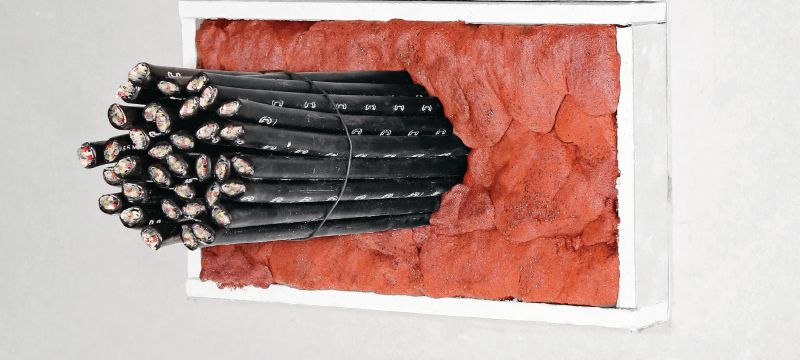

CP_660_CFS-F_FX,_Firestop_Foam_CP_660_CFS-F_FX_cable_bundle
Firestop Block Power

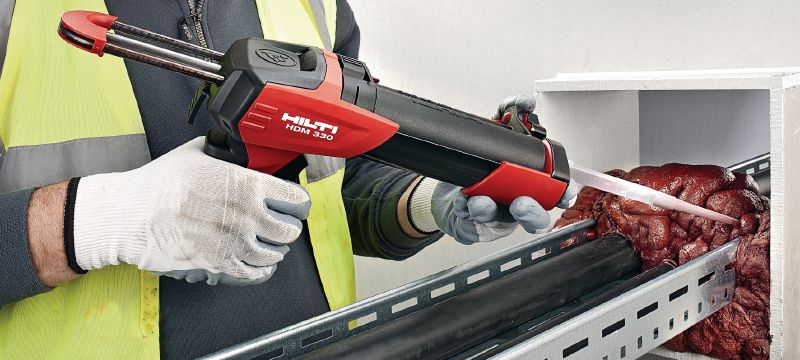

Easy-to-install flexible firestop foam to help create a fire and smoke barrier around for cable and mixed penetrations

  • Base materials: Concrete, Masonry, Drywall
  • Approx. cure time: 10 min
  • Application temperature range: 10 - 35 °C

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
110.25 ILS
110.25 ILS
/
1 each

Technical Data

Base materials
Concrete, Masonry, Drywall
Approx. cure time
10 min 1
Application temperature range
10 - 35 °C
Color
Red
Content per can/cartridge
325 ml
Foam Yield (up to)
2.1 l
LEED VOC
26 g/l
Storage and transportation temperature range
5 - 25 °C
  1. at 75°F/24°C, 50% relative humidity

Documents

pdf Material safety datasheet CFS-F FX / CP 660 (EN) [ 573.3 KB ]
pdf Material safety datasheet CFS-F FX / CP 660 (HE) [ 643.4 KB ]

Features & Applications

Features

  • Versatile – single cables, bundles, trays, trunking and mixed penetrations (metal and plastic pipes)
  • Future-proof – re-penetrable to allow future cable capacity increases
  • Easily shaped during curing phase – leftovers can be cut and reused
  • Single-sided installation possible
  • Simpler – no additional sealing or backfilling material needed

Applications

  • Electrical: Cable, cable bundles, cable trays and cable trunkings. Mixed penetrations. Repenetration of single cables. Combi approvals with CFS-BL blocks especially for large openings or special segment applications (telecom, industrial)
  • Mechanical: Non combustible (metal) pipes with mineral wool / non flammable insulation. Small combustible (plastic) pipes. No smoke/gastight additional sealing and no backing material required.
  • Can be used for LAR applications
  • Combustable pipes up to 110 mm, with firesetop collar
  • Conduits and conduit bundles
