CP 620 Firestop foam

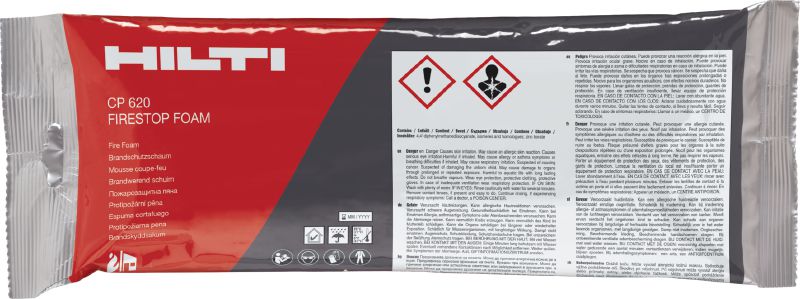

sales bag CP620, r1002

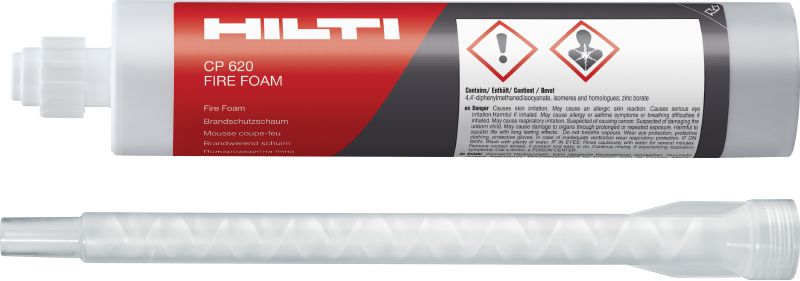

CP620 cartridge, r1002

CP620 cables wo ID plate

CP 620 Fire Foam,expanding firestop foam,barrier,picto

sales bag CP620, r1002

CP620 cartridge, r1002

CP620 cables wo ID plate

CP 620 Fire Foam,expanding firestop foam,barrier,picto

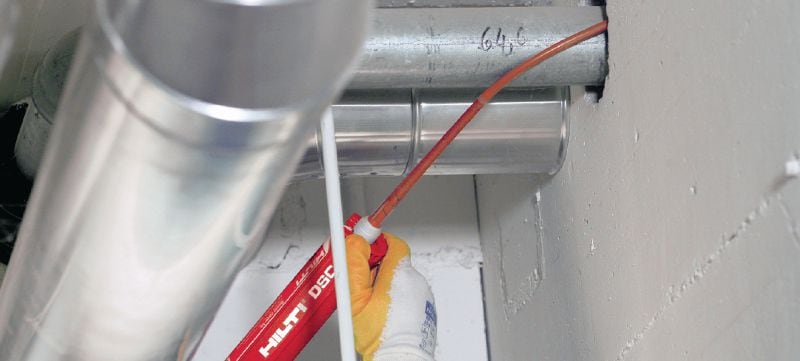

Rigid and fast-curing firestop foam with excellent water resistance to help create a fire, smoke and moisture barrier around cable and mixed penetrations

Base materials: Concrete, Masonry, Drywall
Application temperature range: 10 - 30 °C
Color: Red

Technical Data

Base materials

Concrete, Masonry, Drywall

Application temperature range

10 - 30 °C

Color

Red

Content per can/cartridge

300 ml

Foam Yield (up to)

1.9 l

LEED VOC

1.3 g/l

Storage and transportation temperature range

5 - 25 °C

Documents

Features & Applications

Features

Adheres to concrete, drywall and masonry
Approval for virtually any transit type – cables, trays, conduits and pipes (metal and plastic)
Suitable for complex and difficult-to-reach applications – single-sided installation possible and no reinforcing material needed
Fast curing in less than 10 minutes
Mold, mildew, water and vapor resistant

Applications

Concrete, drywall and masonry

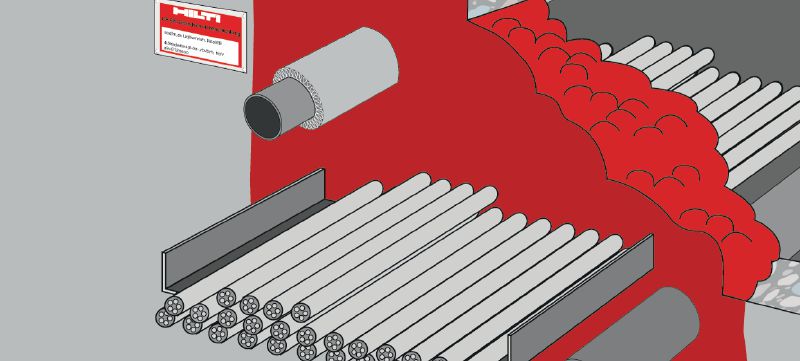

Multiple and mixed penetrations

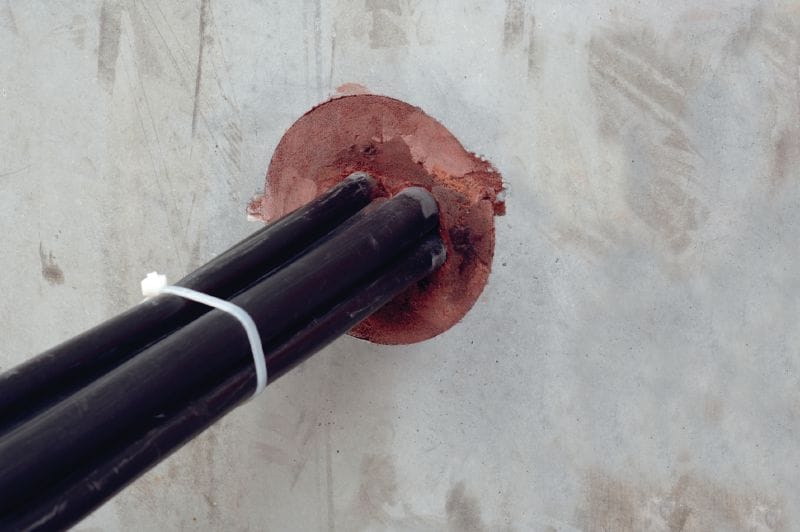

Single cables, cable bundles and cable trays

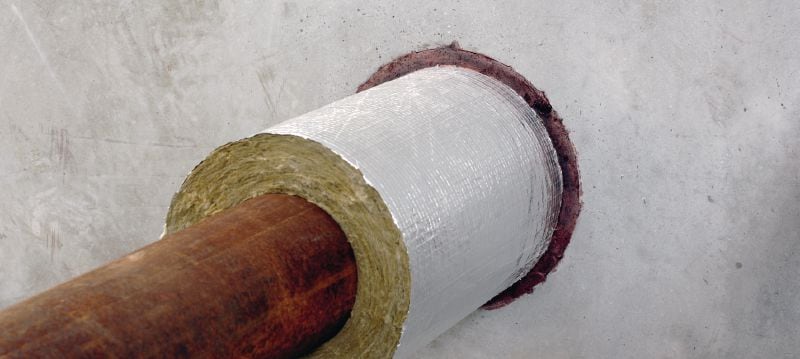

Metal pipes
Suitable for irregular and difficult-to-reach openings

For approval or certificate information, please see individual items.
