X-BT M10 Threaded studs

Threaded stud X-BT M10-24-6 SN12 #377078

Configurator
Technical Data
Documents
Features & Applications
Related Products
General applications: Floorplate fastening X-BT Threaded fasteners, also available without sealing washer adapted
27783.tif

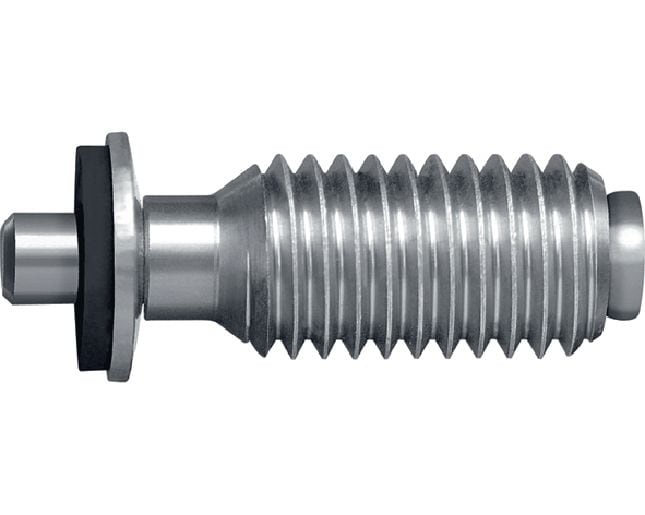

Threaded stud for multi-purpose fastenings on steel in highly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Customers also searched for threaded stud, coated steel studs, blunt tip stud, stainless stud or stainless threaded stud.

Choose options

Thread size
  • M10
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
2,765.00 ILS
27.65 ILS
/
1 each

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental Conditions
Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor, rural or urban environment with low pollution, Indoor environments with temporary condensation, Dry indoor, Outdoor temporary applications
Material
Duplex stainless steel (1.4462)
Thread diameter
8 mm
Length
31 mm
Point type
Blunt tip
Approvals
ABS, DNV GL, ICC-ES, LR
Product Class
Ultimate

Documents

Technical information
Approval document
Documentation
Instruction for use
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • No reworking of base steel – corrosion protection remains intact
  • Versatile – suitable for use on most standard and high-strength construction steel
  • Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
  • Portable, cordless system – eliminates the need for long electrical cords
  • Fast – ideal for fastening directly to coated or treated steel

Applications

  • Fastening cable trays, channels, struts, light-duty electrical applications (T-bars, instrumentation panels, junction boxes), outfitting and much more
  • Fastening modular support systems to steel, base plates to steel, struts to steel
  • Fastenings to fire coated (PFP) beams
  • Designed for use on steel thicknesses of 8 mm (5/16") and above
