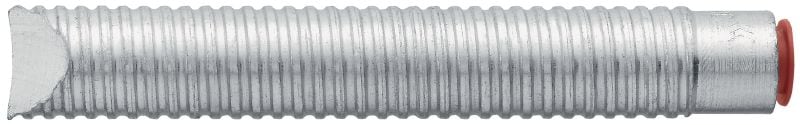

HIS-N Internally threaded sleeve

High-performance internally threaded insert for capsule and injectable hybrid/epoxy anchors (carbon steel)

Anchor size - D

Anchor length - L

Material composition

Head configuration

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 195.30 ILS

Material, corrosion

Carbon steel, zinc-plated

Environmental conditions

Dry indoor

Base materials

Concrete (cracked), Concrete (non-cracked)

PROFIS Software

Yes

Approvals / Test reports

ETA, Fire, ICC-ES report (concrete), ICC-ES report (masonry), Seismic

Type of fixing

Pre-fastening

Internally threaded to allow flush installation and easy removal of bolts
Features a chisel tip to cut and mix the Hilti HVU2 capsule (to be installed using the HIS-S setting tool)
Designed for use in solid concrete with Hilti HVU2 capsules and various other Hilti injectable adhesive mortars

Suitable for internally-threaded fastenings in concrete in combination with various Hilti injectable adhesive mortars, HVU2 capsules and 8.8 grade steel anchor rods

For approval or certificate information, please see individual items.
