MIC-TRC Connector

Threaded rod connector MIC-TRC M #233857

Threaded rod connector MIC-TRC M12-1/2", Threaded rod connector MIC-TRC M16, r3597, r6207

IS_HNA_417_o.eps

Threaded rod connector MIC-TRC M12-1/2", Threaded rod connector MIC-TRC M16, r3597, r6207

IS_HNA_417_o.eps

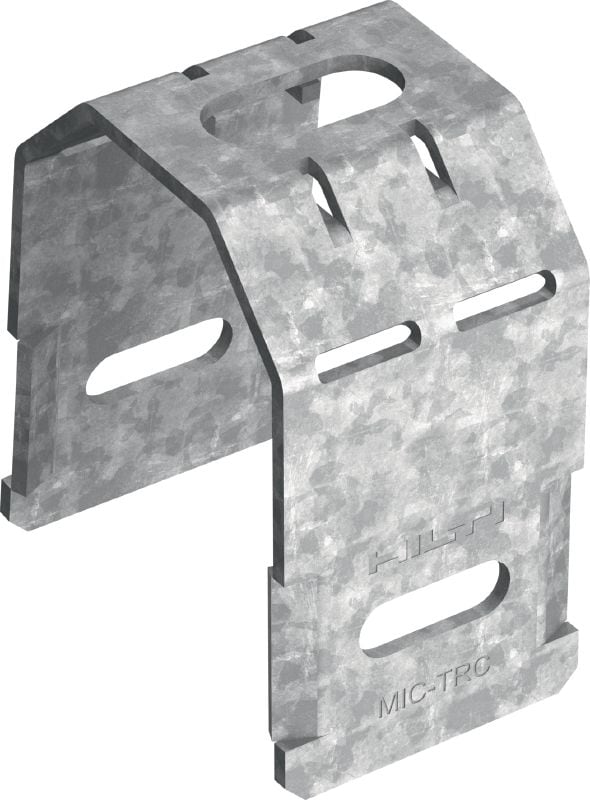

Hot-dip galvanized (HDG) connector for fastening (M16) threaded rods to MI girders

Thread connection - M: M16
Weight: 0.9 kg
Material composition: Connector, Square washer: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Choose options

Thread connection - M

M16

Modular Girder Type

90, 120

Pack size

2 pc

Product options

Quantity

Pack

Total Pieces

2

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

314.00 ILS

157.00 ILS / 1 each

Technical Data

Thread connection - M

M16

Weight

0.9 kg

Material composition

Connector, Square washer: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

69 Nm

Documents

Features & Applications

Features

Easy to install
Opposite side of MI girder can still be used for other applications
Connector can be used on top or bottom of MI girder
Height adjustable – 30 mm with MI-90 and 15 mm with MI-120
MQ strut channel fits between MIC-TRC thread connector and MI girder

Applications

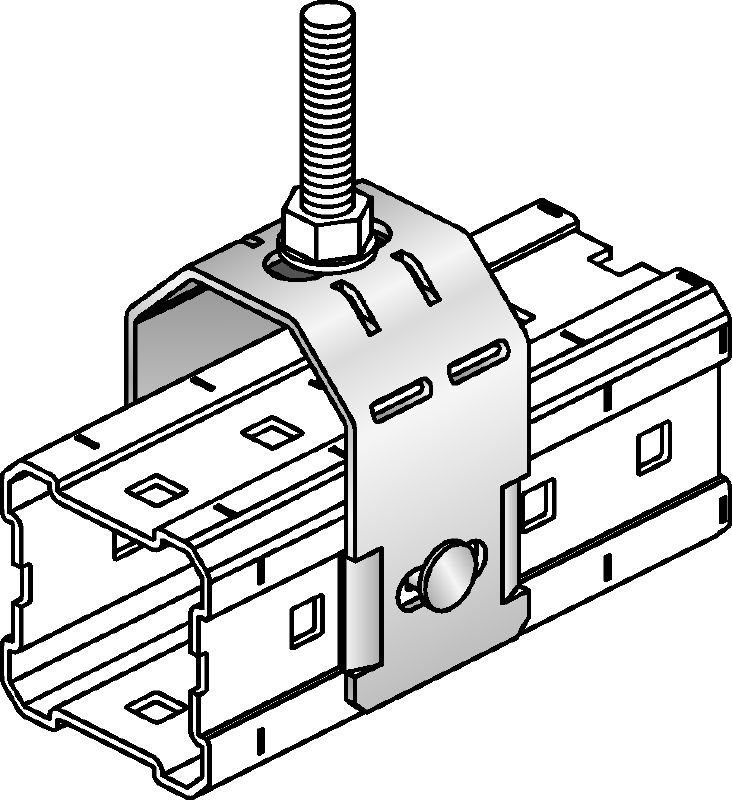

MI connector for threaded rods

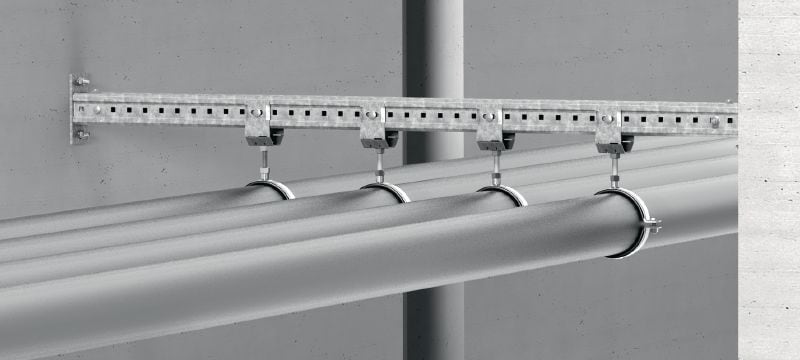

MI connector for pipes
