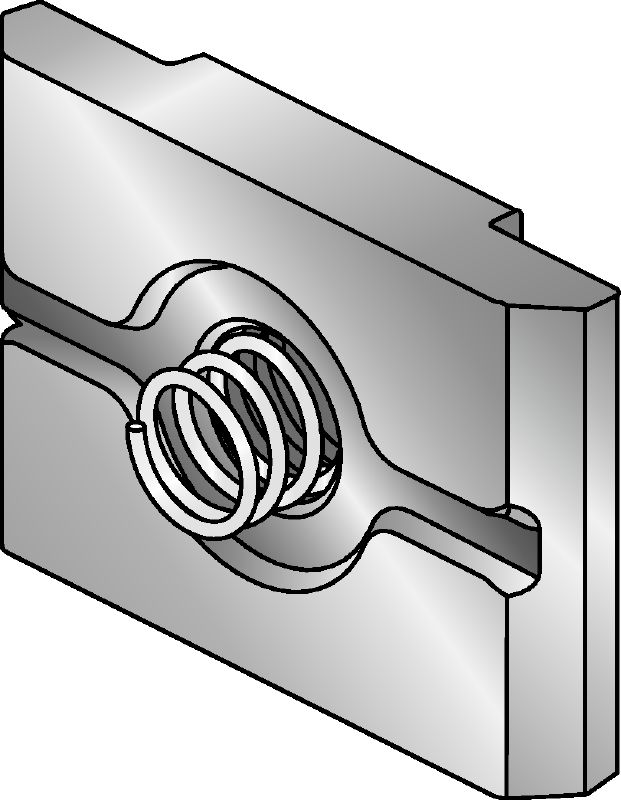

Hot-dip galvanized (HDG) plate for easier fastening and one-handed adjustment of MI and MIQ connectors

  • Material composition: Plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Spring: EN 10270-3
  • Surface finish: HDG: 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

14599.eps
IS_HNA_426.eps
Material composition
Plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Spring: EN 10270-3
Surface finish
HDG: 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Single-handed installation thanks to integrated anti-rotation device
  • Hand plate for single-handed adjustment of the connection

Applications

  • Fastening connectors that are part of the MI and MIQ modular support systems

For approval or certificate information, please see individual items.
