MIC-BA /H Connector

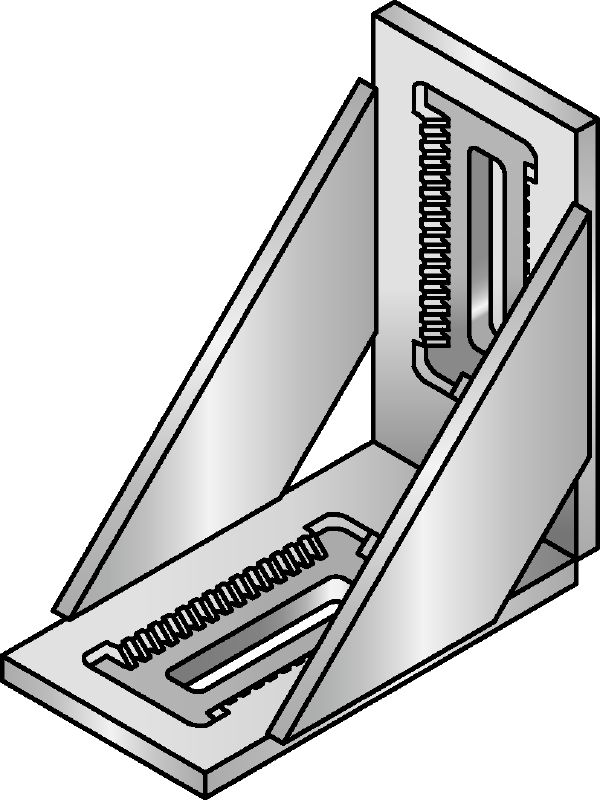

MIC-BA & MIC-BAH - Connector
Connector
Connector
MIC-BA & MIC-BAH - Connector

Ultimate hot-dip galvanized (HDG) connectors offering highest versatility within the MI modular system

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth Plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Backing plate, Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth Plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector min 55 µm - DIN EN ISO 1461; Backing plate, Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Provides an ultra-strong and rigid connection for heavy-duty applications
  • 50 mm (2") initial adjustability for rapid assembly
  • 5 mm (0.2") fine adjustment providing increased flexibility
  • Compact design for quick, easy installation in multiple configurations
  • No welding required – for faster, more efficient installation

Applications

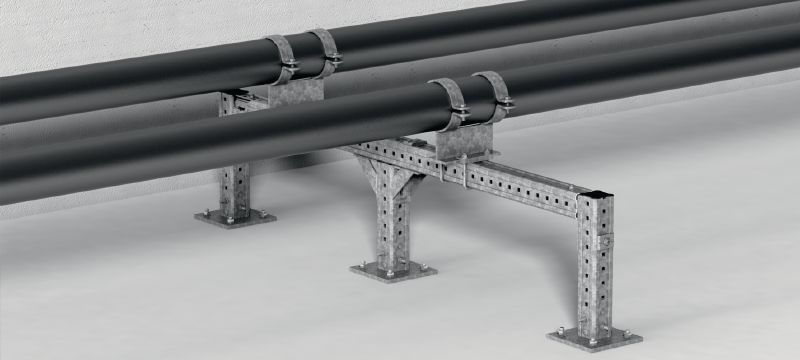

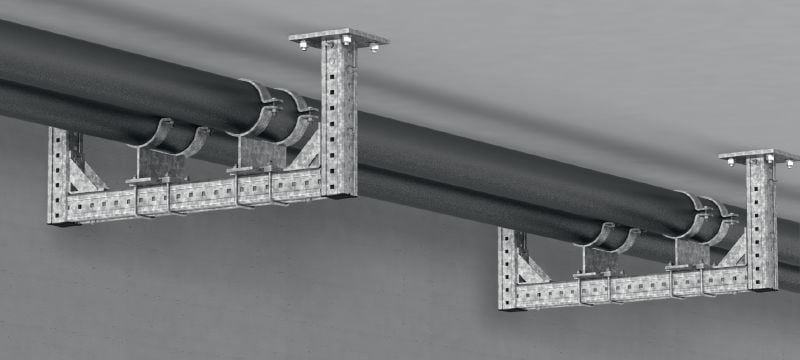

  • Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
  • Connector is installed externally on MI girders
  • Can be used as an opposing pair for an ultra-rigid connection
  • Suitable for use with MI 90 or MI 120 girders
  • Highly versatile part that can be used for numerous configurations including 3D structures

For approval or certificate information, please see individual items.
