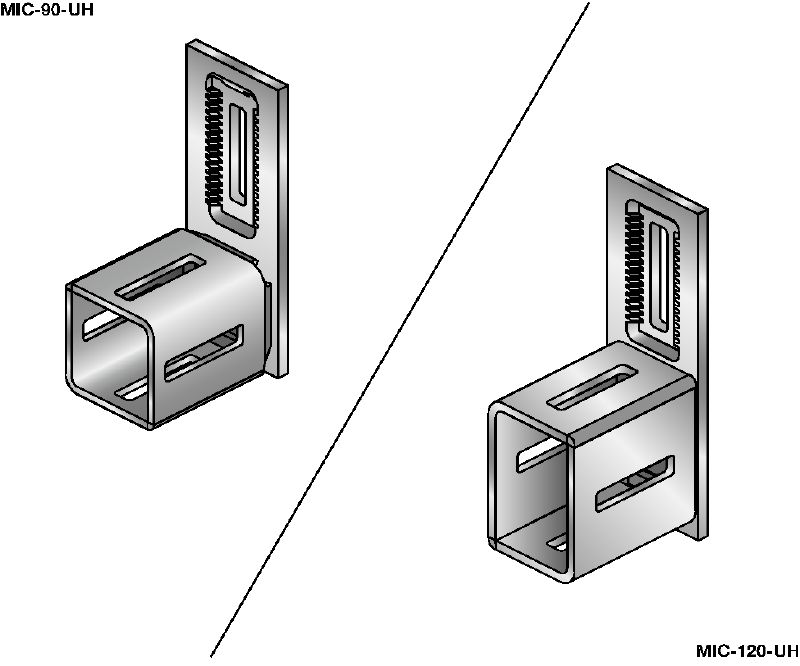

MIC-UH Connector

Standard hot-dip galvanized (HDG) connector for fastening MI girders to one another

Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

50 mm (2") initial vertical adjustability for rapid assembly
5 mm (0.2") fine vertical adjustment for increased flexibility
25 mm (1") horizontal adjustability possible thanks to the slot in the connector
Connector comes with self-locking nuts to help protect against vibration
Designed for fast, one-person installation

Applications

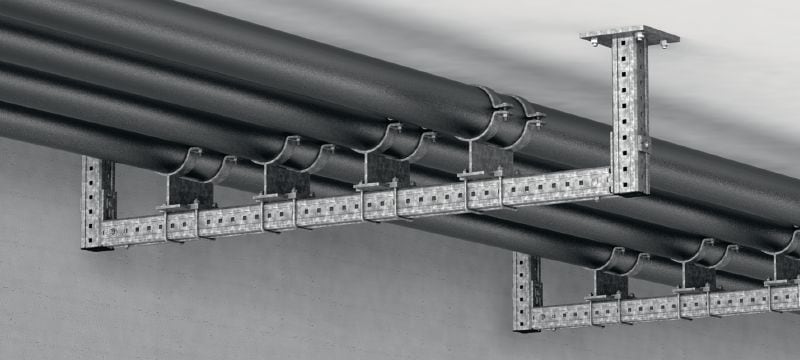

Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
Installing MI girders between two walls
Highly flexible connector for multi-purpose applications
High shear load capacity for non-cantilever structures
Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
