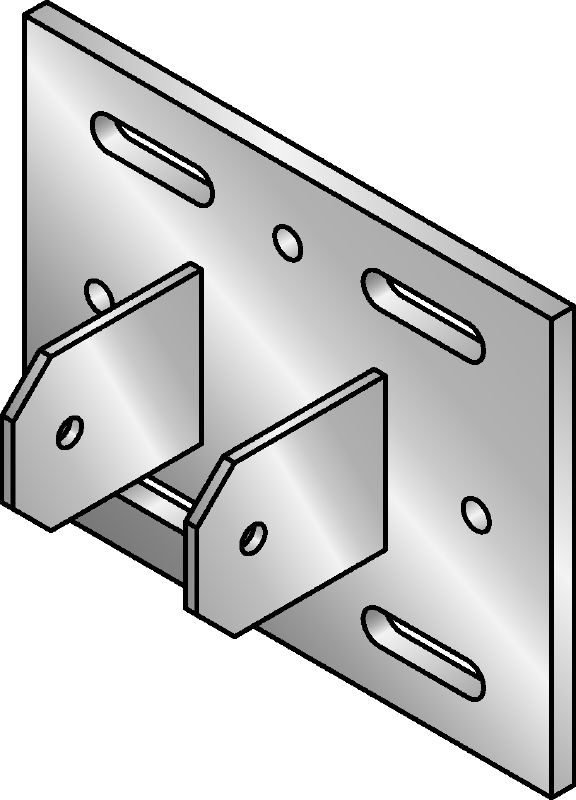

MIC MAH Connector

Hot-dip galvanized (HDG) multi-angle connector for fastening MI girders to steel beams at an angle

Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Steel beam witdh

Modular Girder Type

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 2,640.00 ILS

Technical Data

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Eliminates the need for welding – even in industrial and heavy commercial applications
Direct connection to standard steel beams
High-strength part designed for extra-high application loads

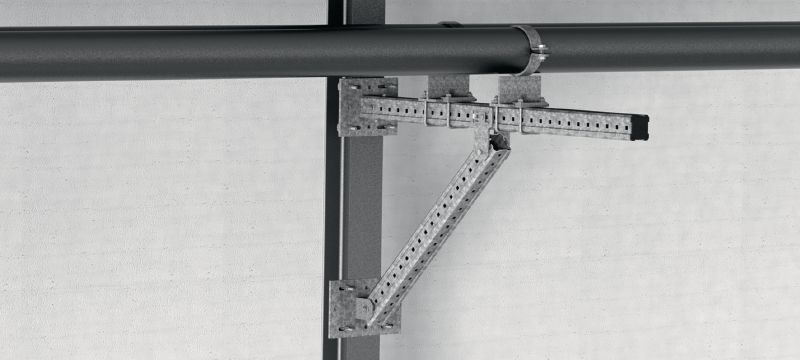

Bracing support typicals for additional capacity
Designed to provide extra-high load capacity
Designed to cover a large range of standard flange widths for heavy-duty applications
Suitable for use with the MI-SGC M16 beam clamp
Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
