MI-SGC M16

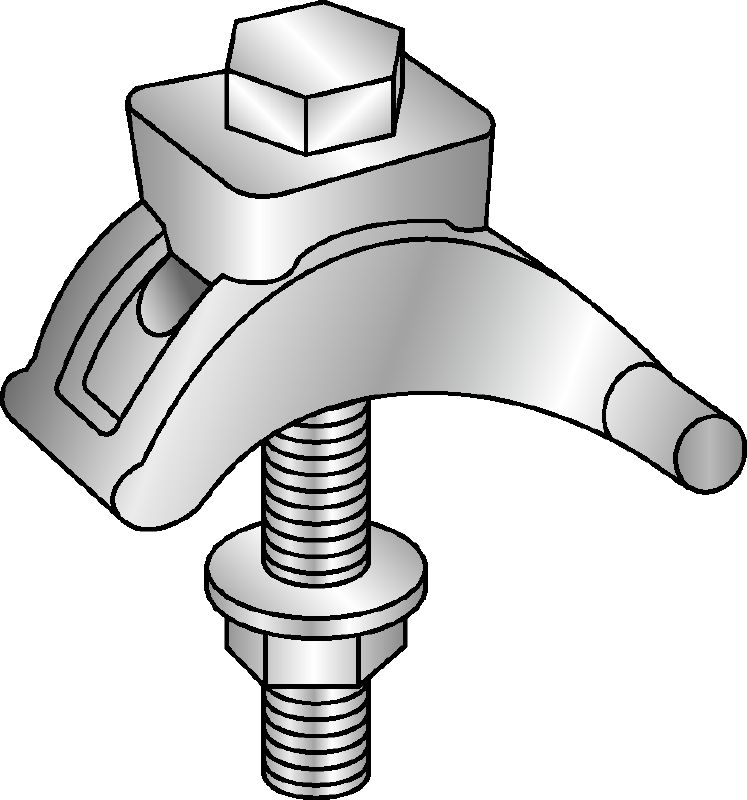

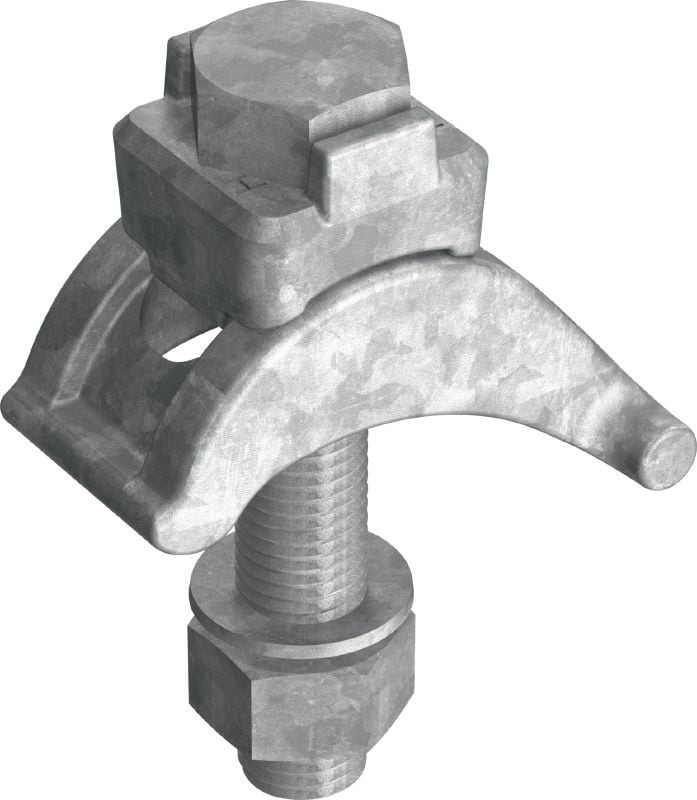

Beam clamp MI-SGC-M16 #387398

Hot-dip galvanized (HDG) single beam clamp for connecting MI steel baseplates to steel beams

Thread connection - M: M16
Weight: 0.51 kg
Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8

Choose options

Thread connection - M

Pack size

12 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,561.00 ILS

130.08 ILS / 1 each

Technical Data

Thread connection - M

M16

Weight

0.51 kg

Material composition

Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

180 Nm

Wrench size

24 mm

Width - B

34 mm

Documents

Features & Applications

Features

Corrosion protection of steel beam is not damaged by beam clamp
Beam clamp is equipped with set of vibration-resistant washers

Applications

Compatible with steel beams with flange thicknesses from 12-28 mm and angle of up to 15°
