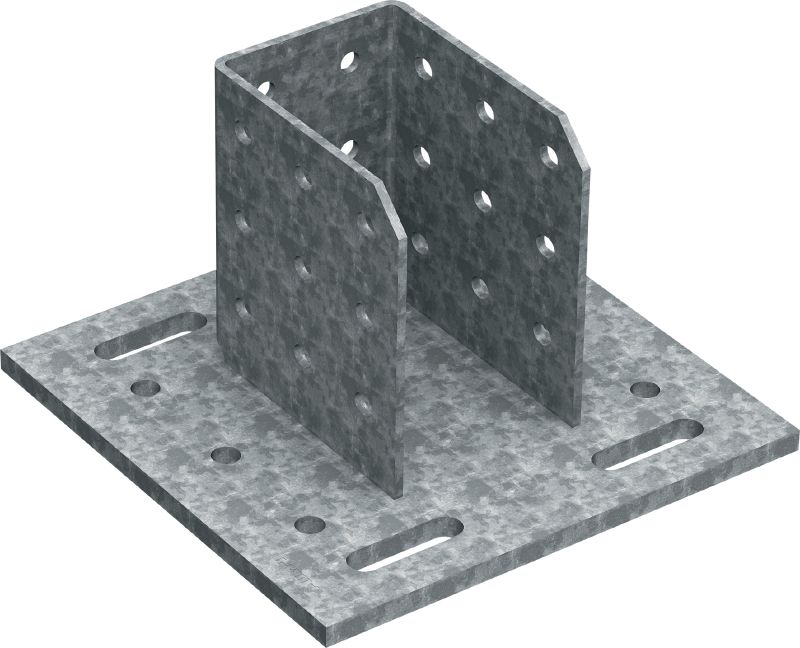

MT-B-GXL S1 OC Light-duty baseplate

Baseplate MT-B-GXL S1 OC #2272106

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT Base Connector
MT Base Connector

Base connector for fixation of MT-90 and MT-100 girder structures to steel, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Hot-dip galvanized - for outdoor use
  • Material thickness: 12 mm

Choose options

Pack size
  • 2 pc
 Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,598.00 ILS
799.00 ILS
/
1 each

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
12 mm
Weight
9.4 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Adjustable – four slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify metal framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

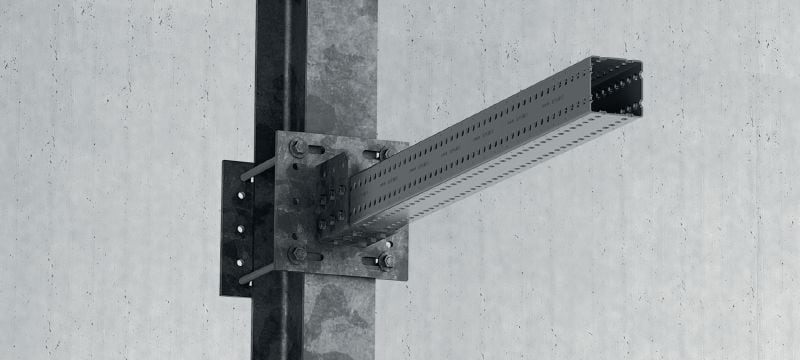

  • Fastening MT-90 and MT-100 girders to structural steel
  • Anchoring metal framing and MEP support structures with light loads to a base material
  • Suitable for use in moderately corrosive environments
