MIC-U-MA Connector
New productItem #r6193

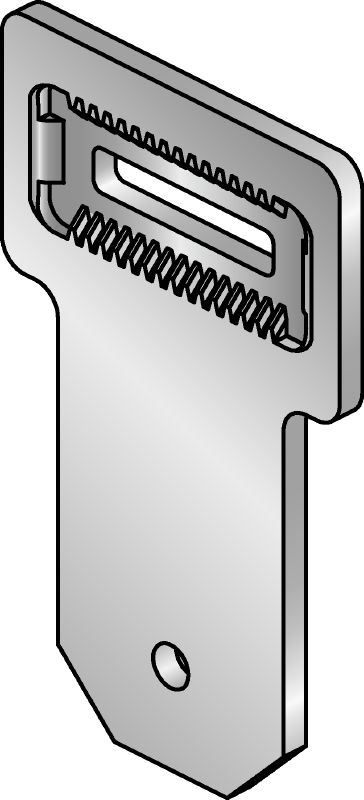

Hot-dip galvanized (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle
- Weight: 2.63 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Features
- Connector comes with self-locking nuts to help protect against vibration
- Can be finely adjusted by up to 5 mm
- Keyed hold for optimum transmission of forces and moments
Applications
- For supports/corner struts at angles between 0° and 180°
Product Variants & Sets
Technical Data
Documents
-
- Instruction for use MIC-U-MA,MIC-SA/SB/SC/CU-MA, Chinese (traditional), Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 863.2 kB ]
