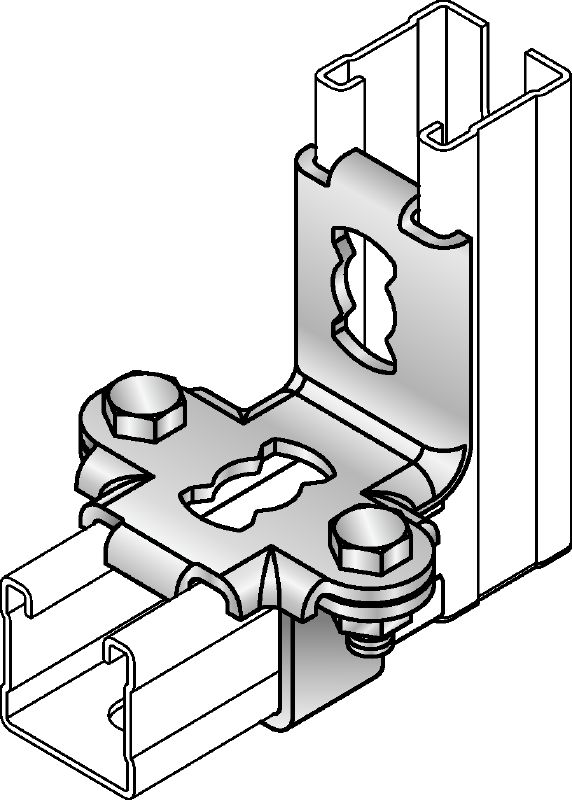

MQS-W Channel connector

Galvanized pre-assembled strut channel connector for use in braced MQ channel trapezes for seismic applications

Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish: Indoor Coated - Electro galvanized
Material thickness: 4 mm

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 507.00 ILS

Technical Data

Material composition

S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8

Surface finish

Indoor Coated - Electro galvanized

Material thickness

4 mm

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Designed for quicker, easier attachment to MQ modular support systems
Very high load capacity thanks to reinforcing bar – for optimal transfer of seismic loads
Holes allow the seismic brace to easily rotate according to the type of bracing required – transversal, longitudinal or 4-way
Three versions available to fit all main channel sizes (MQ-41, MQ-72, MQ-41D)

Installing pipes, cable trays and air duct supports in seismic-relevant areas
Fastening MQS-AC or MQS-AB seismic hinges to MQ modular support systems in seismic strut channel trapeze applications

For approval or certificate information, please see individual items.
