MQS-AB Rod brace connector

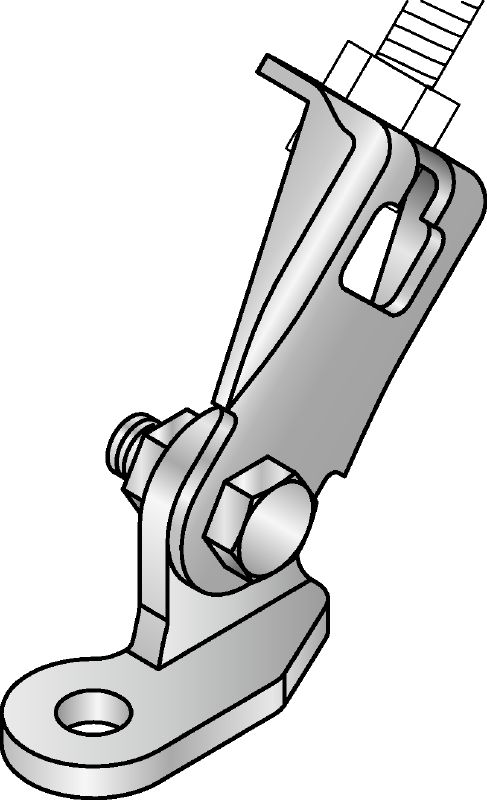

Hinge MQS-AB-8 #2083730

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQS_003_o.eps
LCG001325_v3.tiff

Galvanized pre-assembled threaded rod brace connector with increased installation flexibility for a wide range of seismic applications

  • Diameter - D: 9.4 mm
  • Material composition: DD11 - DIN EN 10111, S235JR - DIN EN 10025, Baseplate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Diameter - D
  • 9.4 mm
Pack size
  • 10 pc
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Diameter - D
9.4 mm
Material composition
DD11 - DIN EN 10111, S235JR - DIN EN 10025, Baseplate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
195 g

Documents

pdf Operating Instruction MQS B,AB, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 526 KB ]

Features & Applications

Features

  • Designed for quicker, easier attachment to MQ modular support systems
  • Maximum installation flexibility due to adjustable angle
  • Threaded rod can be easily inserted into the connector and locked by tightening the nut
  • High load capacity – engineered for optimal transfer of seismic loads
  • Can be anchored directly to the base material or fastened to the MQS-W seismic angle

Applications

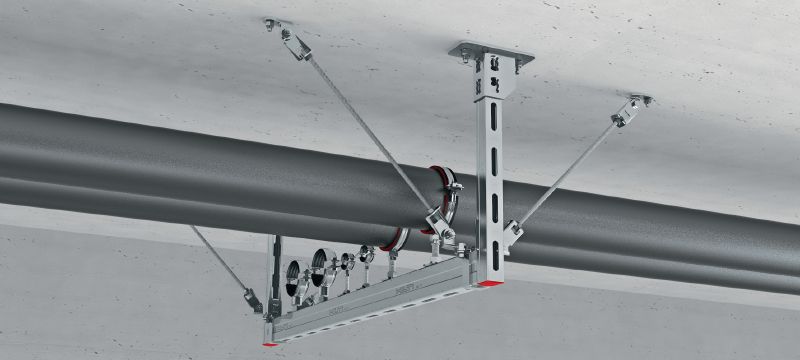

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications
  • Used for seismic bracing of large-diameter pipes directly fastened to the pipe clamps flanges
