MQS-W Seismic angle

Configurator
Technical Data
Features & Applications
Related Products

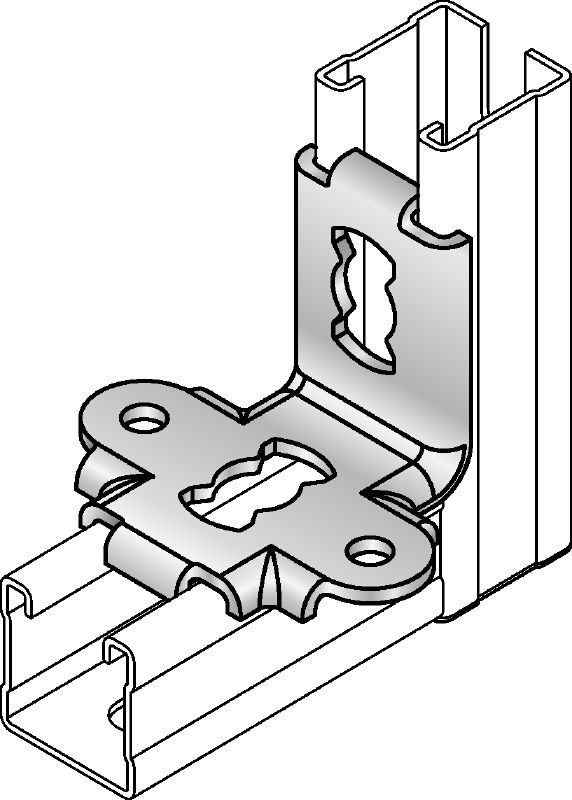

IS_MQS_004_o.eps
Seismic angle

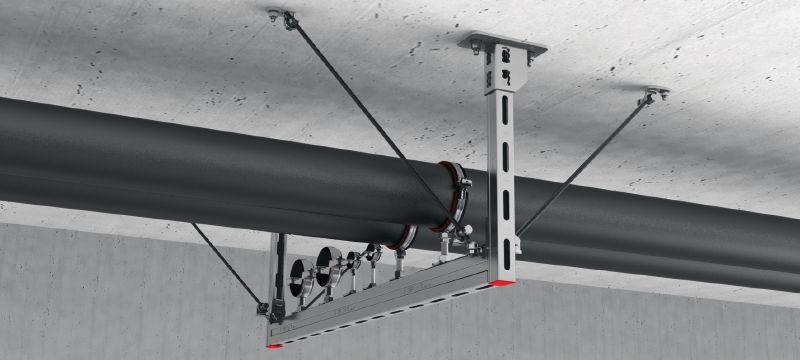

Seismic channel trapeze with rod bracing

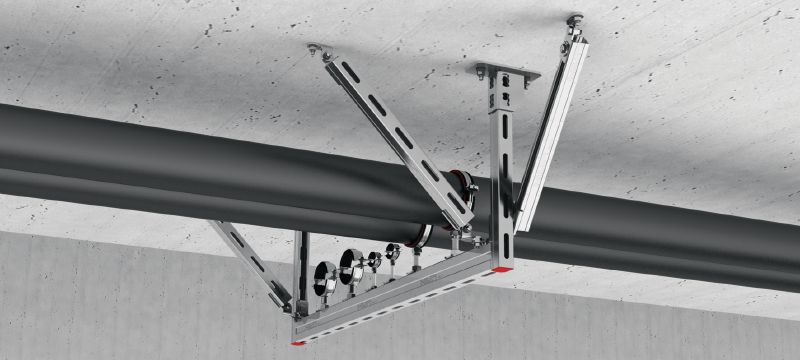

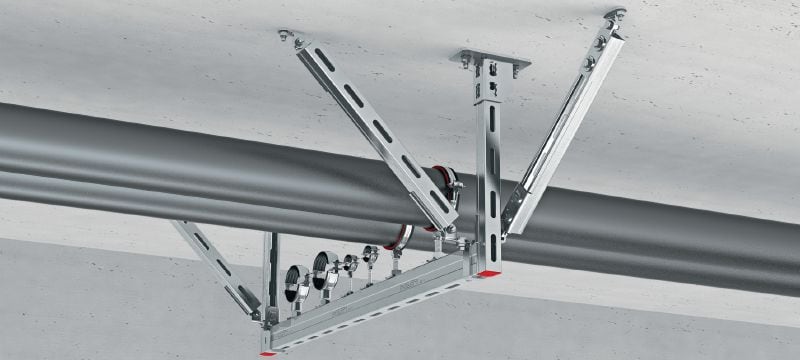

Seismic channel trapeze with channel bracing
LCG001324_v6.tiff

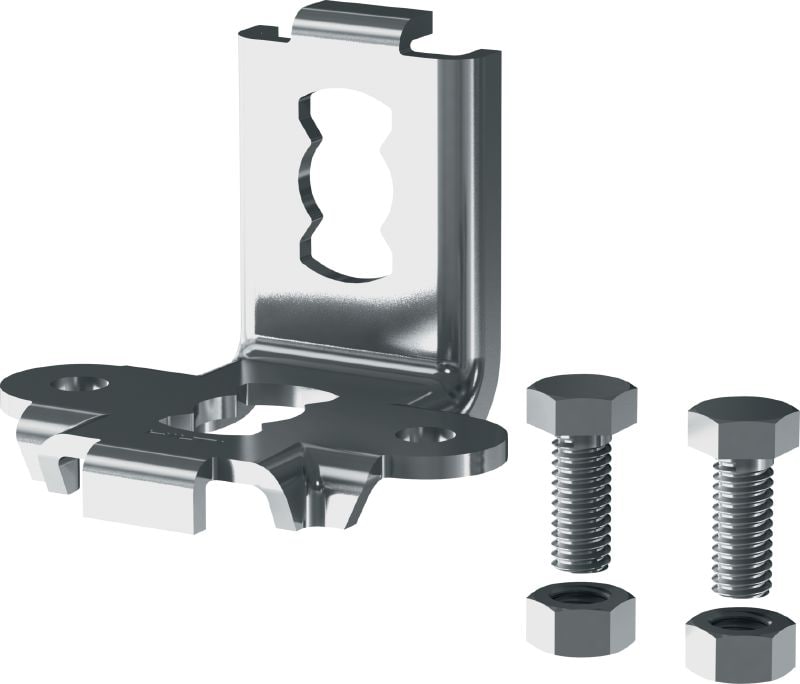

Seismic angle, r2288852, 2330879
IS_MQS_004.eps

Galvanized strut channel connector for use in braced MQ channel trapezes for seismic applications

  • Material composition: S275JR - EN 10025
  • Surface finish: Indoor Coated - Electro galvanized
  • Material thickness: 4 mm

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
S275JR - EN 10025
Surface finish
Indoor Coated - Electro galvanized
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Features & Applications

Features

  • Designed for quicker, easier attachment to MQ modular support systems
  • High load capacity – engineered for optimal transfer of seismic loads
  • Holes allow the seismic brace to easily rotate according to the type of bracing required – transversal, longitudinal or 4-way
  • Engineering support available – contact your local Hilti team for project-specific advice

Applications

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Fastening MQS-AC or MQS-AP seismic hinges to MQ modular support systems in seismic strut channel trapeze applications
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
