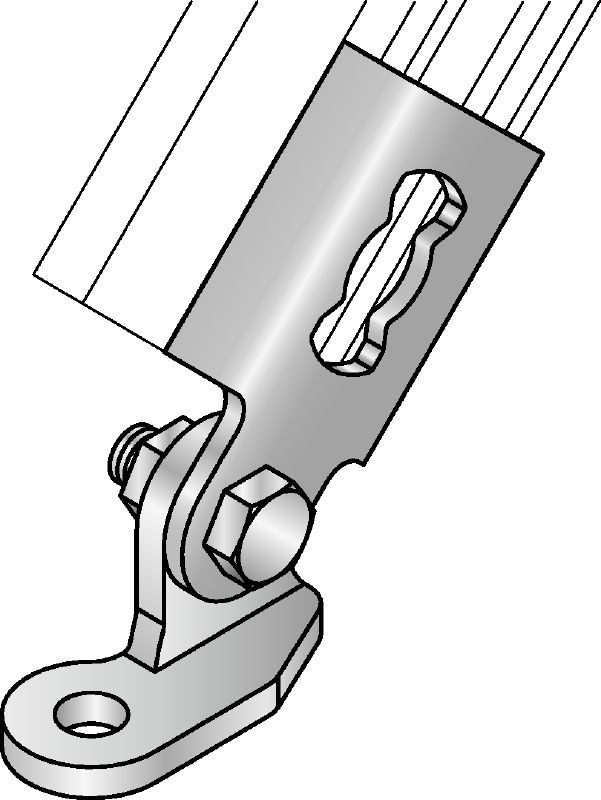

MQS-AC Channel brace connector

Galvanized pre-assembled channel brace connector with increased installation flexibility for a wide range of seismic applications

Material composition: Connector: S275JR - DIN EN 10025, Baseplate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish: Indoor Coated - Electro galvanized
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Diameter - D

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 366.00 ILS

Material composition

Connector: S275JR - DIN EN 10025, Baseplate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Designed for quicker, easier attachment to MQ modular support systems
Maximum installation flexibility due to adjustable angle
Single MQN connection to MQ modular support systems for medium-duty seismic loads
High load capacity – engineered for optimal transfer of seismic loads
Mounting holes in two sizes for a perfect fit with the most suitable anchor

Installing pipes, cable trays and air duct supports in seismic-relevant areas
Assembling seismic bracing using MQ modular support systems for a wide range of seismic applications

For approval or certificate information, please see individual items.
