MIA-BO U-bolt

Bow MIA-BO90-M12 #304840

Configurator
Technical Data
Documents
Features & Applications
Related Products
Bow MIA-BO90-M12, 304840
IS_HNA_414a_o.eps
System MI
14520.eps

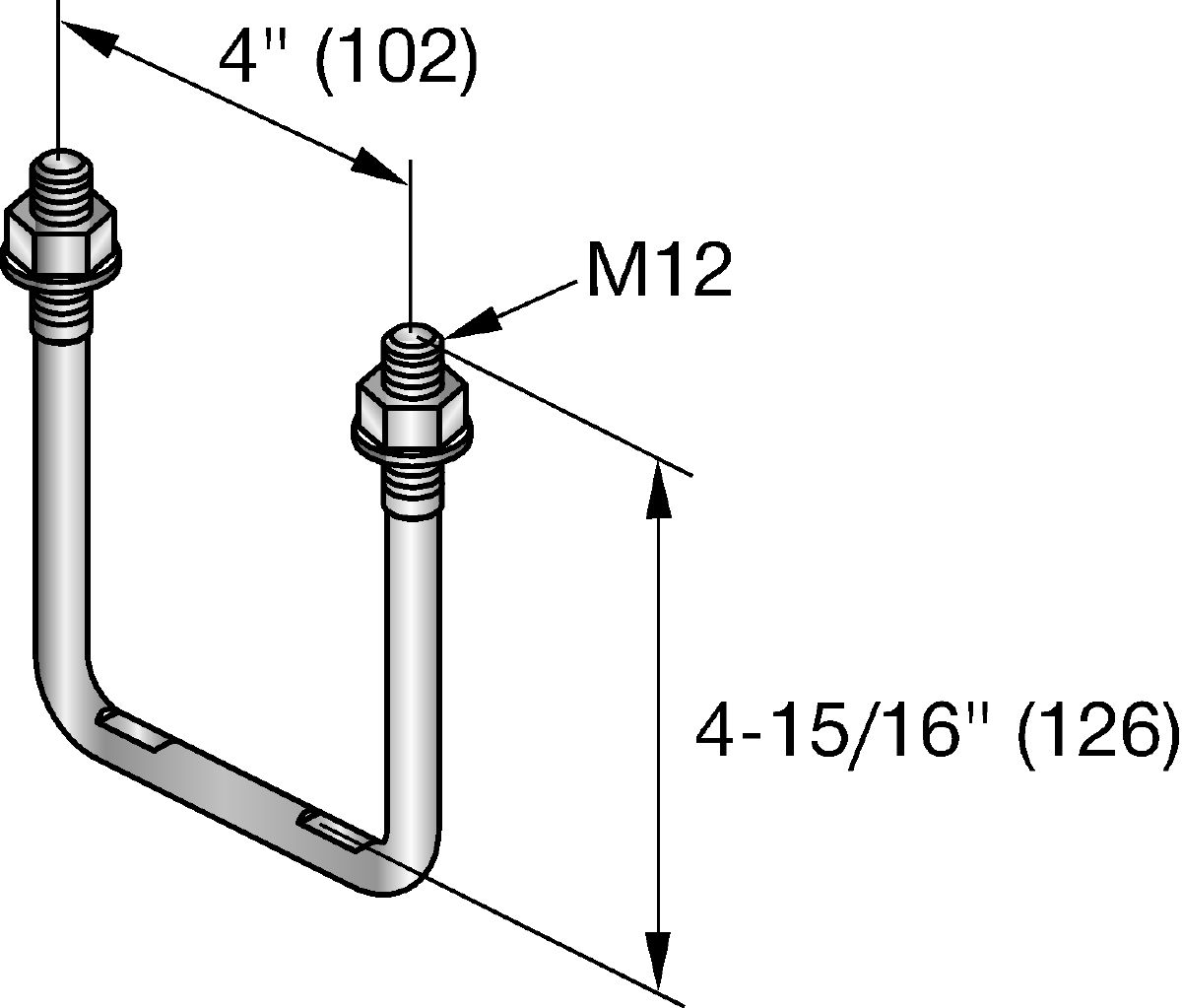

IS_HNA_414a.eps

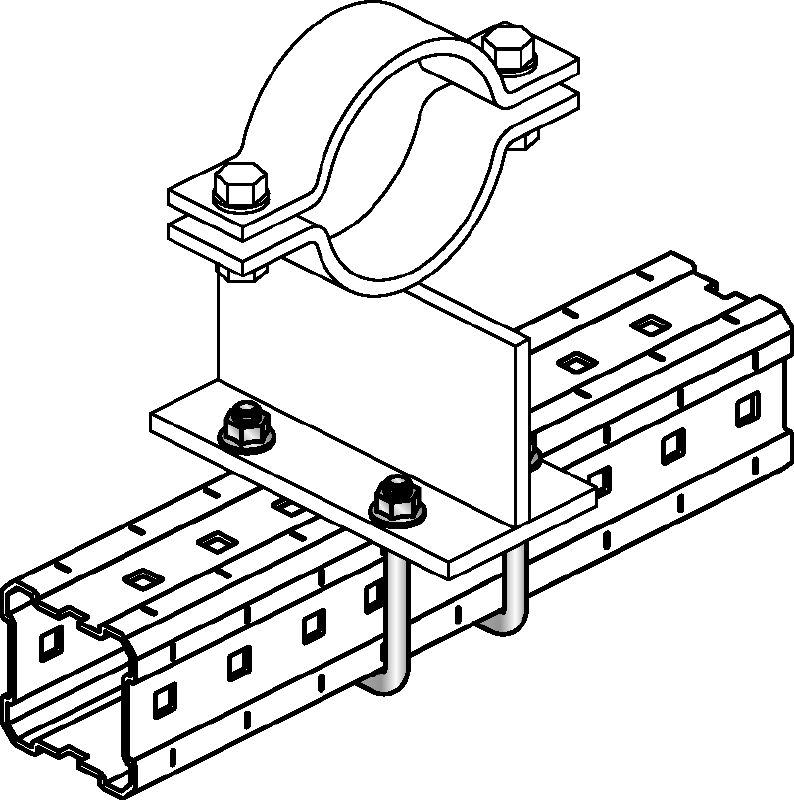

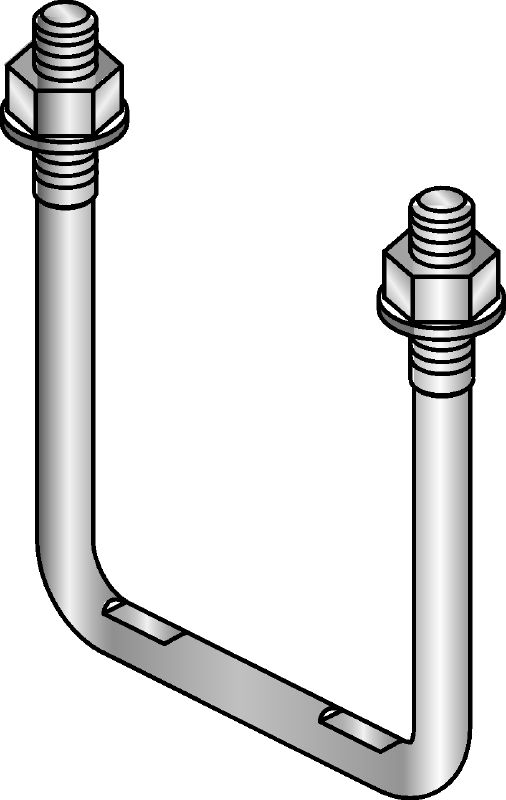

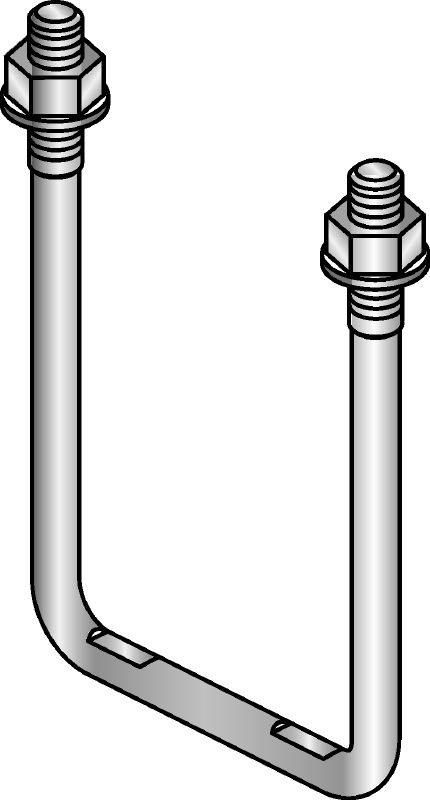

Hot-dip galvanized (HDG) U-bolt for fastening pipe shoes to MI girders

  • Advantage 01: Quickly and easily install pipe support system for light-duty fixed points
  • Weight: 0.58 kg
  • Material composition: U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8

Choose options

Modular Girder Type
  • 90
Pack size
  • 8 pc
 Product options
Quantity
Pack
Total Pieces
8
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,131.00 ILS
141.38 ILS
/
1 each

Technical Data

Details
Technical illustrations
Advantage 01
Quickly and easily install pipe support system for light-duty fixed points
Weight
0.58 kg
Material composition
U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8
Surface finish
HDG: 48 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Documentation
Instruction for use
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Quickly and easily install pipe support system for light-duty fixed points
  • Part of the MQ system

Applications

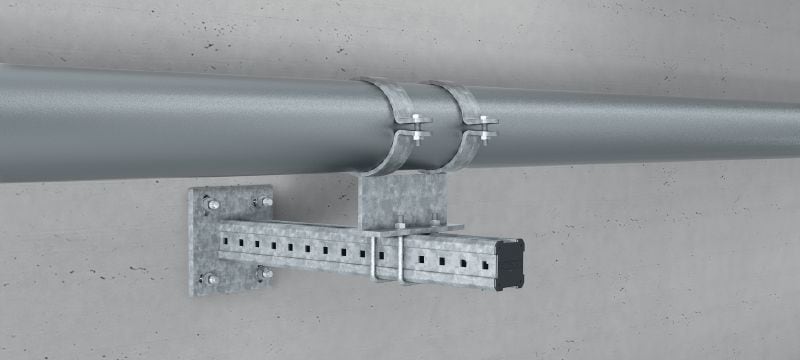

  • Fastening pipes, with clamping system for fixed supports
  • Installing light-duty fixed points
