MP-PS 4-2 Pipe shoe

Pipe shoe MP-PS L4-2 217-227 8" OC #2331033

Configurator
Technical Data
Documents
Features & Applications
Related Products

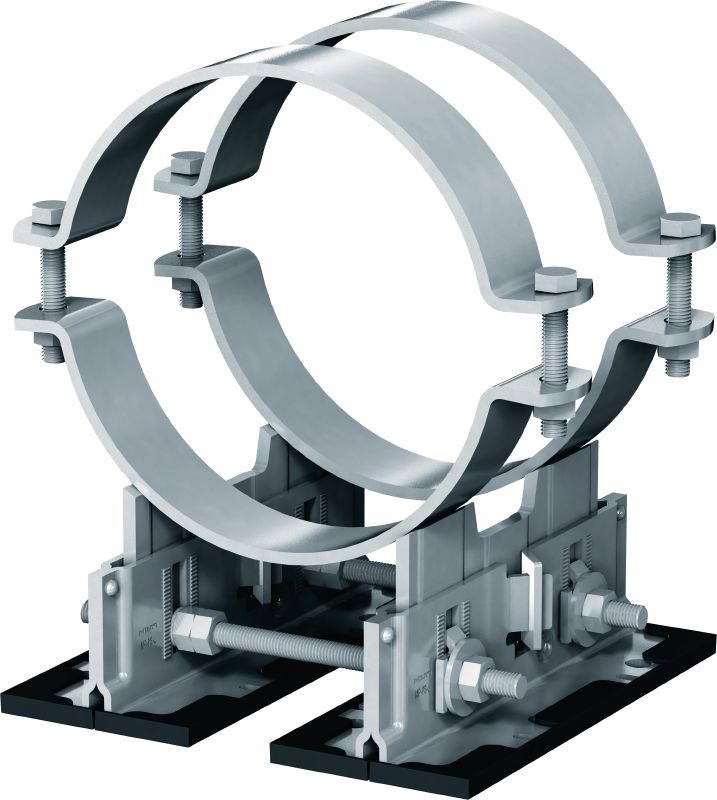

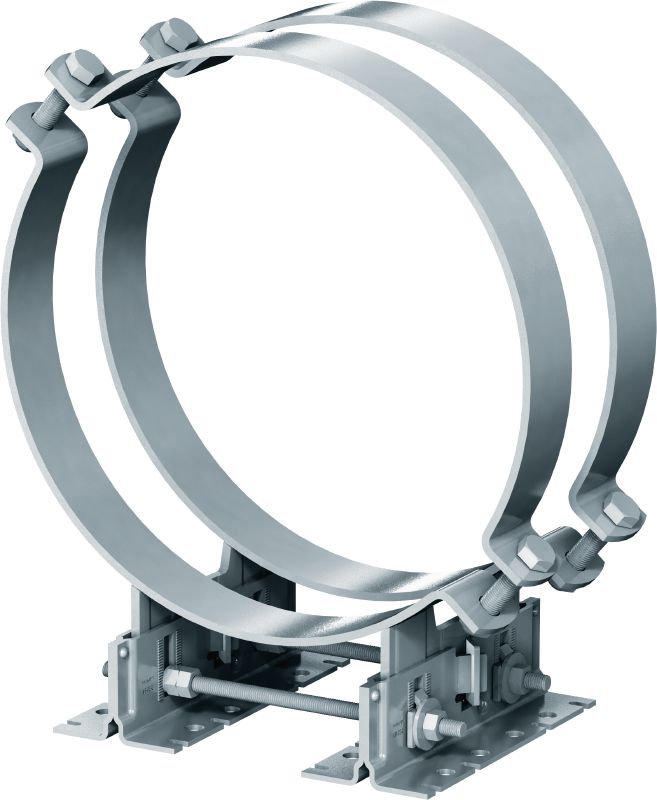

MP-PS L4-2 horizontal clamp, heavy double pipe shoe, low version

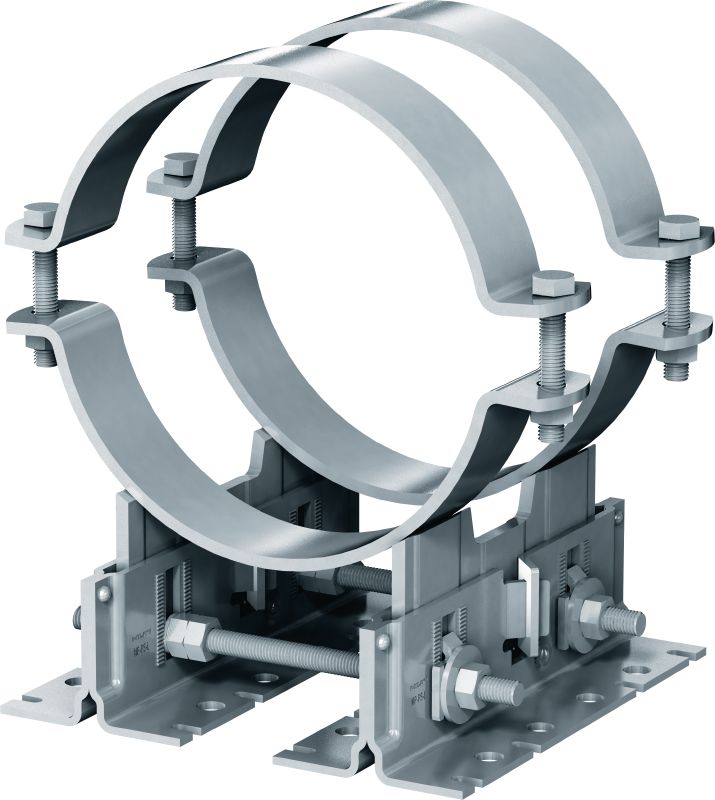

MP-PS L4-2 Heavy Double Pipe Shoe Low Version

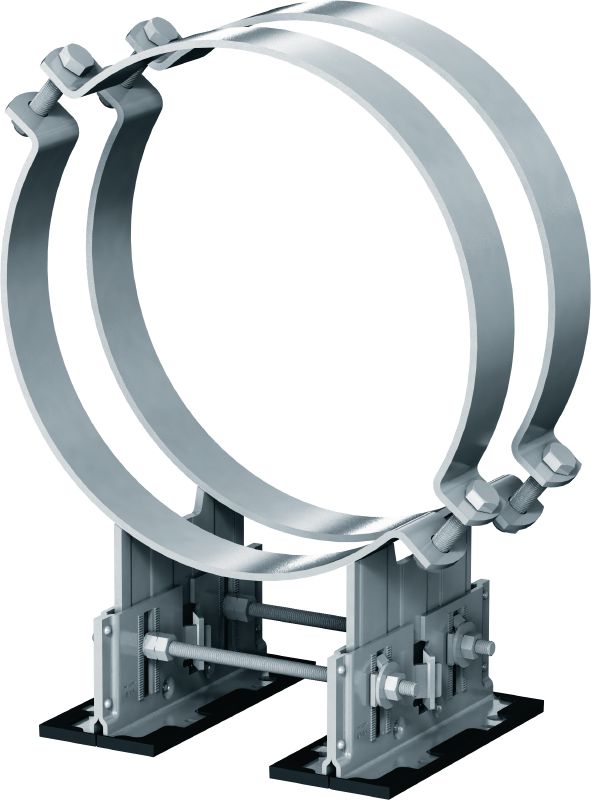

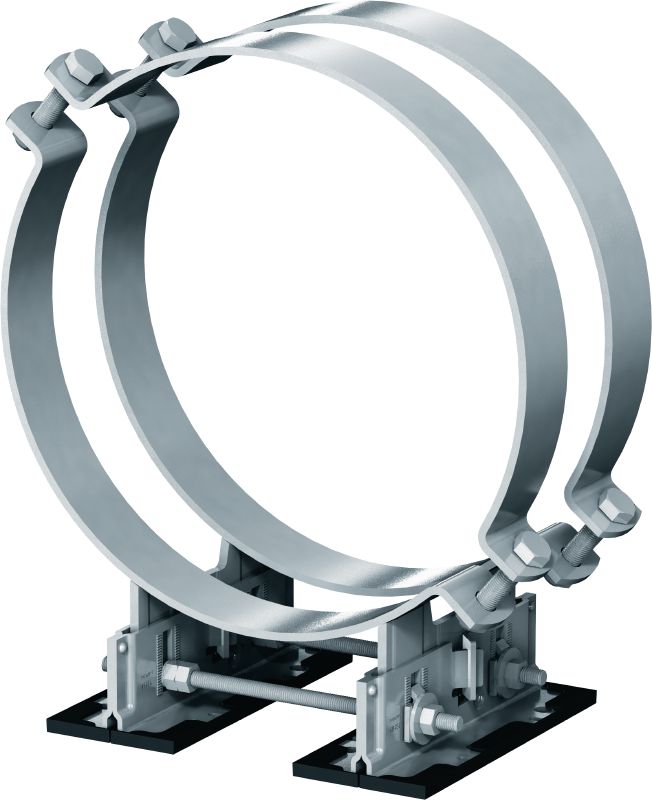

MP-PS heavy double pipe shoe horizontal pipe clamp

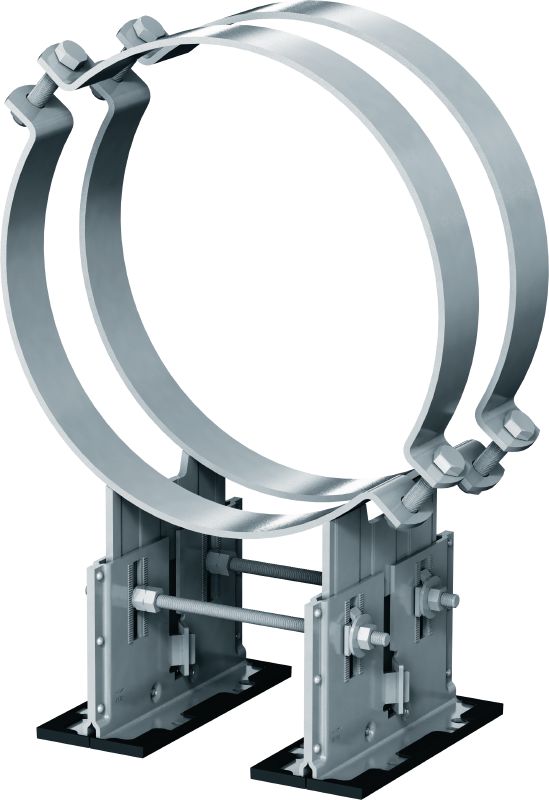

MP-PS heavy double pipe shoe horizontal pipe clamp, front view

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 217-610 mm (8" to 24")

  • Clamping Range - D: 217 - 227 mm
  • Nominal pipe size (imperial): 8 in
  • Nominal pipe size: 200 mm

Choose options

Clamping Range - D
  • 217 - 227 mm
Height above ground to base of pipe
  • 88.5 - 116 mm
Nominal pipe size (imperial)
  • 8 in
Nominal pipe size
  • 200 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
2,715.00 ILS
2,715.00 ILS
/
1 each

Technical Data

Details

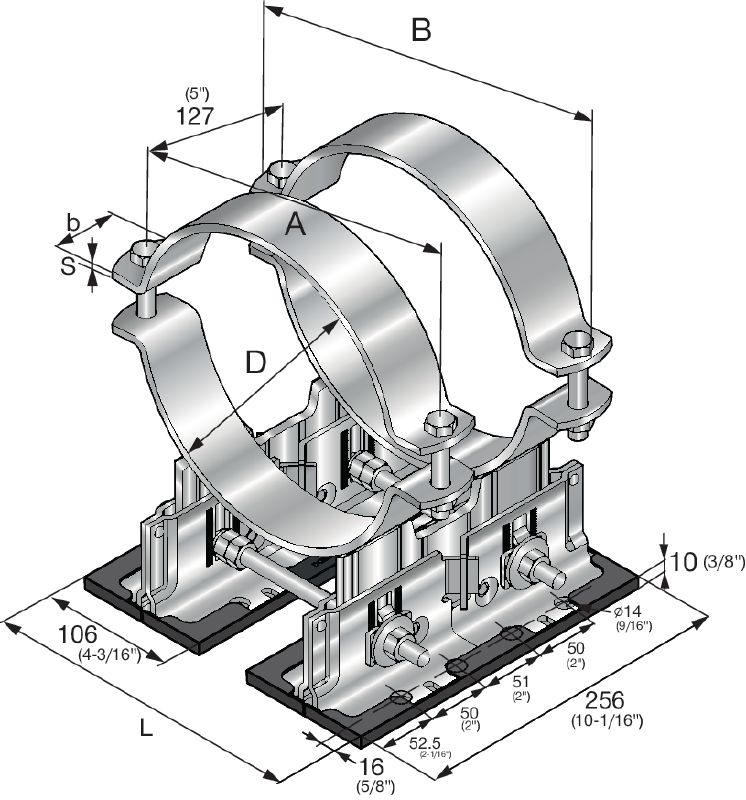

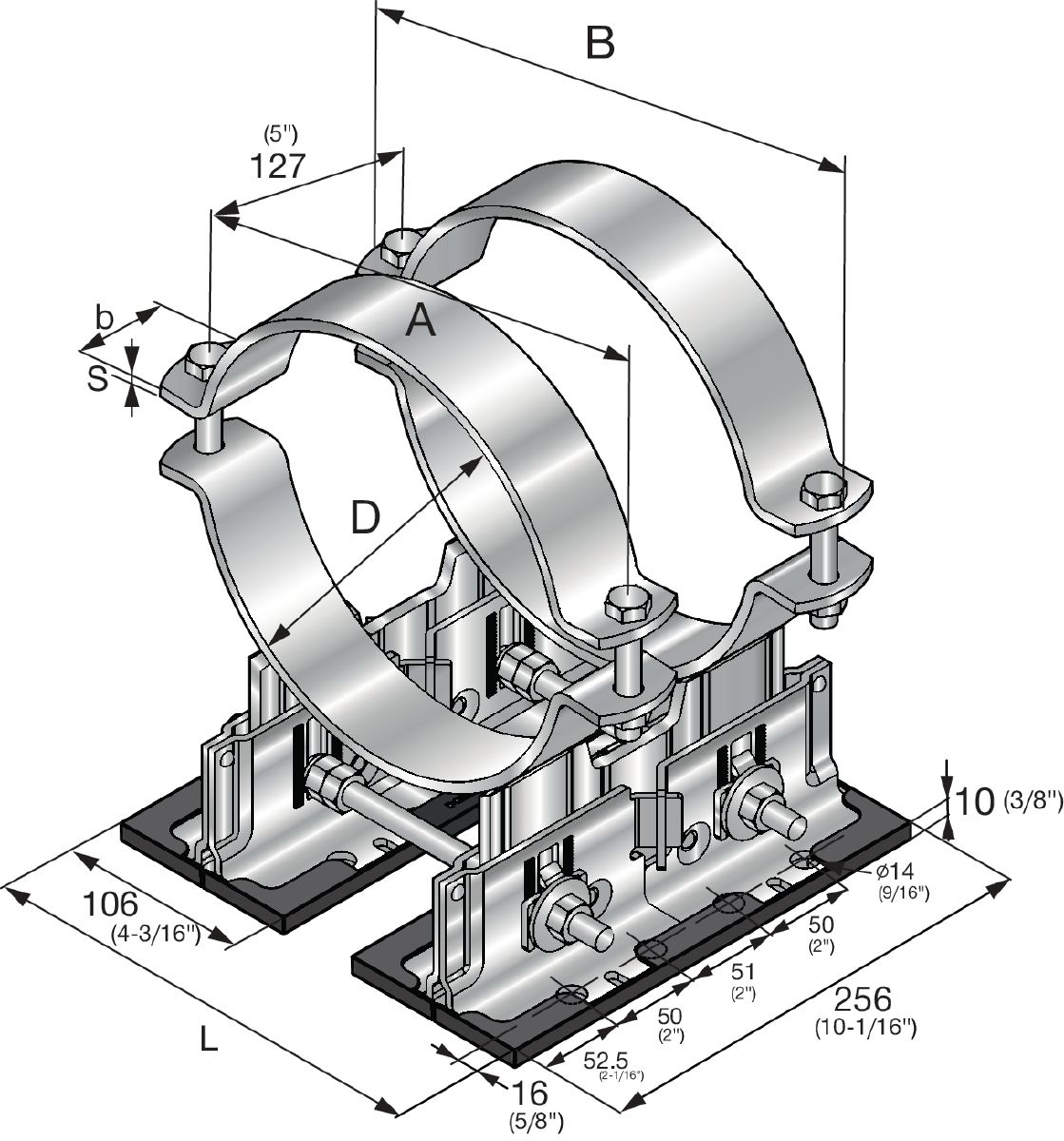

Technical illustrations
Clamping Range - D
217 - 227 mm
Nominal pipe size (imperial)
8 in
Nominal pipe size
200 mm
Fire resistance ( Yes/No)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Clamping screw
M12x70
Tightening torque
50 Nm
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm
Cross section width - b
50 mm
Cross Section Thickness - s
6 mm
Cross section width and thickness (b x s)
50 x 6 mm
Height - H
323 mm
Height above ground to base of pipe
88.5 - 116 mm
Height above ground to base of pipe min.
88.5 mm
Height above ground to base of pipe min. (conversion inch fractional)
3-1/2 in
Height above ground to base of pipe max.
116 mm
Height above ground to base of pipe max. (conversion inch fractional)
4-9/16 in

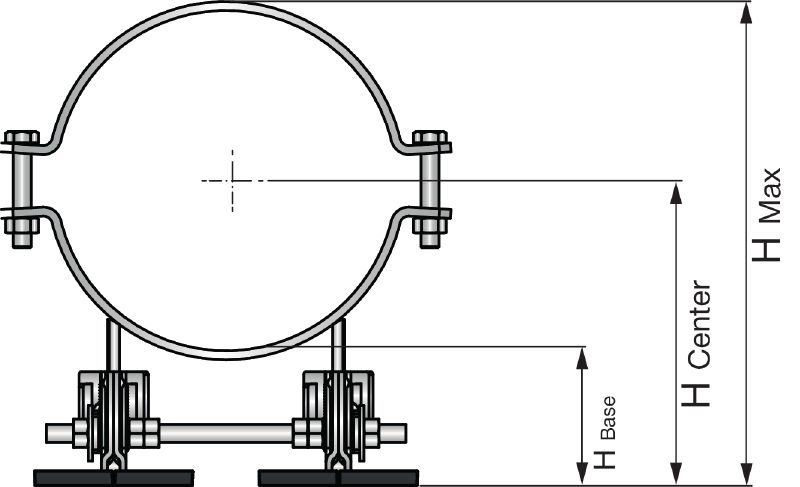

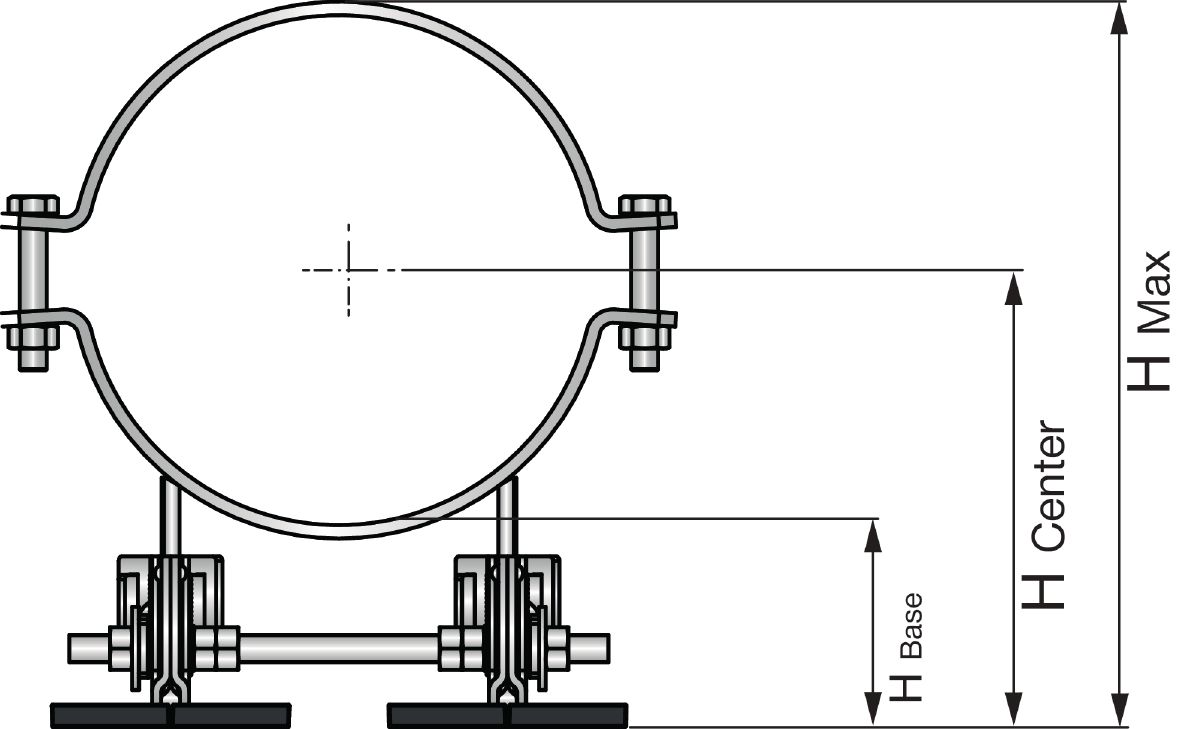

Height above ground to center of pipe
202 - 229.5 mm
Height above ground to center of pipe min.
202 mm
Height above ground to center of pipe min. (conversion inch fractional)
7-15/16 in
Height above ground to center of pipe max.
229.5 mm
Height above ground to center of pipe max. (conversion inch fractional)
9-1/16 in
Width - B
300 mm
Length
256 mm
Weight
9.88 kg
Additional product information
Friction coefficient - Sliding plate (PA66-GF30) on Zinc-Magnesium surface: 0.146, Friction coefficient - Sliding plate (PA66-GF30) on Hot Dip Galvanized surface: 0.129, PA66-GF30 vs Zn: 0.177

Documents

Documentation
Sustainability Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
  • Wider clamping range – suitable for various different pipes with or without additional inlays

Applications

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
