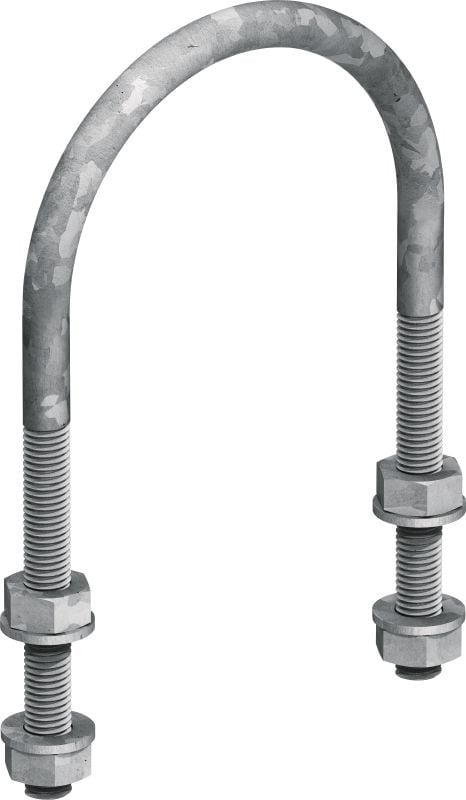

MP-UB OC U-Bolt (metric)
Outdoor coated (OC) U-bolt for universal piping applications
- Material composition: Q235 or better steel
- Surface finish: Outdoor Coated - HDG
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
standard
Choose options
Diameter - D
- 36.2 mm
- 50.8 mm
- 63.2 mm
- 91.8 mm
- 162.7 mm
- 222.8 mm
- 277.5 mm
- 526.3 mm
- 627.3 mm
Thread connection - M
- M8
- M10
- M12
- M24
Nominal pipe size (imperial)
- 1 in
- 1-1/2 in
- 2 in
- 3 in
- 8 in
- 10 in
- 20 in
- 24 in
Nominal pipe size
- 25 mm
- 40 mm
- 50 mm
- 80 mm
- 150 mm
- 200 mm
- 250 mm
- 500 mm
- 600 mm
Pack size
- 2 pc
- 10 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 457.00 ILS
Technical Data
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Product Class
Standard
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Small contact surface between U-bolt and pipe
- Approved for sprinkler applications under VdS
- Approved for sprinkler applications under UL / NFPA

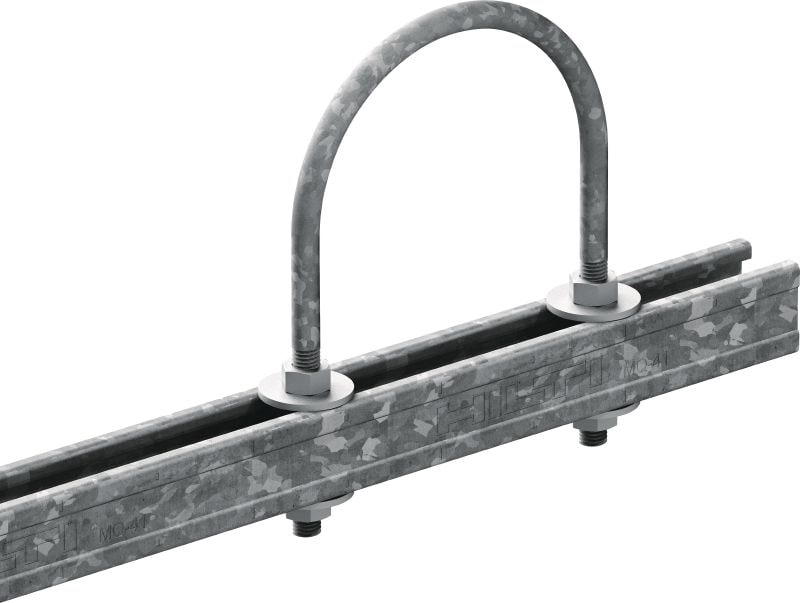

- Channel through bolting up to a diameter of 324 mm / 12"
Applications

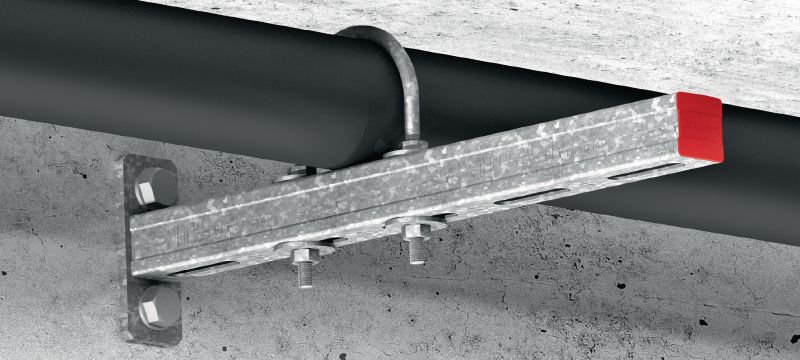

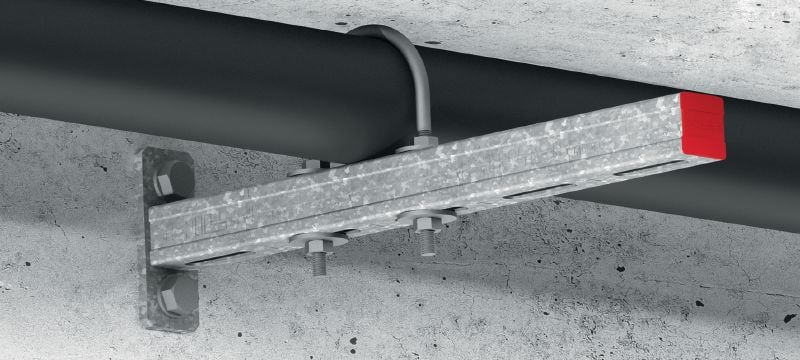

- Universal pipe fixation up to 24"
- Single-point fastening for sprinkler applications up to 324 mm / 12"
- Installation of non-insulated pipes in industrial environment
For approval or certificate information, please see individual items.
Related Products

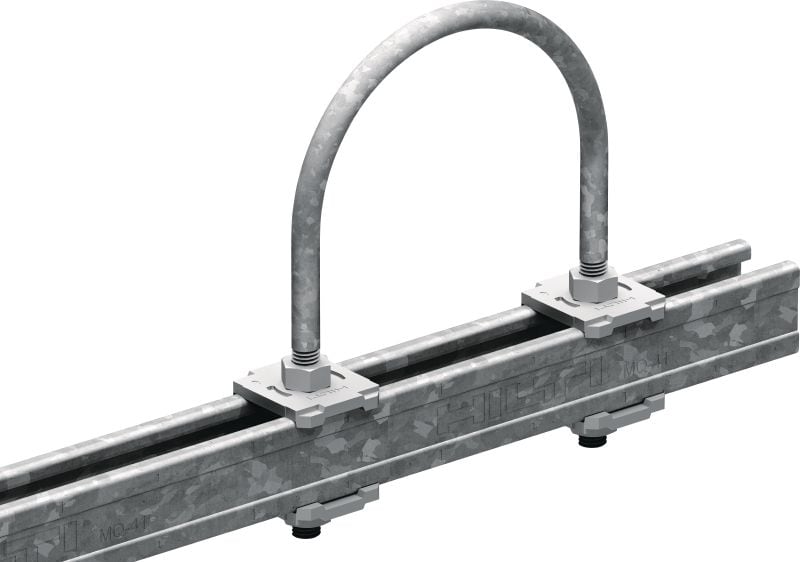

Crossover connector to be used with the MQ system in combination with U-bolts
