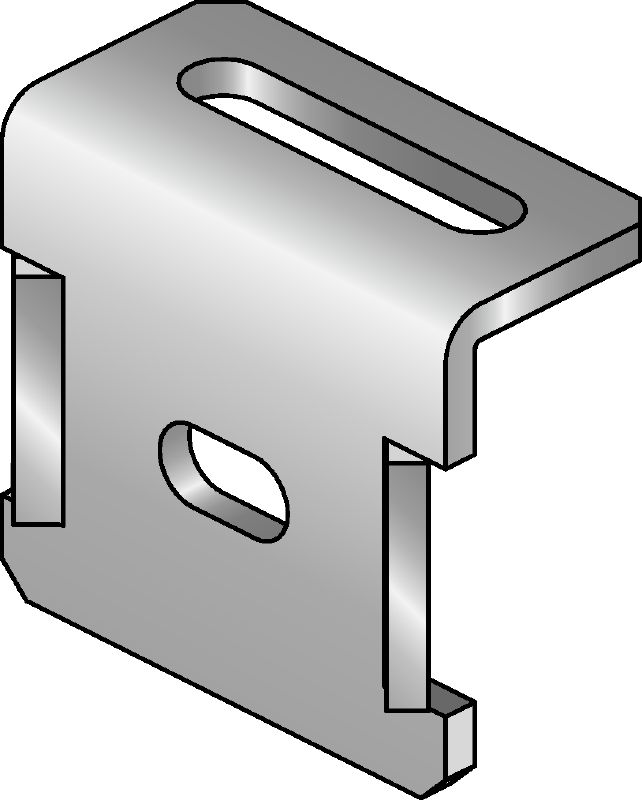

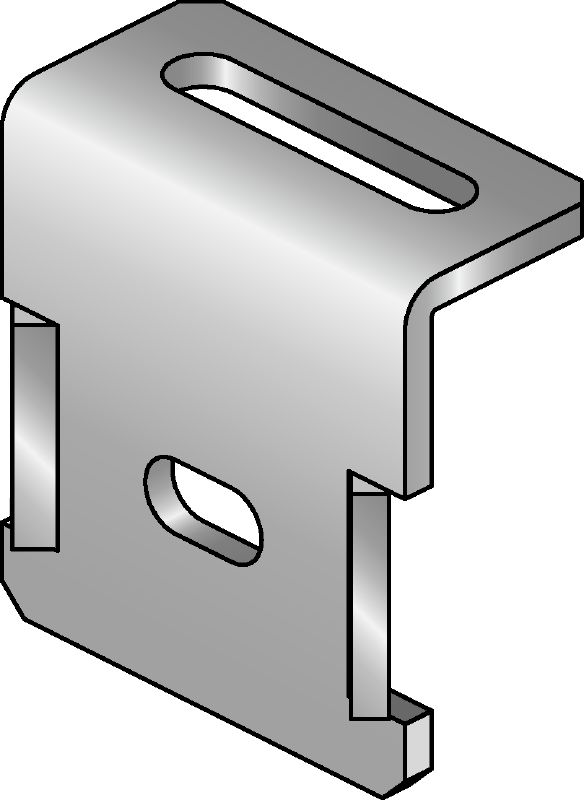

MIC-UB Connector
Hot-dip galvanized (HDG) connector for fastening U-bolts to MI girders
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Thread connection - M
- M12
- M16
Modular Girder Type
- 90
- 120
Pack size
- 6 pc
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 1,076.00 ILS
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Higher reliability fastening system for use with U-bolts
- Elongated holes – to simplify exact positioning
- Pipe position infinitely adjustable thanks to the elongated hole
- Positive engagement for efficient load transmission
- Keyed hold for optimum transmission of forces
Applications
- Fastening uninsulated pipes with U-bolts (not included)
- Fastening with U-bolts (not included)
For approval or certificate information, please see individual items.
